1
Engine displacement
autre
2
Year
1994
3
Trim
EURO CLASSIC TOURING - E942875
4
Parts Catalog

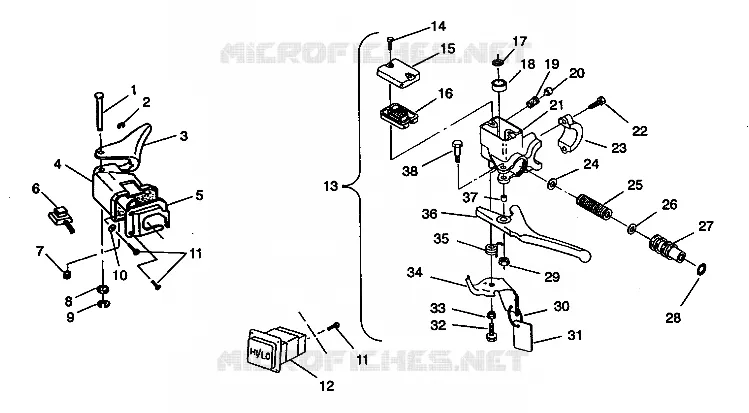

CONTROLS CLASSIC E942865 AND CLASSIC TOURING E942875 (49274027400012)
5
Parts Diagram
Parts Catalog
HOOD
by
COOLING SYSTEM CLASSIC E942865 AND CLASSIC TOURING E942875 (49274027400018)
CONTROLS CLASSIC E942865 AND CLASSIC TOURING E942875 (49274027400012)
1
RETAINING PIN
7661624
$23,09 Unit Price incl. VAT
2
RETAINING RING
7710503
$7,34 Unit Price incl. VAT
3
THROTTLE LEVER
5430652
9999999
Not Available
3
LEVER ASMHTR.STD 34MM
2010142
9999999
Not Available
3
LEVER ASMW/WARMER
2010094
9999999
Not Available
3
LEVER-THROTTLE
5430638
9999999
Not Available
4
BLOCK THROTTLE/BRAKE
5431265
5431592
$73,49 Unit Price incl. VAT
5
ADAPTER BLOCK
5430604
$26,24 Unit Price incl. VAT
6
SWITCH AUXILIARY SHUT-OFF
4110106
9999999
Not Available
7
SCREW SET
7512465
$7,34 Unit Price incl. VAT
8
WASHER
7555730
$7,34 Unit Price incl. VAT
9
RETAINING RING
7710401
$7,34 Unit Price incl. VAT
10
WASHER
7555746
7555904
$1,56 Unit Price incl. VAT
11
SCREW
7511848
$7,34 Unit Price incl. VAT
12
SWITCH; DIMMER
4110136
9999999
Not Available
13
MASTER CYL.ASM W/ST.GLASS Substituted by 2050056 (Incl.1-17)
2050058
Not Available
14
SCREW W/WASHER
7512050
9999999
Not Available
15
COVER MASTER CYL.
5630338
9999999
Not Available
16
MASTER CYLINDER GASKET
5410527
9999999
Not Available
17
WASHER; BAFFLE
1930662
9999999
Not Available
18
BAFFLE MASTER CYL.
1930673
9999999
Not Available
19
SEAL SIGHT GLASS
1930660
9999999
Not Available
20
GLASS SIGHT MASTER CYL.
1930710
Not Available
21
HSG.;MASTER CYL.
5130912
2050056
Not Available
22
BOLT SOCKET HEAD
7512290
$9,44 Unit Price incl. VAT
23
CLAMP MASTER CYL.
5630342
9999999
Not Available
24
WASHER
7555708
9999999
Not Available
25
COMPRESSION SPRING
7041203
9999999
Not Available
26
U-PACKING SEAL
5410164
9999999
Not Available
27
PISTON MASTER CYL.
5020520
9999999
Not Available
28
O-RING
5410163
$3,14 Unit Price incl. VAT
29
NUT
7542124
7542122
$2,09 Unit Price incl. VAT
30
STRAP PARK.BRAKE TAG
7080447
9999999
Not Available
31
TAG-PARK BRAKE WARNING [S99CM][FROM 5/18/2018]
5431389
Not Available
32
SCREW
7511866
$9,44 Unit Price incl. VAT
33
BUSHING PK.BRAKE LEVER
5020545
9999999
Not Available
34
LEVER PARK.BRAKE
5222669
9999999
Not Available
35
SPRING PK.BRAKE
7041229
9999999
Not Available
36
LEVER BRAKE
5630409
9999999
Not Available
37
BUSHING BRAKE LEVER
5332931
9999999
Not Available
38
BOLT BRAKE LEVER
7512287
9999999
Not Available

Find the detailed CONTROLS CLASSIC E942865 AND CLASSIC TOURING E942875 (49274027400012) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
