1
Engine displacement
500
2
Year
1992
3
Trim
500 SP EFI - 0920674
4
Parts Catalog
CYLINDER 500 SP/500 SKS (4921262126040A)
5
Parts Diagram
Parts Catalog
CRANKCASE 500 SP/500 SKS (4921262126039A)
by
PISTON AND CRANKSHAFT 500 SP/500 SKS (4921262126041A)
CYLINDER 500 SP/500 SKS (4921262126040A)
1
CYLINDER CPL.
3084330
9999999
Not Available
2
STUD
3083360
9999999
Not Available
3
STUD
3080016
9999999
Not Available
4
GASKET BASE
3083959
9999999
Not Available
5
FLANGE NUT
3082911
7547013
$3,14 Unit Price incl. VAT
6
NUT
3080285
9999999
Not Available
7
HEAD CYL.CPL.
3084331
9999999
Not Available
8
PIPE; WATER
3083452
9999999
Not Available
9
GASKET HEAD
3084332
9999999
Not Available
10
FLANGE NUT
3082910
9999999
Not Available
11
LOCK WASHER
3080530
9999999
Not Available
12
PLUG
3083044
9999999
Not Available
13
GASKET-ALUM
3082719
9999999
Not Available
14
SENSOR WATER TEMP
3084333
9999999
Not Available
15
NECK FILLER
3083398
9999999
Not Available
16
GASKET FILLER NECK
3083340
9999999
Not Available
17
BOLT FLANGE
3083361
9999999
Not Available
18
ADAPTERCPL LH
3084334
9999999
Not Available
19
SOCKET HEAD BOLT
3081330
9999999
Not Available
20
BAND ASM.
3084045
9999999
Not Available
21
PAN HEAD SCREW
3081497
9999999
Not Available
22
GASKET EXHAUST
3083770
9999999
Not Available
23
ADAPTER CPL. RH
3084335
Not Available
24
O-RING
3084229
9999999
Not Available
25
PIPE HEAD (Head)
3084390
Not Available
26
HOSE 1 WATER
3084337
Not Available
27
HOSE 2 WATER
3084338
Not Available
28
CLAMP
3084051
Not Available

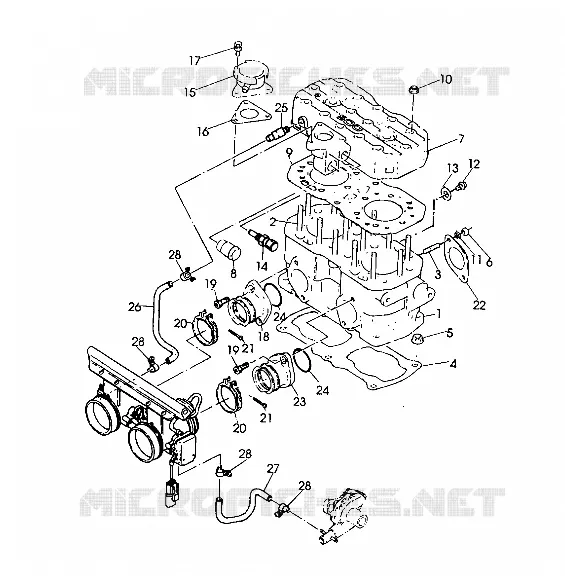

Find the detailed CYLINDER 500 SP/500 SKS (4921262126040A) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
