by
SUSPENSION, RAIL MOUNTING
1
2
3
4
5
5
6
6
6
6
7
7
8
9
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
11
12
13
14
15
16
17
18
19
1
RAIL TIP CAP
5452441
$26,24 Unit Price incl. VAT
2
SCR-TXTH-M6X1.0X25 8.8 ZPB
7520133
$6,29 Unit Price incl. VAT
3
WASHER
7556064
$9,44 Unit Price incl. VAT
4
NUT-M6X1.0 FLG-NYLOC-OLIVE D
7547339
$2,09 Unit Price incl. VAT
5
NUT-M5X0.8 8.8 HX/FL NYLOC
7547427
$6,29 Unit Price incl. VAT
6
WASHER-M5.3X14X1.2 ZOD
7556470
$4,19 Unit Price incl. VAT
7
SCR-M5X0.8X40 8.8 TR/TX ZOD
7518951
$6,29 Unit Price incl. VAT
8
HOLLOW TALL BUMPER
5415327
$27,29 Unit Price incl. VAT
9
LINER-LOW PROFILE BUMPER
5451787
$12,59 Unit Price incl. VAT
10
ASM-RAIL BSC COILVR155 LH3 ORG
1543529647
Not Available
10
ASM-RAIL BSC C-OVER 155 RH NAT
1543449309
Not Available
10
BASIC COIL-OVER RAIL ASM RHT V BLUE 155
1543449619
Not Available
10
ASM-RAIL BSC C-VER155 LH3 VBLU
1543529619
Not Available
10
BASIC COILOVER RAIL RHT ORG BRST 155
1543449647
Not Available
10
BASIC COIL-OVER RAIL ASM LEFT GS BLK 155
1543448067
Not Available
10
ASM-RAIL BSC C-OVER 155 LH RED
1543448293
Not Available
10
BASIC COILOVER RAIL LFT 3IN GS BLK 155
1543529067
Not Available
10
ASM-RAIL BSC C-OVER 155 LH NAT
1543448309
Not Available
10
ASM-RAIL BSC C-VER155 RH 3 VDB
1543530619
Not Available
10
BASIC COILOVER RAIL ASM RHT INDY RED 155
1543449293
Not Available
10
BASIC COILOVER RAIL RHT 3IN INDY RED 155
1543530293
Not Available
10
ASM-RAIL BSC C-OVER 155 RH BLK
1543449067
Not Available
10
ASM-RAIL BSC COLVR155 RH 3 ORG
1543530647
Not Available
10
BASIC COILOVER RAIL LFT 3IN INDY RED 155
1543529293
Not Available
10
ASM-RAIL BSC C-OVER155 LH LSQU
1543448630
Not Available
10
BASIC COILOVER RAIL RHT 3IN GS BLK 155
1543530067
Not Available
10
BASIC COILOVER RAIL ASM RHT LM SQZ 155
1543449630
Not Available
10
BASIC COIL-OVER RAIL ASM LEFT V BLUE 155
1543448619
Not Available
10
BASIC RAIL ASSEMBLY; LEFT; ORANGE BURST
1543448647
Not Available
11
KIT-HOLTZ SCRATCHER AXYS
2882028
2890644
$146,99 Unit Price incl. VAT
12
BUMPER-JOUNCE REAR;COIL-OVER
5522056
$26,24 Unit Price incl. VAT
13
BUMPER LINER
5432946
$19,94 Unit Price incl. VAT
14
HEX SCREW; 10 MM X 1.5 MM X 100 MM
7520083
$23,09 Unit Price incl. VAT
15
HEX NUT; 10 MM X 1.5 MM
7547707
$7,34 Unit Price incl. VAT
16
BLOCK-IDLER BOLT ADJ METRIC
5139435
$26,24 Unit Price incl. VAT
17
RIVET
7621501
$4,19 Unit Price incl. VAT
18
HI-FAX .45/74 LO-PRFL BLK (2)
5522144070
Not Available
19
SCR-M6X1.0X20 TR/TX/TAP ZOD
7518976
$6,29 Unit Price incl. VAT

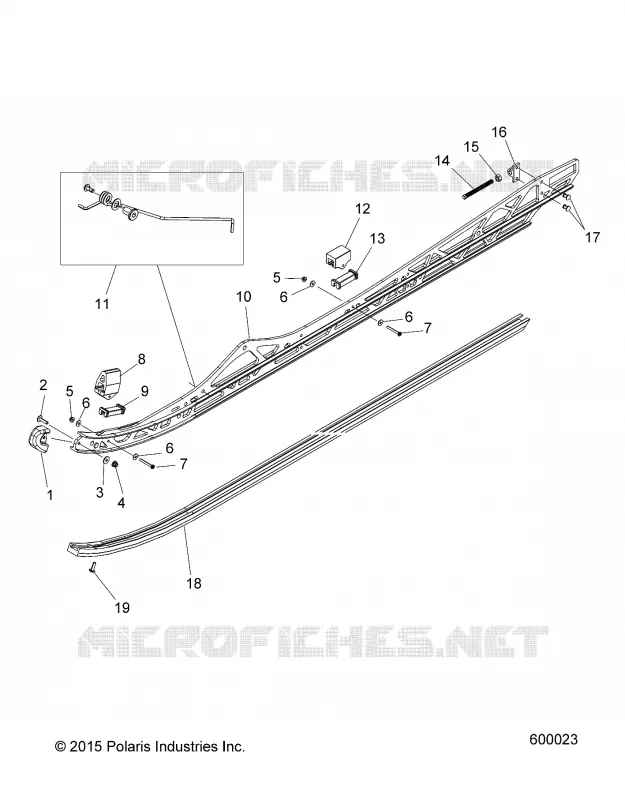

Find the detailed SUSPENSION, RAIL MOUNTING POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.

List of compatible models

800 AXYS PRO RMK 155 800 2017
