1
Engine displacement
600
2
Year
1995
3
Trim
600 XCR - 0951676
4
Parts Catalog
HOOD
5
Parts Diagram
Parts Catalog
HOOD ASSEMBLY 600 XCR 0951676 (4929132913A010)
by
TORSION BAR ASSEMBLY 600 XCR 0951676 (4929132913B004)
HOOD
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
16
16
17
18
19
20
21
22
22
22
22
1
DECAL TRACK/SEAT(CPSC) (Silver)
7074255
Not Available
2
DECAL RH TUNNEL
7074534
Not Available
3
DECAL RH HD.TOP
7074405
Not Available
4
DECAL RH #LT WT TRIPLE 600#
7074671
Not Available
5
DECAL RH HD.SIDE
7074407
Not Available
6
DECAL LH IFS
7074536
Not Available
7
DECAL #POLARIS# N#CONE
7074410
Not Available
8
DECAL RH N#CONE
7074409
Not Available
9
DECAL LH HD.TOP
7074404
Not Available
10
DECAL
8330319122
Not Available
11
DECAL LH TUNNEL
7074533
Not Available
12
DECAL LH HD.SIDE
7074406
Not Available
13
DECAL RH IFS
7074537
Not Available
14
DECAL LH #LT WT TRIPLE 600#
7074670
Not Available
15
DECAL LH N#CONE
7074408
Not Available
16
DECAL
8330316122
Not Available
17
DECAL #XCR# CTR.HD.
7074403
Not Available
18
DECAL#NO PASS#GR#WARN.
7073406
Not Available
19
DECAL OPER.CAUT(FR)SILVER [No Longer Available]
7072877
Not Available
20
DECAL OPER.CAUT SILVER [No Longer Available]
7072875
Not Available
21
LOGO #40 YEARS#
7074695
Not Available
22
KIT DECAL 95 600 XCR
2200559
Not Available
22
DECAL SPEC.
7074737
Not Available

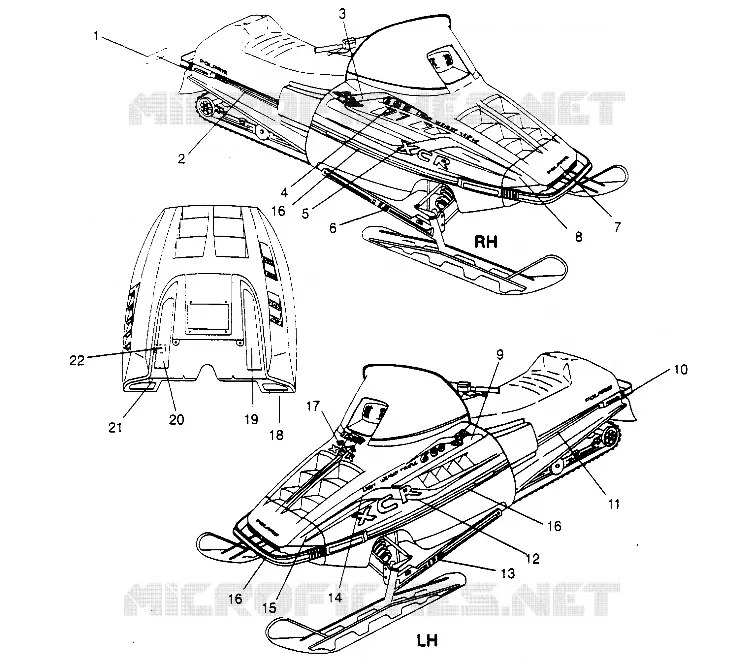

Find the detailed HOOD POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
