1
SEAT ASM (2-UP) (Incl. 2)
2681428
Not Available
2
COVER SEAT
2681429
9999999
Not Available
3
SEAT RISER ASM. Substituted by 1011773-067
1011773
Not Available
4
FOAM FILLER
5810201
Not Available
5
CARRIAGE BOLT
7512193
$4,19 Unit Price incl. VAT
6
HINGE FLAT
7020023
9999999
Not Available
7
RETAINER CABLE
7080401
Not Available
8
NYLOK NUT
7542122
$2,09 Unit Price incl. VAT
9
WASHER(10)
7558221
$4,19 Unit Price incl. VAT
10
GROMMET-GAS TANK
5430575
9999999
Not Available
11
BRKT.
5220542
5220542-067
Not Available
12
BOX-TOOL
5430716
9999999
Not Available
13
GASKET-GAS CAP
5810142
5810513
$15,74 Unit Price incl. VAT
14
GAUGE GAS
2511149
2511246
$83,99 Unit Price incl. VAT
16
FOAM - TOOL BOX
5810266
9999999
Not Available
18
TANK; GAS
2511186
9999999
Not Available
19
FUELPICKUP W/STRAINER
7052037
7052301
$26,24 Unit Price incl. VAT
20
FITTING OUTLET
7052023
$36,74 Unit Price incl. VAT
21
KIT-TANK VENT
2200190
9990000
Not Available
22
VENT FITTING;TANK
5430669
9999999
Not Available
23
COVER TOOL BOX
5430719
9999999
Not Available
24
RIVET
7621457
$2,09 Unit Price incl. VAT
25
DECAL(47.5##)TUNNEL [No Longer Available]
7072078
Not Available
26
POP RIVET
7621402
$2,09 Unit Price incl. VAT
27
FOOTREST ASM LH
2200311
Not Available
27
FOOTREST ASM RH
2200312
Not Available
28
RIVET
7621452
9999999
Not Available
29
POP RIVET
7621330
$2,09 Unit Price incl. VAT
30
CLIP WIRING
4020035
9999999
Not Available
32
WASHER 13/64X1/2X18GA FL-Y (10
7558212
$1,56 Unit Price incl. VAT
33
RIVET
7621429
$2,09 Unit Price incl. VAT
34
CLIP; BELT
5220817
5222769
$15,74 Unit Price incl. VAT
35
GUARD CLUTCH
5230118
5240965
Not Available
36
PIN-CLUTCH COVER
7080216
7080698
$17,84 Unit Price incl. VAT
37
HSG. TUNNEL RH [No Longer Available]
5222392
Not Available
37
HSG. TUNNEL LH
5222391
Not Available
39
RIVET
7661818
9999999
Not Available
40
LINE FUEL (FT.)
8450003
8450003-1525
$136,49 Unit Price incl. VAT
41
BRKT TUNNEL SPACER [No Longer Available]
5222290
Not Available
42
DECAL ENG/CLUTCH [No Longer Available]
7072871
Not Available
43
PLATE; TUNNEL
5211220
9999999
Not Available
44
RIVET(50)
7621332
$2,09 Unit Price incl. VAT
45
RIVET; (MONOBOLT)
7661620
7661637
$2,09 Unit Price incl. VAT
46
EDGE TRIM - BLACK
8360012
9999999
Not Available
47
PROTECTOR; RISER
5410561
9999999
Not Available
48
DECAL TUNNEL STRIPE [No Longer Available]
7072776
Not Available
49
SPACER (500 Classic Only)
5332896
Not Available
50
PALNUT(10)
7670031
9999999
Not Available
51
BRKT R.SUSP LH MTG. Substituted by 1011749-067
1011666
Not Available
51
BRKT R.SUSP RH MTG. Substituted by 1011750-067
1011667
Not Available
52
BULKHEAD WIDETRAK
1011752
9999999
Not Available
53
BRACKET
5221932
9999999
Not Available
54
SUPPORT MUFFLER Substituted by 1011601-067
1011601
Not Available
55
BRKT HINGE
5222388
Not Available
56
DESC NOT_AVAILABLE
5222119
Not Available
56
BRACKET-CLUTCH GUARD [No Longer Available]
5223798
Not Available
56
PLATETUNNELLH
5222351
5222351-067
Not Available
56
PLATETUNNELRH
5222352
5222352-067
Not Available

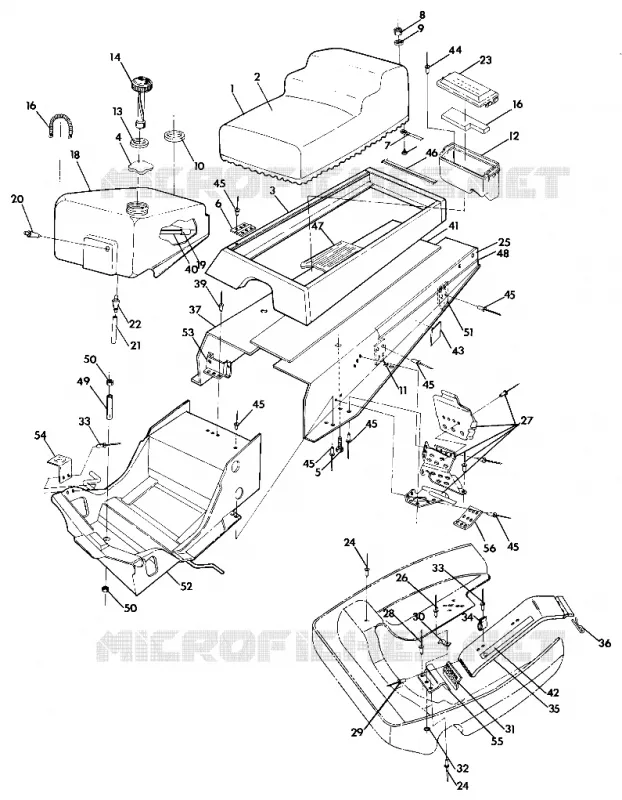

Find the detailed CHASSIS AND SEAT UPDATED 2/90 (4917871787001A) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
