1
Engine displacement
550
2
Year
2003
3
Trim
550 SUPERSPORT EDGE
4
Parts Catalog
RAIL MOUNTING (EDGE)
5
Parts Diagram
Parts Catalog
BRAKE
by
CHAINCASE (REVERSE MODELS)
RAIL MOUNTING (EDGE)
1
1
1
2
3
4
4
4
5
5
6
7
7
7
7
8
9
9
10
11
11
12
13
14
15
16
17
18
19
20
21
22
23
23
24
24
25
25
26
26
27
27
28
28
29
30
30
31
32
33
34
35
1
1
1
2
3
4
4
4
5
5
6
7
7
7
7
8
9
9
10
11
11
12
13
14
15
16
17
18
19
20
21
22
23
23
24
24
25
25
26
26
27
27
28
28
29
30
30
31
32
33
34
35
1
WHEEL SCROLL ASSEMBLY; 5.35; INDY BLUE
1590275312
Not Available
2
RETAINING RING
7718407
$9,44 Unit Price incl. VAT
3
BEARING
3514303
$20,99 Unit Price incl. VAT
4
NUT NYLOK 10-24 Y
7541925
$1,56 Unit Price incl. VAT
5
WASHER
7555792
$9,44 Unit Price incl. VAT
6
RAIL TIP CAP
5434374
9999999
Not Available
7
WASHER FLAT
7555783
$7,34 Unit Price incl. VAT
8
BUMPER JOUNCE FRONT
5521499
$16,79 Unit Price incl. VAT
9
NYLOK NUT
7542324
$1,56 Unit Price incl. VAT
10
RIVET(10)
7661845
$2,09 Unit Price incl. VAT
11
NYLOCK NUT
7542439
$2,09 Unit Price incl. VAT
12
BRKT RAIL REINF
5244677
9999999
Not Available
13
BUMPER LINER
5432946
$19,94 Unit Price incl. VAT
14
JOUNCE BUMPER; REAR
5521498
$16,79 Unit Price incl. VAT
15
BOLT(10)
7515537
$15,74 Unit Price incl. VAT
16
BUMPER MOUNT
5131113
$52,49 Unit Price incl. VAT
17
PIVOT ARM BUMPER
5410925
$26,24 Unit Price incl. VAT
18
SPACER 1.00X.390X.105
5244371
9999999
Not Available
19
BLOCK IDLER BOLT ADJ 7/16
5132444
9999999
Not Available
20
RIVET
7621501
$4,19 Unit Price incl. VAT
21
NUT-7/16-14
7547156
$17,84 Unit Price incl. VAT
22
SCR 7/16-14X3 3/4XHD
7517773
$41,99 Unit Price incl. VAT
23
ASM-RAIL 121 LH
1541755
9999999
Not Available
23
ASM-RAIL 121 RH
1541756
9999999
Not Available
24
SCREW
7510504
$10,49 Unit Price incl. VAT
25
WHEEL MOUNT BLOCK; LIGHTWEIGHT
5631065
9999999
Not Available
26
SCREW
7515346
$10,49 Unit Price incl. VAT
27
WASHER-SPRING CON 5/16X.090-Y
7556179
$11,54 Unit Price incl. VAT
28
BOLT
7515317
$9,44 Unit Price incl. VAT
29
BOLT
7515438
$9,44 Unit Price incl. VAT
30
WASHER
7555983
7555893
$1,56 Unit Price incl. VAT
31
SPACER .407 X .625 X 1.33
5333948
$11,54 Unit Price incl. VAT
32
SQUARE SPRING ROLLER
5433959
9999999
Not Available
33
SLIDER WHITE XL
5521528
5521571
$68,24 Unit Price incl. VAT
34
SCREW
7511975
9999999
Not Available
35
SCREW
7515199
$2,09 Unit Price incl. VAT

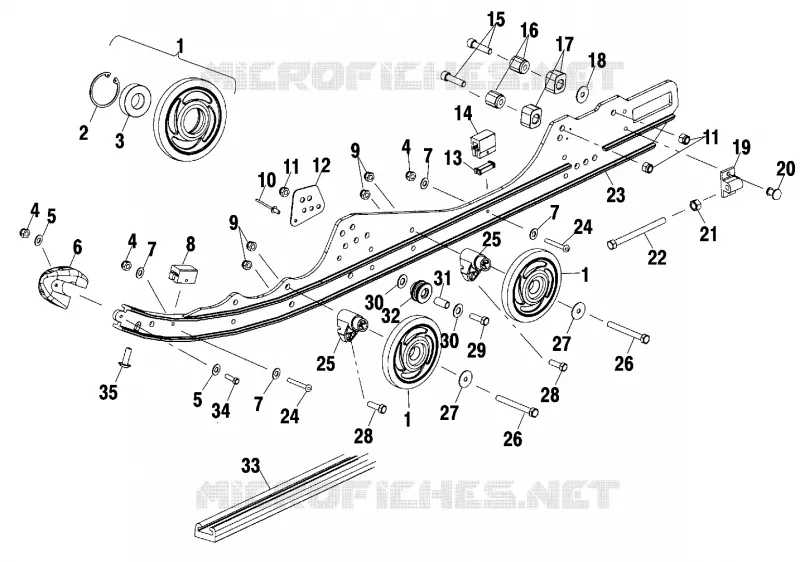

Find the detailed RAIL MOUNTING (EDGE) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
