1
Engine displacement
700
2
Year
1997
3
Trim
SL 700 - B974071
4
Parts Catalog
DECALS SL 700 B974071, INTL. SL 700 I974071, SL 700 DELUXE B974072 AND INTL (4940874087A008)
5
Parts Diagram
Parts Catalog
HULL BODY SL 700 B974071, Intl. SL 700 I974071, SL 700 Deluxe B974072 a (4940874087A007)
by
FRONT STORAGE COMPARTMENT SL 700 B974071, INTL. SL 700 I974071 AND SL 700 D (4940874087A009)
DECALS SL 700 B974071, INTL. SL 700 I974071, SL 700 DELUXE B974072 AND INTL (4940874087A008)
-
KIT DECAL 97 SL700 DLX
2200963
9999999
Not Available
-
KIT DECAL 97 SL700 STD (Incl. 7 9-19)
2200962
Not Available
1
DECAL PWC LOGO FRONT
7076291
Not Available
2
DECAL BOW
7076282
9999999
Not Available
2
Kit Decal Application Solution (For Seat Decals)
8370086
Not Available
3
DECAL POLARIS WATERCRAFT
7076570
9999999
Not Available
4
DECAL LH COMP.DOOR
7076283
9999999
Not Available
4
DECAL RH COMP.DOOR
7076284
9999999
Not Available
5
DECAL RH LION HEAD
7076286
9999999
Not Available
5
DECAL LH LION HEAD
7076285
9999999
Not Available
6
DECAL;FIRE EXTINGUISHER
7073467
9999999
Not Available
7
DECAL DASH WARN.
7076659
9999999
Not Available
7
DECAL DASH WARN. (SL 900)
7076621
Not Available
8
DECAL SEAT POLARIS PWC
7076292
9999999
Not Available
9
DECAL R.SAFETY/WARN.
7073415
Not Available
10
DECALCAPSIZE CAUTION
7073865
9999999
Not Available
11
DECALPOLARIS RUBRAIL
7076289
9999999
Not Available
12
DECAL RH SIDE WALL
7076288
9999999
Not Available
12
DECAL LH SIDE WALL
7076287
9999999
Not Available
13
DECALSL 700RUBRAIL
7076290
9999999
Not Available
14
DECAL LH LIONHEAD
7076296
9999999
Not Available
14
DECAL RH LIONHEAD
7076297
9999999
Not Available
15
DECAL LH COMP.DOOR (Dlx)
7076294
Not Available
15
DECAL RH COMP.DOOR
7076295
9999999
Not Available
16
DECAL BOW
7076293
9999999
Not Available
17
DECAL WARN.REFUEL.
7076624
9999999
Not Available
18
DECAL;FUEL SHUTOFF
7074639
9999999
Not Available
19
DECAL LH TOP RUBRAIL (Dlx)
7076302
Not Available
19
DECAL RH TOP RUBRAIL
7076303
9999999
Not Available
20
DECAL#SL 700#
7076301
Not Available
21
DECAL LH SIDEWALL
7076298
9999999
Not Available
21
DECAL RH SIDEWALL
7076299
9999999
Not Available

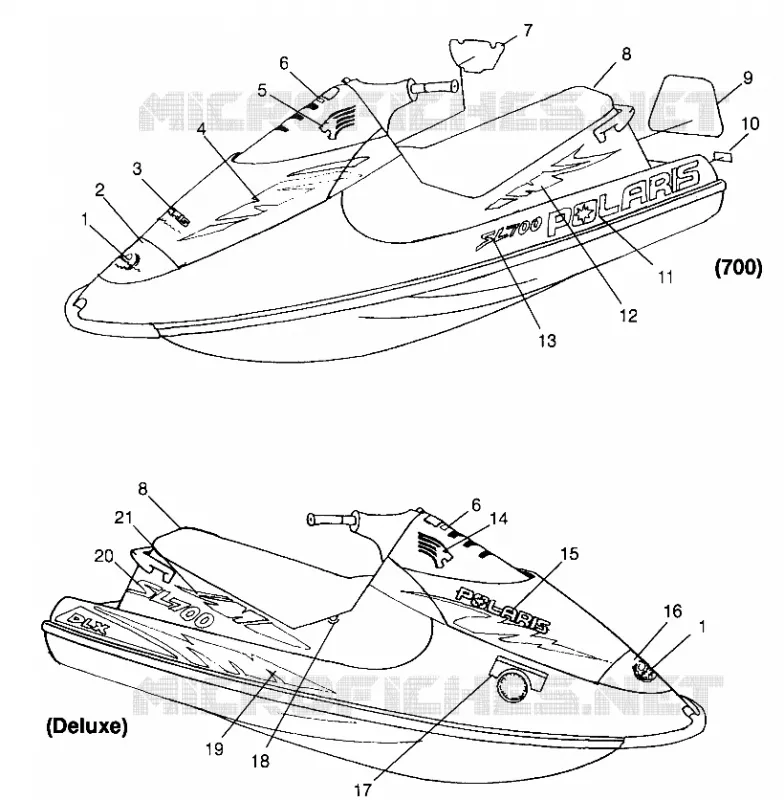

Find the detailed DECALS SL 700 B974071, INTL. SL 700 I974071, SL 700 DELUXE B974072 AND INTL (4940874087A008) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
