Parts Diagram
Parts Catalog
BATTERY
by
ECU / REGULATOR / COIL
ELECTRICAL, INSTRUMENTS & CONTROLS
1
2
3
4
5
6
7
8
9
1
GUAGE ASSEMBLY
3280863
3286943
$755,99 Unit Price incl. VAT
2
4 POSITION KEY SWITCH
4016058
4081559
$89,24 Unit Price incl. VAT
3
12V OUTLET
4012393
$68,24 Unit Price incl. VAT
4
HEADLIGHT SWITCH
4014069
$167,99 Unit Price incl. VAT
5
ALL WHEEL DRIVE (AWD) SWITCH
4014673
$104,99 Unit Price incl. VAT
6
GAUGE BEZEL; GLOSS BLACK
5452199070
Not Available
7
GAUGE MOUNT BRACKET
5260981
$62,99 Unit Price incl. VAT
8
SCR-TORX BTNHD;M6X12
7518330
$9,44 Unit Price incl. VAT
9
BOLT M6 X 1.0 X 20
7518529
$2,09 Unit Price incl. VAT

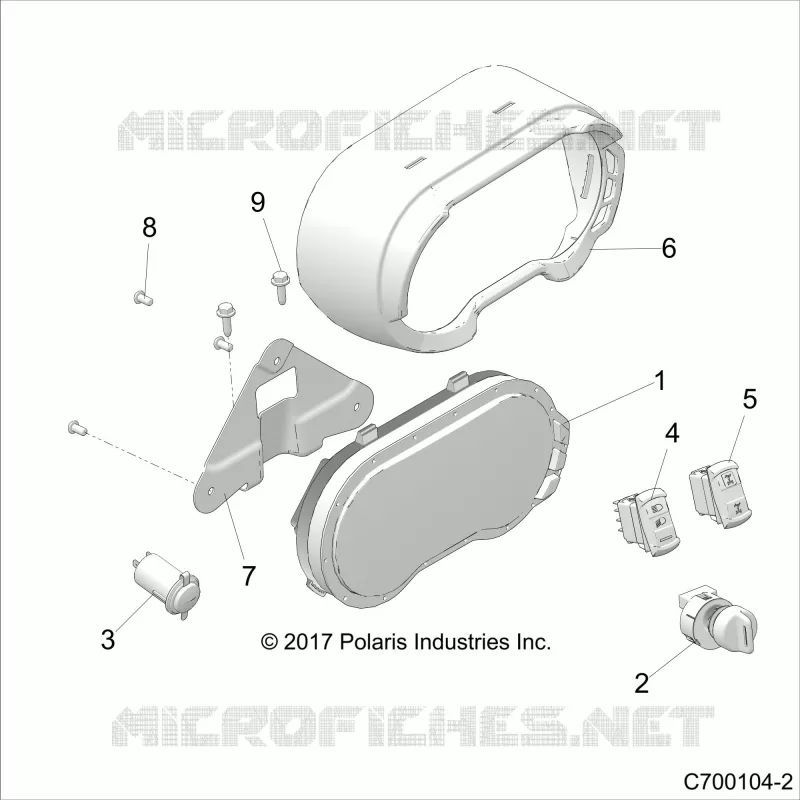

Find the detailed ELECTRICAL, INSTRUMENTS & CONTROLS POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
