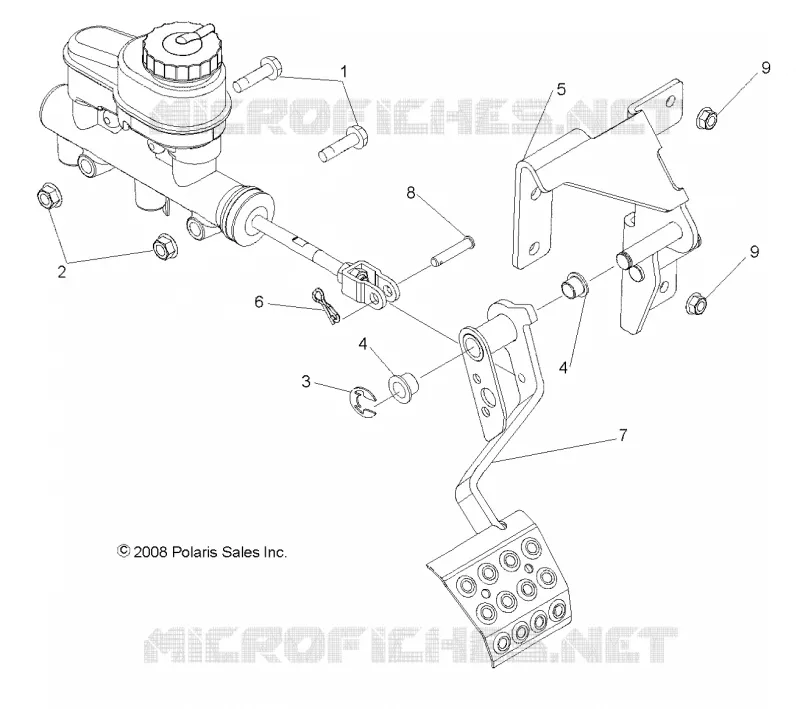

Find the detailed BRAKES, PEDAL AND MASTER CYLINDER MOUNTING POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
RANGER 4X4 500 EFI - R10TH50AG/AR
Model : RANGER 4X4 500 EFI
Engine capacity : 500
Year : 2010
