1
CYLINDER (Incl. 2 3 8)
3083695
Not Available
2
STUD
3080283
9999999
Not Available
3
STUD
3080016
9999999
Not Available
4
GASKET-CYL
3083081
Not Available
4
GASKET BASE
3084025
9999999
Not Available
5
NUT
3080047
7547013
$3,14 Unit Price incl. VAT
6
WASHER; SPRING(10)
3080281
9999999
Not Available
7
WASHER(10)
3080356
9999999
Not Available
8
VALVE CHECK
3083337
7051020
$68,24 Unit Price incl. VAT
9
HEAD CYLINDER
3083707
Not Available
10
GASKET HEAD
3083768
9999999
Not Available
10
GASKET HEAD
3084015
9999999
Not Available
11
NUT(10)
3080119
9999999
Not Available
12
NUT
3083541
9999999
Not Available
13
LOCK WASHER
3080530
9999999
Not Available
14
WASHER(10)
3080142
9999999
Not Available
15
GASKET COMPL. (EXHAUST) Substituted by 3083770
3082068
Not Available
15
GASKET EXHAUST
3084026
9999999
Not Available
16
NUT
3080285
9999999
Not Available
18
MOUNT; CARBURETOR
3083306
9999999
Not Available
19
ASM-ADAPTER BAND
3083166
7082340
$36,74 Unit Price incl. VAT
20
SCREW; PAN HEAD
3083086
9999999
Not Available
21
SOCKET HEAD BOLT
3081330
9999999
Not Available
21
GASKET INTAKE
3084027
9999999
Not Available

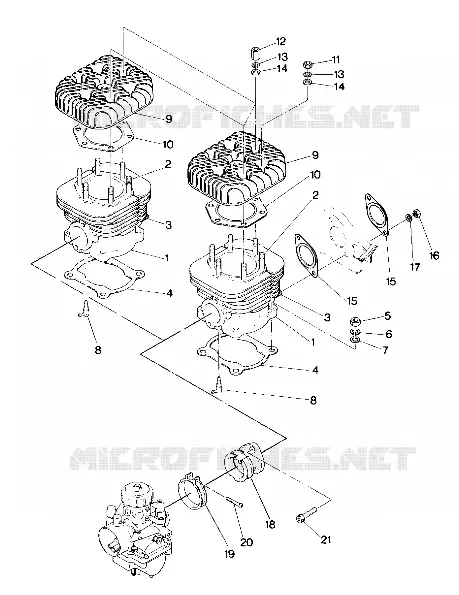

Find the detailed CYLINDER TRAIL (4916831683026A) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
