ELECTRICAL, IGNITION SYSTEM for POLARIS 850 INDY XC 137 from 2023

ELECTRICAL, JUMPER WIRES

ELECTRICAL, IGNITION COIL/SPARK PLUGS

ELECTRICAL, IGNITION SYSTEM

1

NUT-FLANGE M14X1.50 -D

7518299

$9,44 Unit Price incl. VAT

2

WRENCH-8MMX10MM OPEN END

Not Available

3

HEX FLANGE SCREW; 6 MM X 1.0 MM X 12 MM

7519145

$7,34 Unit Price incl. VAT

4

PULLEY-STARTER RECOIL

3023638

$99,74 Unit Price incl. VAT

5

FLYWHEEL-PBR 21T-3T

4019967

$633,14 Unit Price incl. VAT

6

SCR-M6X1.0X32 12.9 TORX

7520893

$15,74 Unit Price incl. VAT

7

STATOR

4017454

$808,49 Unit Price incl. VAT

8

RETAINER-STATOR WIRE

5455085

$23,09 Unit Price incl. VAT

9

SCR-M5X0.8X10 SOC/CP-D

7517847

$5,76 Unit Price incl. VAT

10

WOODRUFF KEY

7721117

$47,24 Unit Price incl. VAT

11

RETAINER-STATOR WIRE

5455321

$23,09 Unit Price incl. VAT

12

SCR-HXFLGHD M6X25 0600086

7517751

$13,64 Unit Price incl. VAT

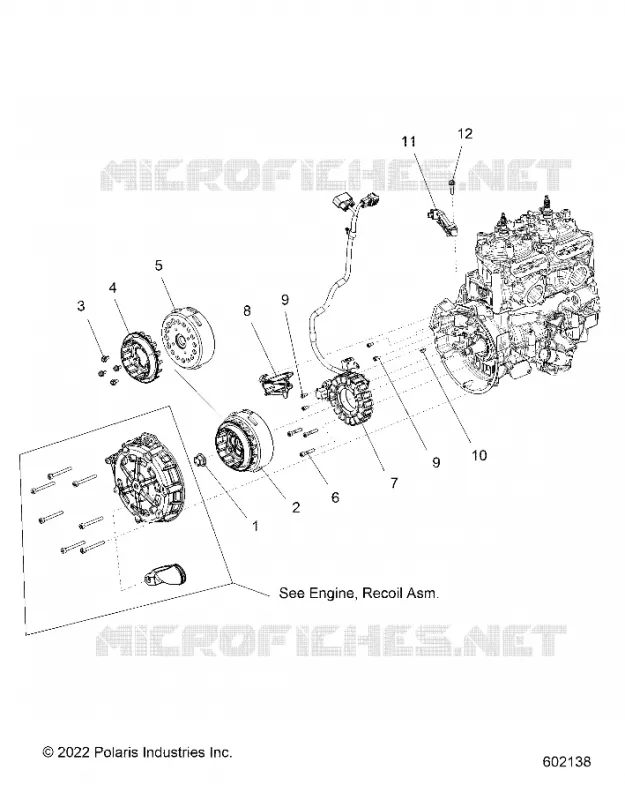

Find the detailed ELECTRICAL, IGNITION SYSTEM POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
