CHASSIS, CAB FRAME for POLARIS RZR TRAIL S 1000 from 2024

CHASSIS, CAB FRAME

1

WELD-ROPS A PILLAR BLK

1025834458

Not Available

2

WELD-ROPS B PILLAR BLK

1025835458

Not Available

3

WELD-ROPS B-C PILLAR LH BLK

1025886458

Not Available

4

WELD-ROPS B-C PILLAR RH BLK

1025887458

Not Available

5

WELD-ROPS C PILLAR BLK

1025836458

Not Available

6

BUMPER MOUNT BRACKET; MATTE BLACK

5259100458

Not Available

7

HEX FLANGE SCREW 10 MM X 1.25 MM X 55 MM

7519956

$4,19 Unit Price incl. VAT

8

NUT-HXFL-M10X1.25 8 ZB3 NYL

7547750

$7,34 Unit Price incl. VAT

9

HEX FLANGE BOLT; 8 MM X 1.25 MM X 20 MM

7518555

$4,19 Unit Price incl. VAT

10

HEX FLANGE SCREW; 8 MM X 1.25 MM X 55 MM

7520094

$10,49 Unit Price incl. VAT

11

NYLOC OLIVE NUT; 8 MM X 1.25 MM

7547332

$7,34 Unit Price incl. VAT

12

NUT-HXFL-M8X1.25 8 ZTB NYL

7548028

$5,24 Unit Price incl. VAT

13

BOLSTER WELD; LEFT; MATTE BLACK

1020237458

Not Available

14

BOLSTER WELD; RIGHT; MATTE BLACK

1020238458

Not Available

15

HEX FLANGE SCREW; 10 MM X 1.5 MM X 20 MM

7519905

$4,19 Unit Price incl. VAT

16

BOLT M10 X 1.5 X 45

7519906

$9,44 Unit Price incl. VAT

17

HEX NUT; 10 MM X 1.5 MM

7547746

$5,24 Unit Price incl. VAT

18

HEX HEAD FLANGE BOLT 8MM X 20MM -1.25MM

7518450

$3,14 Unit Price incl. VAT

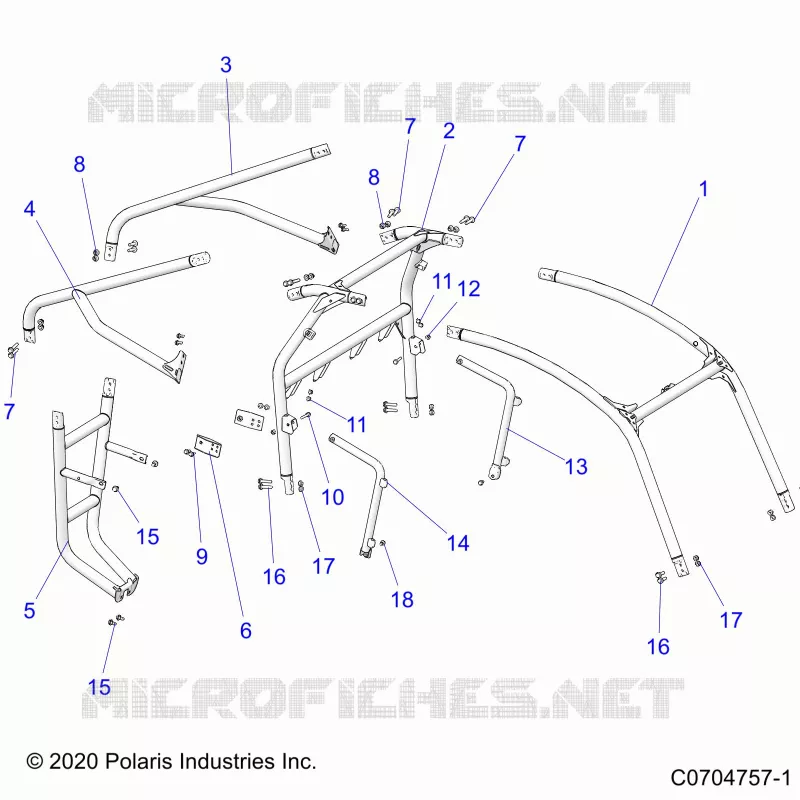

Find the detailed CHASSIS, CAB FRAME POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
