IFS SHOCK (WALKER EVANS) for POLARIS 600 IQ RACER from 2008

SHOCK-IFS W/E RACE

7043360

9999999

Not Available

LOOP-BODY W/SNAP RING (700146)

1800324

9999999

Not Available

BEARING

1800170

$149,09 Unit Price incl. VAT

END CAP SNAP RING

1800041

$15,74 Unit Price incl. VAT

BODY-SHOCK THRD IFS(700152)

1800325

9999999

Not Available

SPRING RETAINER

1800046

$68,24 Unit Price incl. VAT

CRIMP NUT 3/8 IN

1800031

$7,34 Unit Price incl. VAT

WASHER

1800204

9999999

Not Available

WEAR BAND

1800029

9999999

Not Available

PISTON WITH BAND

1800312

9999999

Not Available

WEAR SLEEVE

1800047

$73,49 Unit Price incl. VAT

SHAFT BUSHING

1800038

9999999

Not Available

O-RING SHAFT SEAL HEAD (10)

1800037

$3,14 Unit Price incl. VAT

SHAFT SEAL U CUP

1800035

9999999

Not Available

D/TYPE WIPER

1800034

$68,24 Unit Price incl. VAT

SHAFT 5/8 (400159)

1800233

9999999

Not Available

O-RING

1800095

$2,09 Unit Price incl. VAT

O-RING BODY

1800027

$3,66 Unit Price incl. VAT

EYELET-SHAFT 5/8 (400161)

1800234

9999999

Not Available

SPRING RETAINING RING

1800116

$120,74 Unit Price incl. VAT

ASM-SHAFT SEAL HOUSING

1800131

9999999

Not Available

SCREW-BUTTON HEAD 8/32(10)

1800109

$6,29 Unit Price incl. VAT

O-RING(10)

1800108

9999999

Not Available

VALVE-NEEDLE

1800107

9999999

Not Available

END CAP (420207)

1800309

9999999

Not Available

RING-SNAP

1800159

$10,49 Unit Price incl. VAT

O-RING

1800184

$10,49 Unit Price incl. VAT

PISTON BAND

1800185

$83,99 Unit Price incl. VAT

BLEED SCREW

1800211

9999999

Not Available

O-RING BLEED SCREW

1800210

$3,14 Unit Price incl. VAT

PISTON

1800158

9999999

Not Available

BODY; RESERVOIR (620334)

1800310

9999999

Not Available

KNOB (500604)

1800284

9999999

Not Available

SCREW

1800203

9999999

Not Available

SPRING-D-TENT(10)

1800128

$20,99 Unit Price incl. VAT

BALL-D-TENT(10)

1800127

$12,59 Unit Price incl. VAT

BALL-D-TENT(10)

1800127

$12,59 Unit Price incl. VAT

SCREW W/THRU HOLE

1800219

$20,99 Unit Price incl. VAT

3/8 AN WASHER (10)

1800050

$7,34 Unit Price incl. VAT

SHIM-VALVE .015X1.300 (10)

1800072

9999999

Not Available

PISTON

1800217

9999999

Not Available

SHIM-VALVE .010X.700 (10)

1800052

9999999

Not Available

O-RING(10)

1800094

9999999

Not Available

ADAPTOR RESERVOIR (620335)

1800311

9999999

Not Available

SCREW

7515415

9999999

Not Available

IFS SPACER

5134999

$34,64 Unit Price incl. VAT

O-RING .600 X .210 IN

5412290

$3,66 Unit Price incl. VAT

NYLOK NUT

7547263

$6,29 Unit Price incl. VAT

SPRG-COMP.375X12.587 150# BLK

7043160067

Not Available

SPRG-COMP.437X13.46 200# BLK

7043162067

Not Available

Spring Compression 170# [Opt]

7043195067

Not Available

SPRG-COMP.406X14.00 190# BLK

7043161067

Not Available

CMPRSSN SPNG 130 .362 X 12.403 GS BLK

7043159067

Not Available

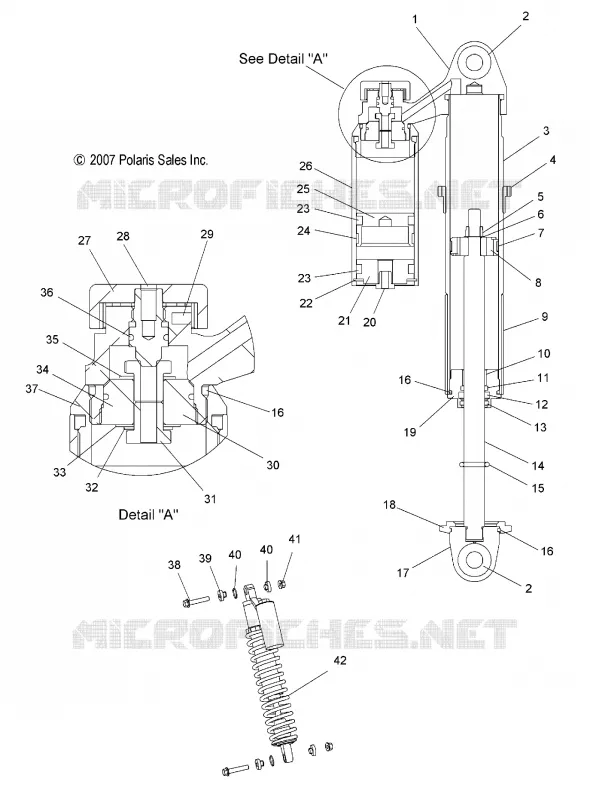

Find the detailed IFS SHOCK (WALKER EVANS) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
