Engine displacement
500
2
Year
2004
3
Trim
500 WIDETRAK LX
4
Parts Catalog
ENGINE MOUNTING
5
Parts Diagram
Parts Catalog
SHIFT LINKAGE
by
CRANKCASE
ENGINE MOUNTING
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
1
2
3
4
5
6
7
8
9
10
10
11
12
13
13
14
15
16
17
18
19
20
21
1
TUBING-CONVOLUTED 10CM
552151610
Not Available
2
ENGINE-EC50PL235 SB
3086509
9990000
Not Available
3
SCREW
7512530
$10,49 Unit Price incl. VAT
4
ENGINE MOUNT; TOP; RUBBER
5411685
9999999
Not Available
5
NUT FLANGE
7542522
$10,49 Unit Price incl. VAT
6
ENGINE MOUNT; BOTTOM; RUBBER
5411686
9999999
Not Available
7
MOTOR MOUNT PLATE
5242496
9999999
Not Available
8
SPRING LOCK WASHER
7553101
$7,34 Unit Price incl. VAT
9
BOLT
7512539
$7,34 Unit Price incl. VAT
10
ENGINE MOUNT
3110061
9999999
Not Available
11
WASHER FLAT(10)
7555915
$6,29 Unit Price incl. VAT
12
NYLOK NUT
7542451
$2,09 Unit Price incl. VAT
13
NUT HEX
7542414
$9,44 Unit Price incl. VAT
14
LIMITER TORQUE BLK.
1012048067
Not Available
15
RIVET
7661637
$2,09 Unit Price incl. VAT
16
STOP TORQUE COARSE 1.94 DIA
3110063
9999999
Not Available
17
WASHER FLAT(10)
7555893
$1,56 Unit Price incl. VAT
18
FLEX LOCK; NUT
7547008
$11,54 Unit Price incl. VAT
19
LINE FUEL 1/8 ID 600 CM.
8360009600
Not Available
20
CABLE TIE
7080138
$5,24 Unit Price incl. VAT
21
THROTTLE CABLE WITH OIL
7080554
$120,74 Unit Price incl. VAT

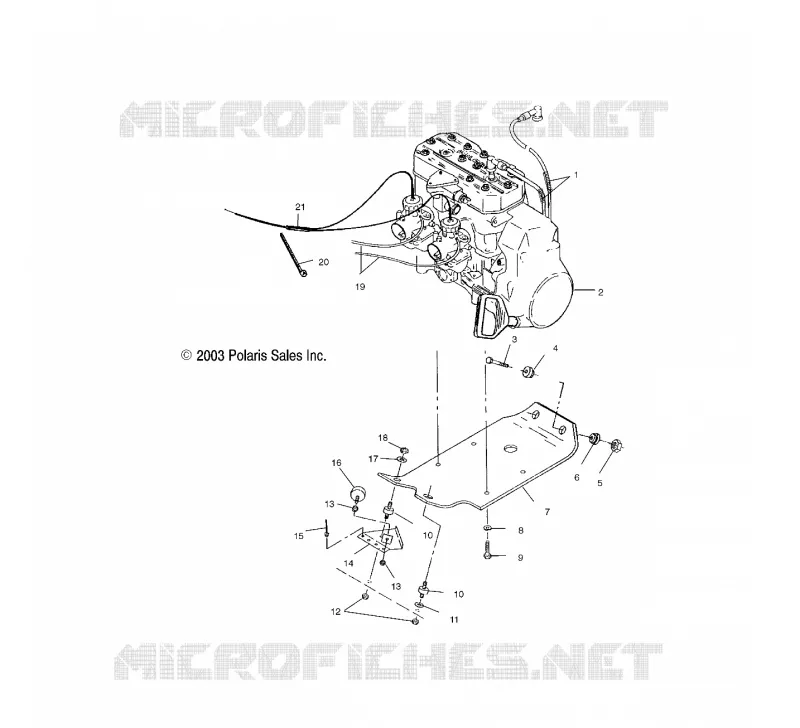

Find the detailed ENGINE MOUNTING POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
