SUSPENSION, REAR CARRIER for POLARIS RANGER XP 1000 NORTHSTAR ULTIMATE AUDIO PACKAGE from 2021

SUSPENSION, FRONT STABILIZER BAR- R21RRZ99A9/AC/AP/AW/B9/BC/BP/BW (C700032)

REAR SUSPENSION CONTROL ARMS

SUSPENSION, REAR CARRIER

1

REAR WHEEL HUB; MEDIUM GLOSS BLACK

5142964067

Not Available

2

REAR BRAKE DISC 8.625 IN.

5248250

$141,74 Unit Price incl. VAT

3

SCREW 10 MM X 1.5 MM X 20 MM

7519343

9999999

Not Available

4

WHEEL STUD

7519753

$9,44 Unit Price incl. VAT

5

SEALED PIVOT CAP ASSEMBLY; 10 MM

1543611

$10,49 Unit Price incl. VAT

6

SEALED PIVOT CAP ASSEMBLY; 12 MM

1543612

$10,49 Unit Price incl. VAT

7

WHEEL BEARING; 40 MM X 74 MM X 40 MM

3514917

$73,49 Unit Price incl. VAT

7

WHEEL BEARING; 40 MM X 74 MM X 40 MM

3515087

$108,14 Unit Price incl. VAT

8

BEARING CARRIER; LEFT

5140866

$299,24 Unit Price incl. VAT

9

BEARING CARRIER; RIGHT

5140867

$299,24 Unit Price incl. VAT

10

PIVOT SHAFT; SHORT; 10 MM

5139990

$10,49 Unit Price incl. VAT

11

PIVOT SHAFT; LONG; 12 MM

5139991

5144659

$16,79 Unit Price incl. VAT

12

STANDARD SUSPENSION BUSHING; 10 MM

5452233

$5,24 Unit Price incl. VAT

13

STANDARD BUSHING; SUSPENSION; M12

5452271

$6,29 Unit Price incl. VAT

14

RETAINING RING

7710440

$18,89 Unit Price incl. VAT

15

CASTLE NUT; 18 MM X 1.5 MM

7547337

$3,66 Unit Price incl. VAT

16

AXLE WASHER; M18; 42 X 4.5

7557134

$14,69 Unit Price incl. VAT

17

COTTER PIN

7661404

$9,44 Unit Price incl. VAT

18

SCREW

7519365

$25,19 Unit Price incl. VAT

19

HEX FLANGE SCREW; 12 MM X 1.5 MM X 170

7520294

$20,99 Unit Price incl. VAT

20

NYLOC NUT

7547333

$3,14 Unit Price incl. VAT

21

NUT 12MM X 1.5MM

7547334

$9,44 Unit Price incl. VAT

22

WASHER

7556153

$3,66 Unit Price incl. VAT

23

WASHER 7/16

7556212

$15,74 Unit Price incl. VAT

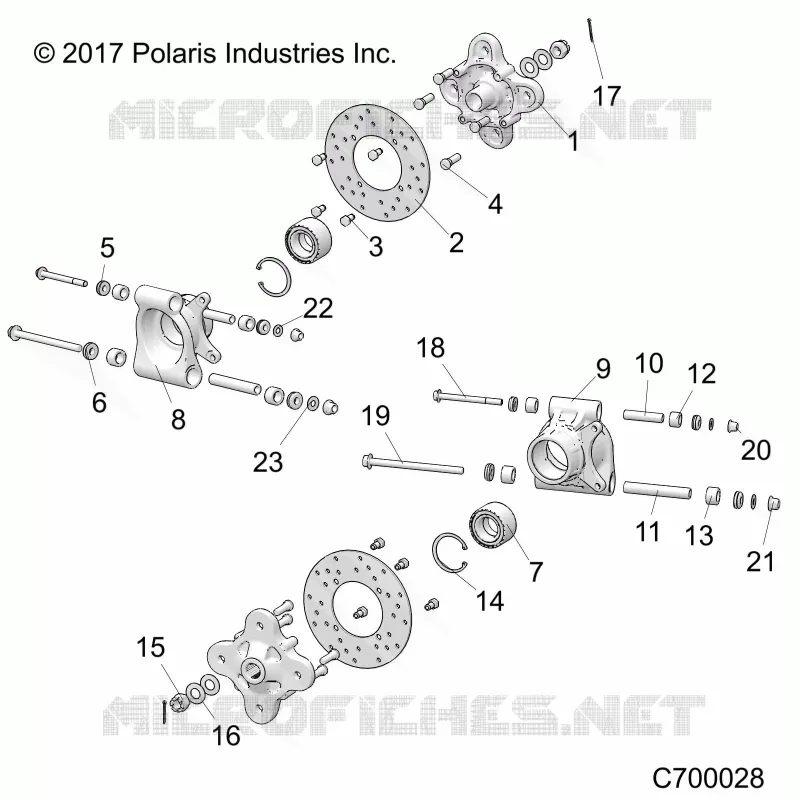

Find the detailed SUSPENSION, REAR CARRIER POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
