1
Engine displacement
autre
2
Year
1992
3
Trim
FIN LITE GT - F923133
4
Parts Catalog

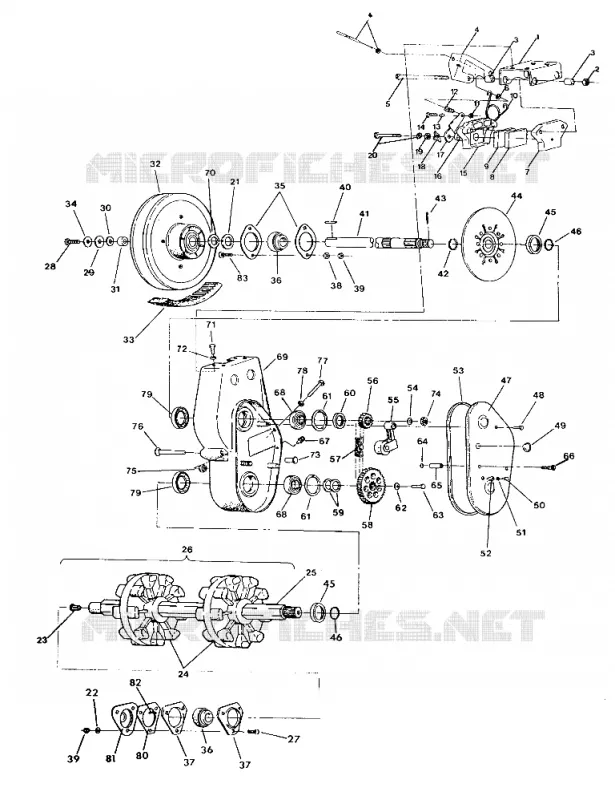

BRAKE CHAINCASE INDY LITE GT (4921342134013A)
5
Parts Diagram
Parts Catalog
STEERING INDY LITE GT (4921342134011A)
by
SUSPENSION INDY LITE GT (4921342134015A)
BRAKE CHAINCASE INDY LITE GT (4921342134013A)
1
1
2
2
3
3
3
3
4
4
5
5
6
6
6
6
7
7
8
8
9
9
10
10
11
11
12
12
13
13
14
14
15
15
16
16
16
16
16
16
16
16
16
16
21
21
22
22
23
23
24
24
25
25
26
26
27
27
28
28
29
29
30
30
31
31
32
32
33
33
34
34
35
35
36
36
36
36
37
37
37
37
38
38
39
39
39
39
40
40
41
41
42
42
43
43
44
44
45
45
45
45
46
46
46
46
47
47
48
48
49
49
50
50
51
51
52
52
53
53
54
54
55
55
56
56
57
57
58
58
59
59
60
60
61
61
61
61
62
62
63
63
64
64
65
65
66
66
67
67
68
68
68
68
69
69
70
70
72
72
73
73
74
74
75
75
76
76
77
77
78
78
79
79
79
79
80
80
81
81
82
82
83
83
1
1
2
2
3
3
3
3
4
4
5
5
6
6
6
6
7
7
8
8
9
9
10
10
11
11
12
12
13
13
14
14
15
15
16
16
16
16
16
16
16
16
16
16
21
21
22
22
23
23
24
24
25
25
26
26
27
27
28
28
29
29
30
30
31
31
32
32
33
33
34
34
35
35
36
36
36
36
37
37
37
37
38
38
39
39
39
39
40
40
41
41
42
42
43
43
44
44
45
45
45
45
46
46
46
46
47
47
48
48
49
49
50
50
51
51
52
52
53
53
54
54
55
55
56
56
57
57
58
58
59
59
60
60
61
61
61
61
62
62
63
63
64
64
65
65
66
66
67
67
68
68
68
68
69
69
70
70
72
72
73
73
74
74
75
75
76
76
77
77
78
78
79
79
79
79
80
80
81
81
82
82
83
83
1
1
2
2
3
3
3
3
4
4
5
5
6
6
6
6
7
7
8
8
9
9
10
10
11
11
12
12
13
13
14
14
15
15
16
16
16
16
16
16
16
16
16
16
21
21
22
22
23
23
24
24
25
25
26
26
27
27
28
28
29
29
30
30
31
31
32
32
33
33
34
34
35
35
36
36
36
36
37
37
37
37
38
38
39
39
39
39
40
40
41
41
42
42
43
43
44
44
45
45
45
45
46
46
46
46
47
47
48
48
49
49
50
50
51
51
52
52
53
53
54
54
55
55
56
56
57
57
58
58
59
59
60
60
61
61
61
61
62
62
63
63
64
64
65
65
66
66
67
67
68
68
68
68
69
69
70
70
72
72
73
73
74
74
75
75
76
76
77
77
78
78
79
79
79
79
80
80
81
81
82
82
83
83
1
BRACKET
5220514
5220514-067
Not Available
2
NYLOCK NUT
7542439
$2,09 Unit Price incl. VAT
3
BUSHING
1930559
9999999
Not Available
4
BRKT BRAKE BLK. Substituted by 5220211-067
5220211
Not Available
5
BOLT
7515478
9999999
Not Available
6
CABLE BRAKE
7080427
9999999
Not Available
7
CALIPER
5630305
9999999
Not Available
8
PUCK
1930592
9999999
Not Available
9
PAD BRAKE (THICK)
1930588
9999999
Not Available
10
SPRING BRAKE RETURN
7041147
9999999
Not Available
11
NYLOK NUT
7542122
$2,09 Unit Price incl. VAT
12
PIN; CLEVIS
7080316
9999999
Not Available
13
BUSHING
5332795
9999999
Not Available
14
BOLT
7512240
9999999
Not Available
15
CALIPER
1930593
9999999
Not Available
16
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
17
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
18
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
19
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
20
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
21
BUSHING MACHINERY
7555790
9999999
Not Available
22
WASHER
7555725
9999999
Not Available
23
SPEEDO METAL BUSHING
3280019
$20,99 Unit Price incl. VAT
24
SPROCKET 9T
5430571
9999999
Not Available
25
SHAFT; DRIVE
5130799
9999999
Not Available
26
DRIVESHAFT ASM. Substituted by 1590249 (Incl. 25-27)
1590224
Not Available
27
BOLT CARRIAGE
7512331
$7,34 Unit Price incl. VAT
28
BOLT
7515347
9999999
Not Available
29
WASHER FLAT
7555701
$7,34 Unit Price incl. VAT
30
WASHER FLAT(10)
7555734
$1,56 Unit Price incl. VAT
31
SPACER
5020566
9999999
Not Available
32
CLUTCH DRIVEN
1322141
Not Available
33
BELT DRIVE
3211053
9999999
Not Available
34
WASHER;SHAKEPROOF;5/16(10)
7577901
9999999
Not Available
35
FLANGETTE
5222393
5270869
$36,74 Unit Price incl. VAT
36
BEARING
3514501
9999999
Not Available
37
FLANGETTE
5222591
9999999
Not Available
38
FLAT WASHER
7558402
$1,56 Unit Price incl. VAT
39
NYLOK NUT
7542324
$1,56 Unit Price incl. VAT
40
KEY-SQUARE
7721204
9999999
Not Available
41
SHAFT; INPUT
5130786
9999999
Not Available
42
RING RETAINING
7710422
$7,34 Unit Price incl. VAT
43
COTTER PIN
7661401
$1,56 Unit Price incl. VAT
44
DISC BRAKE ASM
1910064
9999999
Not Available
45
SLEEVE SEAL
5020588
$40,94 Unit Price incl. VAT
46
O-RING
5410613
$3,66 Unit Price incl. VAT
47
COVER CHAINCASE
5222579
Not Available
48
BOLT
7512246
9999999
Not Available
49
PLUG RUBBER-HOLE .5DIA
5410012
9999999
Not Available
50
SCREW
7511909
9999999
Not Available
51
WASHER FLAT
7558201
$9,44 Unit Price incl. VAT
52
NUT-WELL
7541918
9999999
Not Available
53
CHAINCASE GASKET
5410277
9999999
Not Available
54
WASHER SPRING
7571620
$13,64 Unit Price incl. VAT
55
TIGHTENER ASM.
1332078
9999999
Not Available
56
SPROCKET 16 T
3221032
9999999
Not Available
57
CHAIN 64 PITCH 11W
3224023
9999999
Not Available
58
SPROCKET 39 T11W
3222034
9999999
Not Available
59
BUSHING
7556509
$3,14 Unit Price incl. VAT
60
SPACER SPROCKET
5010270
9999999
Not Available
61
RETAINING RING
7718406
$11,54 Unit Price incl. VAT
62
SPRING WASHER
7571618
$11,54 Unit Price incl. VAT
63
SCREW
7515350
7517979
$7,34 Unit Price incl. VAT
64
O RING
5410565
9999999
Not Available
65
STAND-OFF C/C COVER
5333033
Not Available
66
BOLT; S.S.(10)
7512293
9999999
Not Available
67
PLUG; MAGNETIC
7051518
7052045
$26,24 Unit Price incl. VAT
68
BEARING CHAINCASE #6205
3514306
9999999
Not Available
69
CHAINCASE
5130795
Not Available
70
BUSHING(10)
7555819
9999999
Not Available
72
WASHER SPLIT LOCK
7552804
9999999
Not Available
73
CAP STUD COVER
5020569
9999999
Not Available
74
SLOTTED NUT
7542810
$5,76 Unit Price incl. VAT
75
NUT FLANGE
7542423
$7,34 Unit Price incl. VAT
76
BOLT CARRIAGE
7515428
9999999
Not Available
77
SCREW(10)
7515511
$7,34 Unit Price incl. VAT
78
NUT
7542404
$3,14 Unit Price incl. VAT
79
OIL SEAL
3610030
$36,74 Unit Price incl. VAT
80
GASKET DRIVE ADAPTOR
5830012
$4,19 Unit Price incl. VAT
81
ADAPTER DRIVE W/ZERK
3280116
3280540
$188,99 Unit Price incl. VAT
82
SPEEDOMETER SQUARE KEY
3280017
9999999
Not Available
83
BOLT
7512394
7512377
$9,44 Unit Price incl. VAT

Find the detailed BRAKE CHAINCASE INDY LITE GT (4921342134013A) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.

Other Parts for FIN LITE GT - F923133

HITCH ASSEMBLY Swedish Snowmobiles (4922482248006A)

HITCH ASSEMBLY Swedish Snowmobiles (4922482248006A)

for FIN LITE GT - F923133 from 1992

HOOD ASSEMBLY INDY LITE GT (4921342134005A)

HOOD ASSEMBLY INDY LITE GT (4921342134005A)

for FIN LITE GT - F923133 from 1992

HOOD-DECALSSS INDY LITE GT (4921342134007A)

HOOD-DECALSSS INDY LITE GT (4921342134007A)

for FIN LITE GT - F923133 from 1992

HOOD

HOOD

for FIN LITE GT - F923133 from 1992

FRONT SUSPENSION AND SKI INDY LITE GT (4921342134009A)

FRONT SUSPENSION AND SKI INDY LITE GT (4921342134009A)

for FIN LITE GT - F923133 from 1992

REAR TORQUE ARM INDY LITE GT (4921342134018A)

REAR TORQUE ARM INDY LITE GT (4921342134018A)

for FIN LITE GT - F923133 from 1992

DRIVE CLUTCH INDY LITE GT (4921342134019A)

DRIVE CLUTCH INDY LITE GT (4921342134019A)

for FIN LITE GT - F923133 from 1992

DRIVEN CLUTCH INDY LITE GT (4921342134020A)

DRIVEN CLUTCH INDY LITE GT (4921342134020A)

for FIN LITE GT - F923133 from 1992

ENGINE MOUNTING INDY LITE GT (4921342134021A)

ENGINE MOUNTING INDY LITE GT (4921342134021A)

for FIN LITE GT - F923133 from 1992

BLOWER HOUSING/RECOIL STARTER INDY LITE GT (4921342134029A)

BLOWER HOUSING/RECOIL STARTER INDY LITE GT (4921342134029A)

for FIN LITE GT - F923133 from 1992

OIL PUMP INDY LITE GT (4921342134030A)

OIL PUMP INDY LITE GT (4921342134030A)

for FIN LITE GT - F923133 from 1992

FUEL PUMP INDY LITE GT (4921342134031A)

FUEL PUMP INDY LITE GT (4921342134031A)

for FIN LITE GT - F923133 from 1992

CARBURETOR INDY LITE GT (4921342134032A)

CARBURETOR INDY LITE GT (4921342134032A)

for FIN LITE GT - F923133 from 1992

CLUTCH GUARD ASSEMBLY/SKI WELDMENT SWEDISH SNOWMOBILES (4922482248011A)

CLUTCH GUARD ASSEMBLY/SKI WELDMENT SWEDISH SNOWMOBILES (4922482248011A)

for FIN LITE GT - F923133 from 1992

CHASSIS AND SEAT INDY LITE GT (4921342134001A)

CHASSIS AND SEAT INDY LITE GT (4921342134001A)

for FIN LITE GT - F923133 from 1992

NOSEPAN CONSOLE INDY LITE GT (4921342134003A)

NOSEPAN CONSOLE INDY LITE GT (4921342134003A)

for FIN LITE GT - F923133 from 1992

STEERING INDY LITE GT (4921342134011A)

STEERING INDY LITE GT (4921342134011A)

for FIN LITE GT - F923133 from 1992

BRAKE CHAINCASE INDY LITE GT (4921342134013A)

BRAKE CHAINCASE INDY LITE GT (4921342134013A)

for FIN LITE GT - F923133 from 1992

SUSPENSION INDY LITE GT (4921342134015A)

SUSPENSION INDY LITE GT (4921342134015A)

for FIN LITE GT - F923133 from 1992

FRONT TORQUE ARM INDY LITE GT (4921342134017A)

FRONT TORQUE ARM INDY LITE GT (4921342134017A)

for FIN LITE GT - F923133 from 1992

RACK TUNNEL EXTENSION INDY LITE GT (4921342134023A)

RACK TUNNEL EXTENSION INDY LITE GT (4921342134023A)

for FIN LITE GT - F923133 from 1992

CRANKCASE INDY LITE GT (4921342134025A)

CRANKCASE INDY LITE GT (4921342134025A)

for FIN LITE GT - F923133 from 1992

CYLINDER INDY LITE GT (4921342134026A)

CYLINDER INDY LITE GT (4921342134026A)

for FIN LITE GT - F923133 from 1992

PISTON CRANKSHAFT INDY LITE GT (4921342134027A)

PISTON CRANKSHAFT INDY LITE GT (4921342134027A)

for FIN LITE GT - F923133 from 1992

MAGNETO INDY LITE GT (4921342134028A)

MAGNETO INDY LITE GT (4921342134028A)

for FIN LITE GT - F923133 from 1992

REVERSE CHAINCASE SWEDISH LITE GT SPORT GT (4922482248009A)

REVERSE CHAINCASE SWEDISH LITE GT SPORT GT (4922482248009A)

for FIN LITE GT - F923133 from 1992

POLARIS FIN LITE GT - F923133 1992

FIN LITE GT - F923133

FIN LITE GT - F923133

Model : OTHERS

Engine capacity : autre

Year : 1992

New and OEM parts
International Shipping
Official price POLARIS
A team of experts at your service
Secure Payment
By your side since 2001
Customer Reviews
4.2 /5
1764 Reviews
View all reviews
Spare parts catalogue for all brands
