1
Engine displacement
600
2
Year
2016
3
Trim
600 SWITCHBACK PRO-S
4
Parts Catalog
ENGINE, PISTON CRANKSHAFT
5
Parts Diagram
Parts Catalog
STORAGE BAG
by
STARTER MOTOR
ENGINE, PISTON CRANKSHAFT
-
1
2
2
3
4
5
6
7
7
7
8
9
10
11
-
KIT-CRANKSHAFT 3090346
2205647
2208895
$3 039,74 Unit Price incl. VAT
1
PISTON RINGS KIT; 77.25
2204903
9999999
Not Available
2
CIRCLIP
3021867
$6,29 Unit Price incl. VAT
3
PISTON KIT
2204900
$356,99 Unit Price incl. VAT
4
BEARING 15 NEEDLE 20 X 25 X 23
3514718
3514718-016
$40,94 Unit Price incl. VAT
5
CONNECTING ROD KIT
2205657
9999999
Not Available
6
BEARING BALL; EXTRACE
3514310
$54,59 Unit Price incl. VAT
7
BALL BEARING
3090284
9999999
Not Available
7
RING-SNAP(6207 BEARING 1.89 W)
7710528
7710782
$89,24 Unit Price incl. VAT
7
BALL BEARING 35 X 72 X 20
3090283
9999999
Not Available
8
GEAR-PUMPDRIVE CHN-CR
5138548
9999999
Not Available
9
WOODRUFF KEY
7721117
$47,24 Unit Price incl. VAT
10
DOUBLE ROW BALL BEARING
3514530
$182,69 Unit Price incl. VAT
11
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available

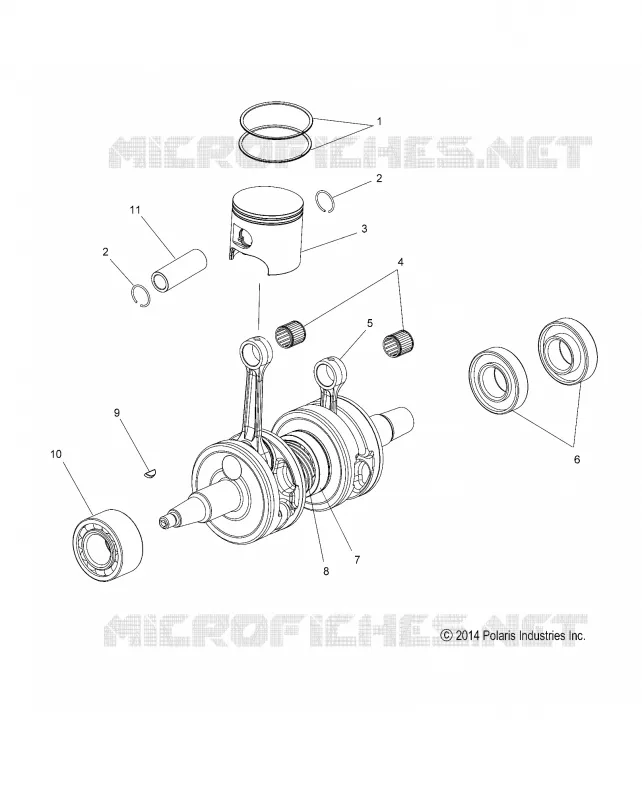

Find the detailed ENGINE, PISTON CRANKSHAFT POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
