1
Engine displacement
autre
2
Year
1995
3
Trim
XLT - 0950756
4
Parts Catalog

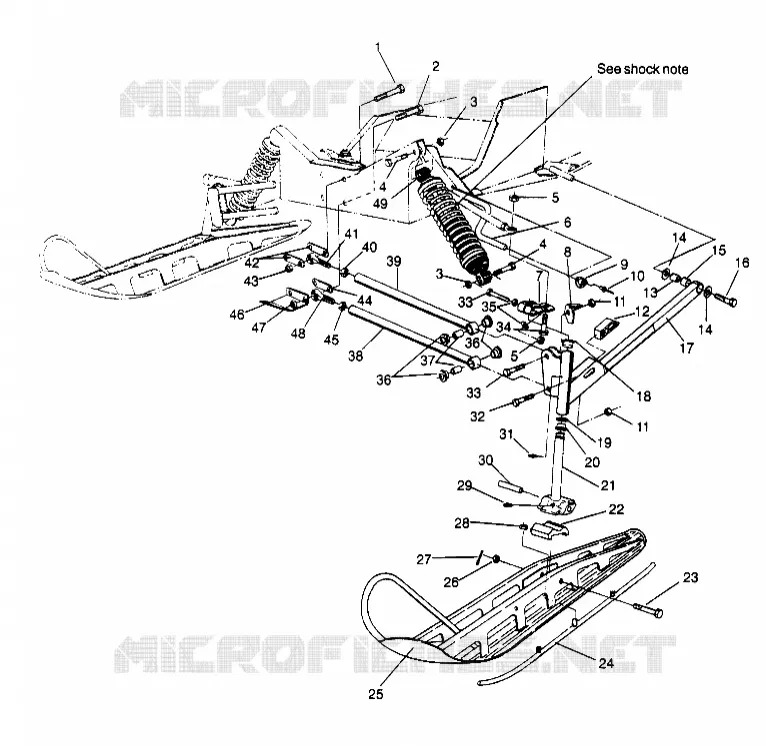

FRONT SUSPENSION AND SKI XLT 0950756, XLT SKS 0950556, XLT SKS EURO E95055 (4928842884B004)
5
Parts Diagram
Parts Catalog
HOOD
by
STEERING
FRONT SUSPENSION AND SKI XLT 0950756, XLT SKS 0950556, XLT SKS EURO E95055 (4928842884B004)
1
BOLT
7512551
9999999
Not Available
2
BOLT
7512656
9999999
Not Available
3
NUT; NYLOC
7542453
7542439
$2,09 Unit Price incl. VAT
4
BOLT(10)
7515515
9999999
Not Available
5
NUT; FLEXLOC B
7542456
9999999
Not Available
6
BAR SWAY BLACK
5224237067
Not Available
6
BAR SWAY 9/16 BLK.
5224476067
Not Available
7
STEERING ARM
5220326067
Not Available
8
STOP STRNG RH BLK.
5220238067
Not Available
8
STOP STRNG LH BLK.
5220237067
Not Available
9
BUSHING-SWAYBAR
5410383
9999999
Not Available
10
RIVET
7621433
$2,09 Unit Price incl. VAT
11
NUT; FLEXLOC
7542452
7542411
$6,29 Unit Price incl. VAT
12
SLIDE-SWAYBAR
5410384
9999999
Not Available
13
PIVOT-TRAILING ARM
5410382
9999999
Not Available
14
WASHER
7555721
$2,09 Unit Price incl. VAT
15
TUBE TRAILING ARM
5010187
9999999
Not Available
16
BOLT
7512557
9999999
Not Available
17
ARMTRLGLHBLK.
1822053067
Not Available
17
ARMTRLGRHBLK.
1822052067
Not Available
18
FLANGE BUSHING
3573909
$4,19 Unit Price incl. VAT
19
BUSHING
7556509
$3,14 Unit Price incl. VAT
20
FLANGED BUSHING
3574208
$6,29 Unit Price incl. VAT
21
SPINDLE BLK.
6230073067
Not Available
22
STOP RUBBER
5521276
9999999
Not Available
23
SCREW
7515462
9999999
Not Available
24
60 DEG4 CARBIDE(STEEL SKI)
2871288
$110,24 Unit Price incl. VAT
24
SKAG PR.3 CARBIDE(STEEL SKI)
2870693
$99,74 Unit Price incl. VAT
25
SKI WELD BLK
1820332067
Not Available
26
NUT; CASTLE
7542457
7542438
$3,14 Unit Price incl. VAT
27
PIN; COTTER
7661209
7661205
$1,56 Unit Price incl. VAT
28
NYLOK NUT
7542324
$1,56 Unit Price incl. VAT
29
FITTING LUBE.W/BALL CK.(10)
7080306
$5,76 Unit Price incl. VAT
30
BUSHING PIVOT
5010158
$27,29 Unit Price incl. VAT
31
FITTING LUBRICATION THREADED(1
7080433
$2,09 Unit Price incl. VAT
32
BOLT
7515492
7515540
$9,44 Unit Price incl. VAT
33
BOLT
7515491
7515433
$3,14 Unit Price incl. VAT
34
BOLT
7512404
$7,34 Unit Price incl. VAT
35
WASHER
7555851
7555832
$4,19 Unit Price incl. VAT
36
BUSH; RADIUS ROD PIVOT; OUT
5431486
9999999
Not Available
37
RADIUS ROD BUSHING
5010127
$12,59 Unit Price incl. VAT
38
ROD RAD.LOW.
1822123067
Not Available
38
ROD RAD.LOW.(STORM)
1822102067
Not Available
39
ROD RAD.UPPER(STORM)
1822099067
Not Available
39
ROD RAD.UP.
1822121067
Not Available
40
NUT JAM(10)
7542520
9999999
Not Available
41
ROD END; RH
7060155
9999999
Not Available
42
STRAP SPACER TOP
5211344
$13,64 Unit Price incl. VAT
43
NUT FLEXLOCK
7542503
9999999
Not Available
44
STRAP SPACER BOTTOM
5211345
9999999
Not Available
45
NUT-JAM(10)
7542711
$4,19 Unit Price incl. VAT
46
BRACE PAN
5223997067
Not Available
47
NUT FLEXOC;
7542703
9999999
Not Available
48
ROD END;RH
7060156
7061071
$99,74 Unit Price incl. VAT
49
COMPRESSION SPRING
7041261067
Not Available
49
SHOCKFR.SUSP.
7041285
9999999
Not Available
49
TOP RETAINER
5220225
$19,94 Unit Price incl. VAT
49
RETAINER SPRING
5210953
$11,54 Unit Price incl. VAT

Find the detailed FRONT SUSPENSION AND SKI XLT 0950756, XLT SKS 0950556, XLT SKS EURO E95055 (4928842884B004) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
