SPORTSMAN X2 500 EFI QUAD - A09TN50EA
4
Parts Catalog
REAR BRAKE CALIPER
5
Parts Diagram
Parts Catalog
TAILGATE BRACKETS
by
BRAKES, VALVE SYSTEM
REAR BRAKE CALIPER
-
1
2
3
4
5
6
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
23
24
25
1
1
2
3
4
5
5
6
6
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
23
-
ASM-CALIPER DH4P X2 INTL
1911179
9999999
Not Available
1
ANVIL BODY KIT
2201873
$249,89 Unit Price incl. VAT
2
BRAKE PAD KIT
2203451
$49,13 Unit Price incl. VAT
3
SLIDE BOLT KIT
2201870
$120,74 Unit Price incl. VAT
4
SEAL KIT; DH4P
2201872
$120,74 Unit Price incl. VAT
5
PISTON SEAL KIT
2201869
$225,74 Unit Price incl. VAT
6
FITTING-BLEED COMPACT
1910538
$19,94 Unit Price incl. VAT
7
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
8
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
9
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
10
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
11
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
12
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
13
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
14
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
15
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
16
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
17
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
18
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
19
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
20
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
21
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
22
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
23
BOLT TRUSS (10) [No Longer Available]
7512305
Not Available
24
SPRING LOCK WASHER
7552901
$2,09 Unit Price incl. VAT
25
FLAT WASHER
7558402
$1,56 Unit Price incl. VAT

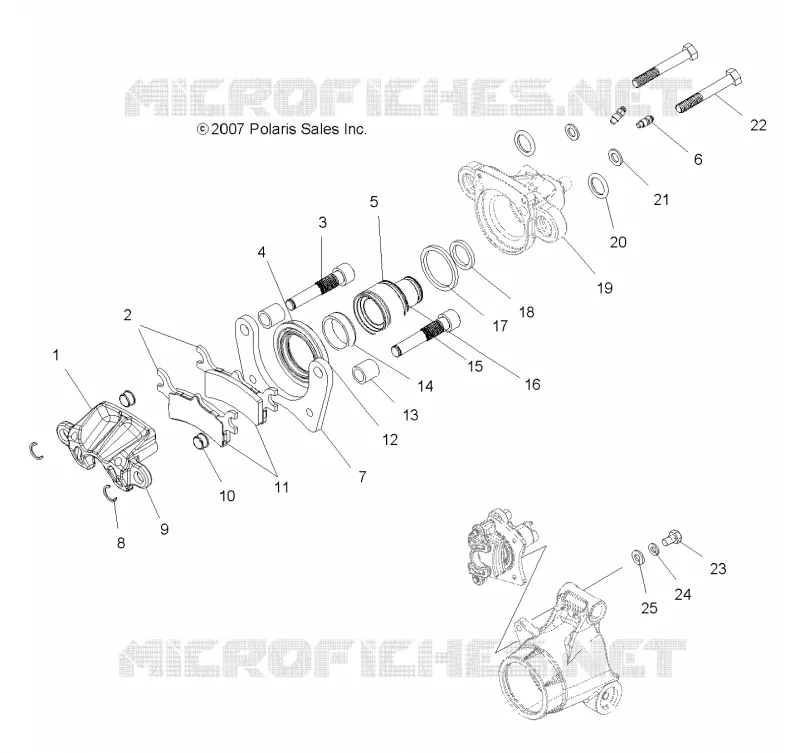

Find the detailed REAR BRAKE CALIPER POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
