Engine displacement
570
2
Year
2016
3
Trim
RANGER 570 FULL SIZE
4
Parts Catalog
BODY, WHEEL WELL PLATES
5
Parts Diagram
Parts Catalog
REAR SUSPENSION
by
FRONT BRAKE CALIPER
BODY, WHEEL WELL PLATES
1
2
3
4
1
2
3
4
1
2
3
4
1
PLATE-WHEEL WELL;3P;FS;BLK
5452657070
Not Available
2
PLATE-WHEEL WELL;3P;FS;PS;BLK
5452781070
Not Available
3
PLATE-WHEEL WELL;3P;FS;CEN;BLK
5452782070
Not Available
4
TUFLOK RIVET
7661855
$2,09 Unit Price incl. VAT

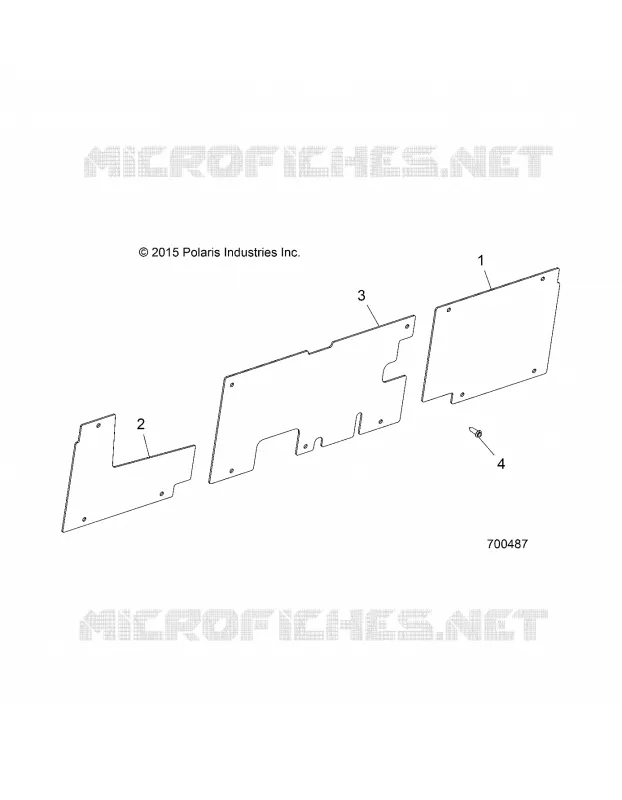

Find the detailed BODY, WHEEL WELL PLATES POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
