1
Engine displacement
autre
2
Year
1996
3
Trim
EURO TRAIL TOURING - E962262
4
Parts Catalog
CHAINCASE TRAIL 0962761 (4931763176B008)
5
Parts Diagram
Parts Catalog
FRONT SUSPENSION AND SKI TRAIL 0962761, TRAIL TOURING 0962262, AND EUROPEAN (4931763176B001)
by
CHAINCASE TRAIL TOURING 0962262 AND EUROPEAN TRAIL TOURING E962262 (4931763176B009)

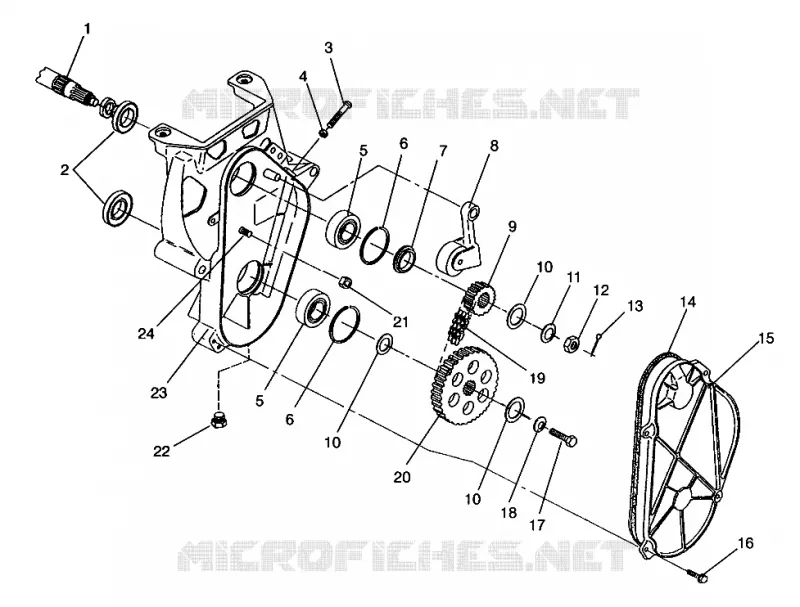

CHAINCASE TRAIL 0962761 (4931763176B008)
1
2
3
4
5
5
6
6
7
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
9
10
10
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
1
2
3
4
5
5
6
6
7
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
9
10
10
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
1
2
3
4
5
5
6
6
7
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
9
10
10
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
1
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
2
OIL SEAL
3610030
$36,74 Unit Price incl. VAT
3
SCREW(10)
7515511
$7,34 Unit Price incl. VAT
4
NUT
7542404
$3,14 Unit Price incl. VAT
5
BEARING; 205 WITHOUT SEAL
3514304
$27,29 Unit Price incl. VAT
6
RETAINING RING
7718406
$11,54 Unit Price incl. VAT
7
SPACER SPROCKET
5010359
9999999
Not Available
8
BLOCK TIGHTENER
5630122
9999999
Not Available
8
TIGHTENER ASMGEARCASE
1332096
9999999
Not Available
8
WHEEL C/C IDLER
5630123
9999999
Not Available
8
BEARING
3553002
9999999
Not Available
8
THRUST WASHER
7558702
$3,14 Unit Price incl. VAT
8
PIN CHAIN TIGHTENER
7662210
9999999
Not Available
9
SPKT 21T 11W 15T (11) 15T Spline
3221066
Not Available
10
WASHER
7555864
$4,19 Unit Price incl. VAT
11
WASHER SPRING
7571620
$13,64 Unit Price incl. VAT
12
NUT
7542811
7547202
$10,49 Unit Price incl. VAT
13
COTTER PIN
7661401
$1,56 Unit Price incl. VAT
14
CHAINCASE GASKET
5410277
9999999
Not Available
15
COVER; CHAINCASE
5630413
9999999
Not Available
16
SCREW
7512242
$4,19 Unit Price incl. VAT
17
SCREW
7515350
7517979
$7,34 Unit Price incl. VAT
18
SPRING WASHER
7571618
$11,54 Unit Price incl. VAT
19
CHAIN 66 PITCH
3224024
9999999
Not Available
20
SPROCKET 39 T11W
3222034
9999999
Not Available
21
NYLOK NUT
7542451
$2,09 Unit Price incl. VAT
22
PLUG
7052115
$10,49 Unit Price incl. VAT
23
CHAINCASE;VENTED;W/BRG CLEAR.
5131121
9999999
Not Available
24
SCREW; CARRIAGE
7515477
9999999
Not Available

Find the detailed CHAINCASE TRAIL 0962761 (4931763176B008) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
