1
Engine displacement
600
2
Year
2016
3
Trim
600 INDY VOYAGEUR 144
4
Parts Catalog
FUEL SYSTEM, RAIL, LINES AND THROTTLE BODY
5
Parts Diagram
Parts Catalog
WATER PUMP
by
STEERING, HANDLEBAR MOUNTING
FUEL SYSTEM, RAIL, LINES AND THROTTLE BODY
1
2
3
4
5
6
7
8
9
10
10
10
10
10
11
12
13
13
14
15
15
16
1
INJECTOR ELASTOMER RUBBER BUSHING
5436287
$6,29 Unit Price incl. VAT
2
BOSCH O-RING
5412891
$2,09 Unit Price incl. VAT
3
O-RING-BOSCH EV-14 UPPER
1500198
$20,25 Unit Price incl. VAT
4
INJ HARNESS W/ LEAD 600 LE
4014439
$677,24 Unit Price incl. VAT
5
HEX FLANGE SCREW; 6 MM X 1.0 MM X 60 MM
7519244
$3,14 Unit Price incl. VAT
6
FUEL LINE RETURN ASSEMBLY; SDI RMK
2521188
9999999
Not Available
7
FUEL LINE SUPPLY ASSEMBLY; RMK; SDI
2521189
9999999
Not Available
8
ASM-FUEL FILTER RETAINER
1204261
$47,24 Unit Price incl. VAT
9
SCREW
7512095
$9,44 Unit Price incl. VAT
10
CLAMP-DAMPER
5254413
9999999
Not Available
10
HOSE CLIP
5254414
9999999
Not Available
10
ASM-FUEL RAIL;LE-13;2INJRMK
2521262
9999999
Not Available
10
4-BAR FUEL DAMPER
2521144
9999999
Not Available
10
SCREW-M5X0.8X12.0 SHCS
7519250
9999999
Not Available
11
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
12
ASM-THROTTLE BODY;600 F-LEAD
1204816
9999999
Not Available
13
SCREW
3131731
$36,74 Unit Price incl. VAT
13
NUT
3131732
$7,34 Unit Price incl. VAT
14
CLAMP-CABLE NYLON 5/16
7080960
9999999
Not Available
15
SCR-M5X0.8X10 SOC/CP-D
7517847
$5,76 Unit Price incl. VAT
16
CLAMP NYLON CABLE
7080539
$9,44 Unit Price incl. VAT

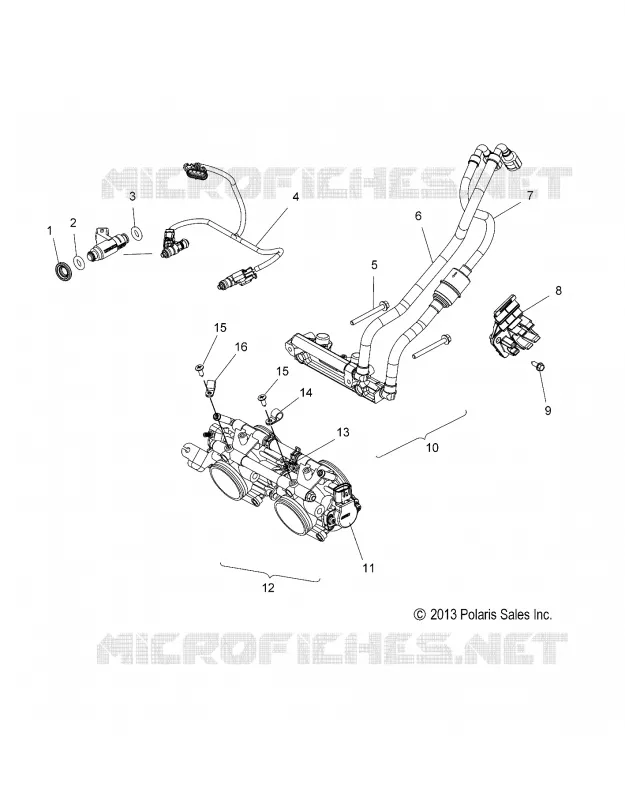

Find the detailed FUEL SYSTEM, RAIL, LINES AND THROTTLE BODY POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
