1
Engine displacement
440
2
Year
1995
3
Trim
440 SKS - 0952560
4
Parts Catalog

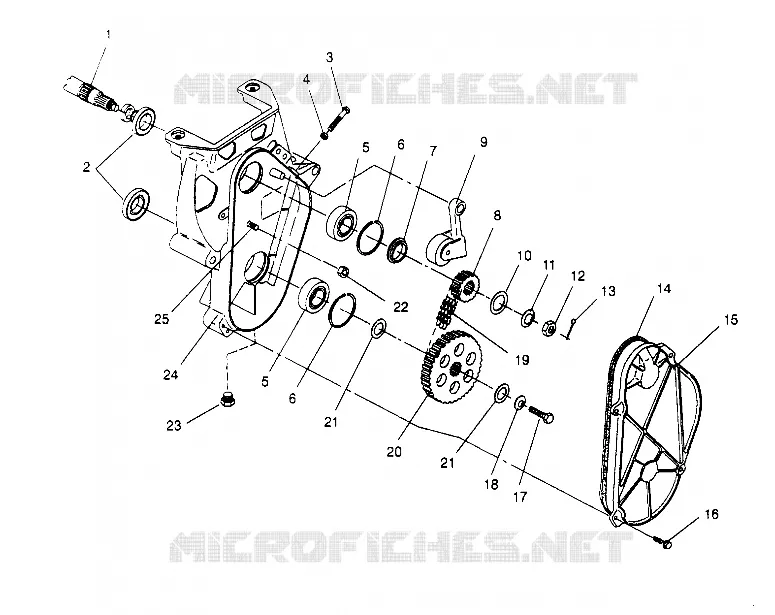

CHAINCASE ASSEMBLY 440 0952760, 440 SKS 0952560, AND EUROPEAN 440 SKS E952 (4929032903B009)
5
Parts Diagram
Parts Catalog
COOLING SYSTEM 440 0952760, 440 SKS 0952560, AND EUROPEAN 440 SKS E952560 (4929032903B008)
by
DRIVE TRAIN ASSEMBLY 440 0952760, 440 SKS 0952560, AND EUROPEAN 440 SKS E9 (4929032903B010)
CHAINCASE ASSEMBLY 440 0952760, 440 SKS 0952560, AND EUROPEAN 440 SKS E952 (4929032903B009)
1
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
2
OIL SEAL
3610030
$36,74 Unit Price incl. VAT
3
SCREW(10)
7515511
$7,34 Unit Price incl. VAT
4
NUT
7542404
$3,14 Unit Price incl. VAT
5
BEARING; 205 WITHOUT SEAL
3514304
$27,29 Unit Price incl. VAT
6
RETAINING RING
7718406
$11,54 Unit Price incl. VAT
7
SPACER SPROCKET
5010270
9999999
Not Available
8
SPKT; 20T
3221053
9999999
Not Available
8
SPROCKET 21 T
3221035
9999999
Not Available
9
BLOCK TIGHTENER
5630122
9999999
Not Available
9
TIGHTENER ASMGEARCASE
1332096
9999999
Not Available
9
WHEEL C/C IDLER
5630123
9999999
Not Available
9
BEARING
3553002
9999999
Not Available
9
THRUST WASHER
7558702
$3,14 Unit Price incl. VAT
9
PIN CHAIN TIGHTENER
7662210
9999999
Not Available
10
WASHER
7555863
$4,19 Unit Price incl. VAT
11
WASHER SPRING
7571620
$13,64 Unit Price incl. VAT
12
SLOTTED NUT
7542810
$5,76 Unit Price incl. VAT
13
COTTER PIN
7661401
$1,56 Unit Price incl. VAT
14
CHAINCASE GASKET
5410277
9999999
Not Available
15
COVER; CHAINCASE
5630413
9999999
Not Available
16
SCREW
7512242
$4,19 Unit Price incl. VAT
17
SCREW
7515350
7517979
$7,34 Unit Price incl. VAT
18
SPRING WASHER
7571618
$11,54 Unit Price incl. VAT
19
CHAIN 66 PITCH
3224024
9999999
Not Available
20
SPROCKET 39 T11W
3222034
9999999
Not Available
21
WASHER
7555864
$4,19 Unit Price incl. VAT
22
NYLOK NUT
7542451
$2,09 Unit Price incl. VAT
23
PLUG
7052115
$10,49 Unit Price incl. VAT
24
CHAINCASE;TOP MT;VENTED MACH
5131055
9999999
Not Available
25
SCREW; CARRIAGE
7515477
9999999
Not Available

Find the detailed CHAINCASE ASSEMBLY 440 0952760, 440 SKS 0952560, AND EUROPEAN 440 SKS E952 (4929032903B009) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
