1
Engine displacement
500
2
Year
1991
3
Trim
SWE 500 - S910764
4
Parts Catalog
STEERING 500 AND 500 CLASSIC (4919251925020A)
5
Parts Diagram
Parts Catalog
DRIVE CLUTCH FROM SERIAL NO. 1841612 (4919251925015B)
by
CRANKCASE 500 AND 500 CLASSIC (4919251925023A)
STEERING 500 AND 500 CLASSIC (4919251925020A)
1
GRIP H#BAR BLUE [No Longer Available]
5410272134
Not Available
1
GRIP H BAR BLACK
541027221
Not Available
2
DIMMER SWITCH
4110107
9999999
Not Available
3
COVER H#BAR PAD [No Longer Available] (500 Classic Only)
2690034
Not Available
3
PAD H#BAR BLACK
2690038
Not Available
4
PAD HANDLEBAR
5810448
Not Available
5
ADAPTER BLOCK
5430604
$26,24 Unit Price incl. VAT
6
SCREW
7511848
$7,34 Unit Price incl. VAT
7
RETAINING RING
7710401
$7,34 Unit Price incl. VAT
8
WASHER
7555730
$7,34 Unit Price incl. VAT
9
RIVET (50) Substituted by 7621307
7621302
Not Available
10
BLOCK THROTTLE
5431076
5431592
$73,49 Unit Price incl. VAT
11
SWITCH AUXILIARY SHUT-OFF
4110106
9999999
Not Available
12
LEVER-THROTTLE
5430638
9999999
Not Available
13
RETAINING RING
7710503
$7,34 Unit Price incl. VAT
14
RETAINING PIN
7661624
$23,09 Unit Price incl. VAT
15
SCREW(10)
7512183
Not Available
16
NYLOK NUT
7542122
$2,09 Unit Price incl. VAT
17
POST STEERING Substituted by 1823143-067
1823143
Not Available
18
STEERING ARM CTR. Substituted by 1822040-067
1822040
Not Available
19
ROD END RH
7060125
7060165
$99,74 Unit Price incl. VAT
19
ROD END;LH
7060124
7060164
$99,74 Unit Price incl. VAT
20
NUT LH (10)
7542424
$1,56 Unit Price incl. VAT
20
NUT HEX RH(10)
7542401
$4,19 Unit Price incl. VAT
21
ROD-DRAG LINK
5332712
9999999
Not Available
22
PLATELHBOOTSEAL
5210959
5210959-067
Not Available
23
NUT LOCK
7542403
9999999
Not Available
24
PLATE RH BOOT SEAL
5210904
9999999
Not Available
25
RIVET(10)
7621301
9999999
Not Available
26
BOOT-TIE ROD
5410328
9999999
Not Available
27
BOLT
7512404
$7,34 Unit Price incl. VAT
28
NUT
7542712
$17,84 Unit Price incl. VAT
29
WASHER
7555721
$2,09 Unit Price incl. VAT
30
WASHER WAVE
7555735
$7,34 Unit Price incl. VAT
31
BUSHING
3563907
$7,34 Unit Price incl. VAT
32
BUSHING-SPACER
5010161
9999999
Not Available
33
HEATER GRIP ASSEMBLY; HI/LO
2460311
$115,49 Unit Price incl. VAT
34
BOOT LH
5410388
9999999
Not Available
35
BOLT
7512658
9999999
Not Available
36
BLOCK-CTR.STEERING
5130534
Not Available
37
ROD TIE BLACK
5332713067
Not Available
38
BOLT
7512394
7512377
$9,44 Unit Price incl. VAT
39
FITTING-LUBE.
7080220
9999999
Not Available
40
NYLOK NUT
7542324
$1,56 Unit Price incl. VAT
41
SCREW SET
7512465
$7,34 Unit Price incl. VAT
42
COTTER PIN
7661203
$2,09 Unit Price incl. VAT
43
HOOP STEERING Substituted by 1011513-067 (400 600 600 SE)
1011513
Not Available
44
BOLT-CARRIAGE
7512262
9999999
Not Available
45
HANDLEBAR
5224413
9999999
Not Available
46
HANDLEBAR BLOCK; MEDIUM GLOSS BLACK
5630187067
Not Available
47
ROD TIE (BLK.)
5020432067
Not Available
47
LEVER ASMW/WARMER
2010094
9999999
Not Available
47
BOLT
7512254
9999999
Not Available

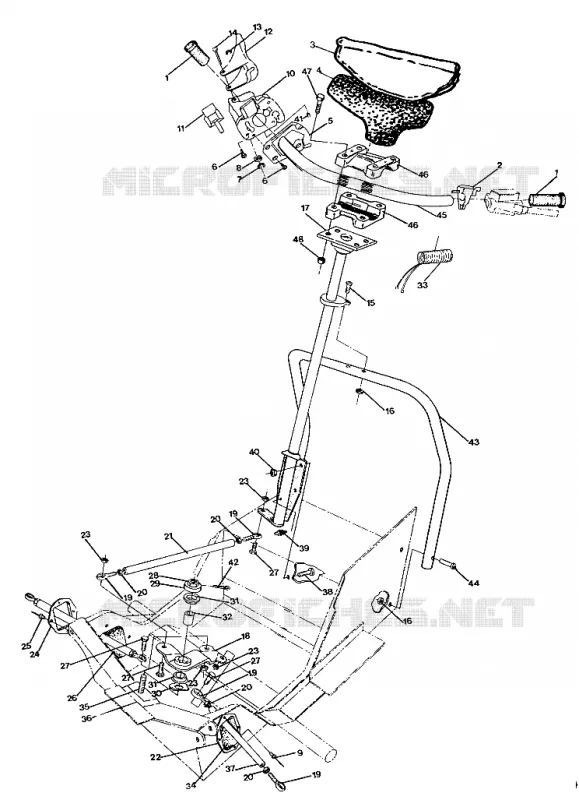

Find the detailed STEERING 500 AND 500 CLASSIC (4919251925020A) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
