1
Engine displacement
900
2
Year
2017
3
Trim
RANGER 900 EPS POLAND
4
Parts Catalog
STEERING
5
Parts Diagram
Parts Catalog
COOLING, WATERPUMP
by
FRONT SUSPENSION
STEERING
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
1
1
2
3
4
5
6
7
8
9
9
10
11
12
12
13
13
13
13
14
15
16
17
18
19
20
21
22
22
22
22
23
24
25
26
26
27
27
28
29
30
31
32
1
BOOT SEAL ROD END 10MM
5411920
5412929
$20,99 Unit Price incl. VAT
2
ROD END 10MM 1/2-20LH 42 DEG
7061054
7061138
$104,99 Unit Price incl. VAT
3
NUT JAM; LEFT
7547028
$4,19 Unit Price incl. VAT
4
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
5
BOOT CLAMP; SMALL
7082150
$12,59 Unit Price incl. VAT
6
PASSENGER SIDE BOOT RACK
5412013
$104,99 Unit Price incl. VAT
7
BOOT CLAMP; LARGE
7080979
$10,49 Unit Price incl. VAT
8
BOLT-SHOULDER M8-15 M6X1.0-BLK
7519980
$13,64 Unit Price incl. VAT
9
HEX FLANGE SCREW; 8 MM X 1.25 MM X 35 MM
7519052
$3,14 Unit Price incl. VAT
10
HEX FLANGE BOLT OLIVE 10MMX1.25MMX20MM
7518558
$7,34 Unit Price incl. VAT
11
HEX FLANGE BOLT; 8 MM X 1.25 MM X 20 MM
7518555
$4,19 Unit Price incl. VAT
12
STEERING BEARING
3514686
$16,79 Unit Price incl. VAT
13
NYLOC NUT
7547333
$3,14 Unit Price incl. VAT
14
STEERING WHEEL; 14 IN.
1823623
$246,74 Unit Price incl. VAT
15
NUT-HEX-M16X2 8 ZC NYL
7547506
$7,34 Unit Price incl. VAT
16
STEERING WHEEL CAP
5436536
$62,99 Unit Price incl. VAT
17
OIL LOCKING SHOCK ASSEMBLY
7044098
$178,49 Unit Price incl. VAT
18
STEERING BUSHING
7556675
$24,14 Unit Price incl. VAT
19
HEX FLANGE SCREW 10 MM X 1.50 MM X 35 MM
7518644
$9,44 Unit Price incl. VAT
20
EPAS MOUNT WELD; BLACK
1021526329
Not Available
21
NUT-NY INS;M10X1.5;HEX;ZINC;YW
7547385
$2,09 Unit Price incl. VAT
22
NYLOC OLIVE NUT; 8 MM X 1.25 MM
7547332
$7,34 Unit Price incl. VAT
23
DRIVER SIDE BOOT RACK
5412012
$115,49 Unit Price incl. VAT
24
BOLT 10 MM X 1.25 MM X 65 MM
7517909
$10,49 Unit Price incl. VAT
25
BOLT-M10X1.25X130 HXFLG-OLIVED
7518665
$25,19 Unit Price incl. VAT
26
ASM-POWER STEERING;RANGER
2413397
9999999
Not Available
26
POWER STEERING ASSEMBLY; RAGNER
2413661
9999999
Not Available
27
COTTER PIN
7661203
$2,09 Unit Price incl. VAT
28
STEERING GEAR BOX ASSEMBLY
1823902
$1 018,49 Unit Price incl. VAT
29
ASM-TILT STEER RVTD M10 EU BLK
1824449458
Not Available
30
NYLOK NUT
7546703
$2,09 Unit Price incl. VAT
31
STEERING SHAFT; UPPER
1823891
$272,99 Unit Price incl. VAT
32
STEERING SHAFT WITH JOINT; LOWER
1823667
$241,49 Unit Price incl. VAT

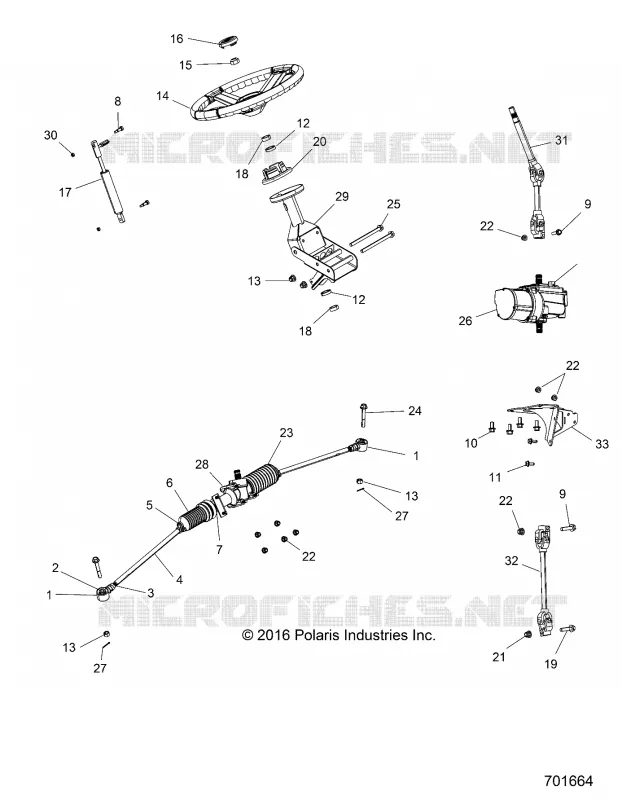

Find the detailed STEERING POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
