1
Engine displacement
autre
2
Year
1987
3
Trim
TRAIL - 0870761
4
Parts Catalog
ELECTRIC START COMPONENTS Trail ES (4912701270026A)
5
Parts Diagram
Parts Catalog
COOLING SYSTEM 600 (4912701270025A)
by
CRANKCASE SPORT (4912701270027A)
ELECTRIC START COMPONENTS Trail ES (4912701270026A)
1
STRAP
5430621
9999999
Not Available
2
CABLE STARTER. 9# BLACK
4010061
Not Available
3
BATTERY
4140005
9999999
Not Available
4
SCREW
7512252
9999999
Not Available
5
FOIL TAPE
5810345
9999999
Not Available
6
NUT; LOCK
7542322
9999999
Not Available
7
BOX BATTERY Substituted by 1011617-067
1011617
Not Available
8
SPRING LOCK WASHER
7552901
$2,09 Unit Price incl. VAT
9
CABLE STARTER 27 BL.
4010063
9999999
Not Available
10
SWITCH-MAGNETIC
3083211
4011335
$115,49 Unit Price incl. VAT
11
WASHER
7558203
$6,29 Unit Price incl. VAT
12
NUT NYLOK 10-24 Y
7541925
$1,56 Unit Price incl. VAT
13
BOLT CARRIAGE
7512331
$7,34 Unit Price incl. VAT
14
SCREW(10)
7511930
$4,19 Unit Price incl. VAT
15
RECTIFIER (Twin ES)
4060064
Not Available
16
SUBSTITUTED BY 2411592
2340008
$62,99 Unit Price incl. VAT
17
CABLE STARTER RED
2460256
Not Available
18
BATTERY STRAP HOOK
7010032
9999999
Not Available

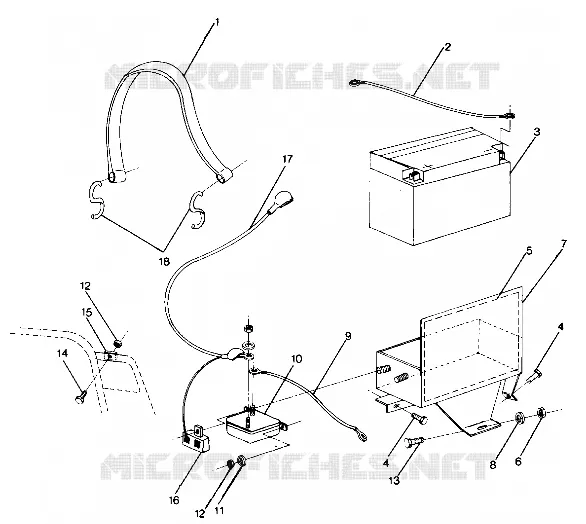

Find the detailed ELECTRIC START COMPONENTS Trail ES (4912701270026A) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
