ENGINE MOUNTING for POLARIS TRAIL BOSS

MOUNT MOTOR

3110026

9999999

Not Available

MOTOR MOUNT INSULATOR

5430802

9999999

Not Available

BOLT

7515321

9999999

Not Available

SPRING LOCK WASHER

7552901

$2,09 Unit Price incl. VAT

BOLT

7512232

$2,09 Unit Price incl. VAT

CABLE GND-ENGINE

4010132

9999999

Not Available

NUT LOCK

7542403

9999999

Not Available

MT ENG.TOP 250 BLK

5242073067

Not Available

FITTING VENT 1/8

7052192

9999999

Not Available

BOLT

7512566

9999999

Not Available

WASHER LOCK

7575202

$9,44 Unit Price incl. VAT

WASHER

5210748

$7,34 Unit Price incl. VAT

BUSHING

5430261

$13,64 Unit Price incl. VAT

SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]

*******

Not Available

FLAT WASHER

7555806

$1,56 Unit Price incl. VAT

BR8ES SPARK PLUG; NGK(4)

3070156

$7,34 Unit Price incl. VAT

INSUL.CABLE SOL.

5410346

9999999

Not Available

NARROW BAND CLAMP

7080511

$9,44 Unit Price incl. VAT

CLUTCH INTAKE BOOT

5410421

9999999

Not Available

PLATE FR.MTR.MT.

5220881067

Not Available

SPRING LOCK WASHER

7552603

$1,56 Unit Price incl. VAT

SCREW

7512490

$7,34 Unit Price incl. VAT

ENG.(S.B.)EC25PF-SB

3084717

9999999

Not Available

DECAL DRAIN RECOIL Substituted by 7078577

7075741

Not Available

LINE FUEL 1/8 ID 600 CM.

8360009600

Not Available

CHECKVALVE VENT

7052047

9999999

Not Available

FITTING; TEE

7052005

9999999

Not Available

MT REAR (300) BLK.

5241176067

Not Available

MOUNT ENGINE

3110028

9999999

Not Available

WASHER

7555801

$7,34 Unit Price incl. VAT

HOSE CLAMP

7080236

$3,14 Unit Price incl. VAT

FUEL LINE3/16 ID(600 CM.)

8450042600

Not Available

FLEXLOC NUT

7542411

$6,29 Unit Price incl. VAT

SMALL IN-LINE FILTER

2530009

$12,59 Unit Price incl. VAT

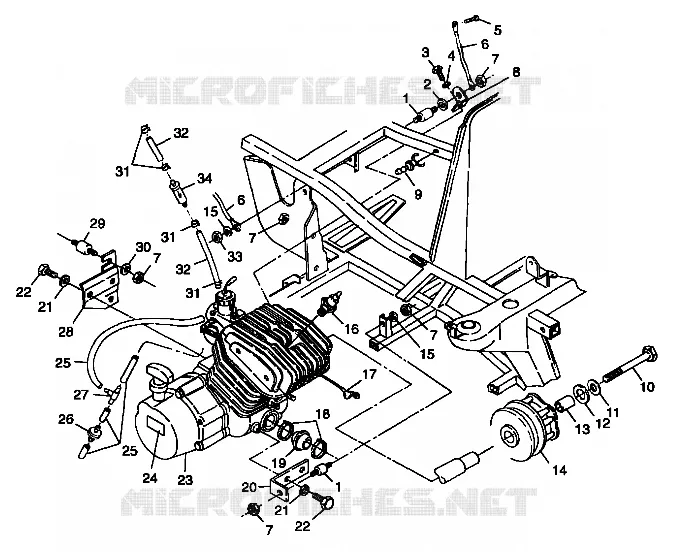

Find the detailed ENGINE MOUNTING POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
