1
Engine displacement
500
2
Year
1990
3
Trim
NOR 500 CLASSIC - N900865
4
Parts Catalog
DRIVEN CLUTCH 500 AND 500 CLASSIC (4916791679011A)
5
Parts Diagram
Parts Catalog
STEERING 500 AND 500 CLASSIC (4916791679009A)
by
DRIVE CLUTCH 500 AND 500 CLASSIC UPDATED 2/90 (4916791679012A)
DRIVEN CLUTCH 500 AND 500 CLASSIC (4916791679011A)
1
CLUTCH ASM(36 DEG.)
1322132
9999999
Not Available
1
CLUTCH DRIVEN ADJ.
1322151
9999999
Not Available
2
RETAINING RING
7714804
9999999
Not Available
3
WASHER 1.505 X 2.00 X 0.30
7556804
$1,56 Unit Price incl. VAT
4
RAMP-STA-MACHINED (34D)
5630168
9999999
Not Available
5
KEY SQUARE
7721103
9999999
Not Available
6
CLUTCH SPRING; RED
7041198
$104,99 Unit Price incl. VAT
7
DRIVEN BUSHING; LARGE
3569803
9999999
Not Available
8
SCREW
7511953
9999999
Not Available
9
RAMP BUTTON
5430466
$12,59 Unit Price incl. VAT
10
PLATE
5210749
9999999
Not Available
11
CAP DRIVEN (600 600 SE)
5230101
Not Available

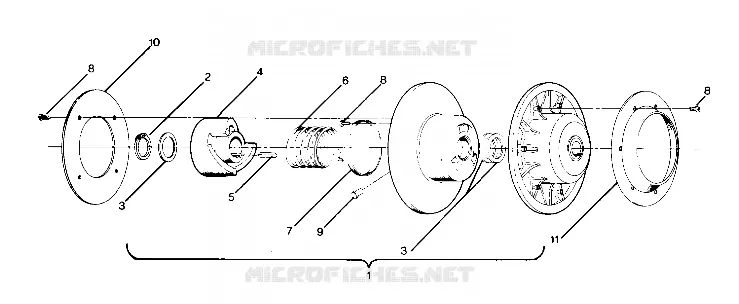

Find the detailed DRIVEN CLUTCH 500 AND 500 CLASSIC (4916791679011A) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
