STEERING for POLARIS RZR 570 EFI - R12VH57AD from 2012

STEERING

1

BOOT SEAL ROD END 10MM

5411920

5412929

$20,99 Unit Price incl. VAT

2

ROD END 10MM 1/2-20LH 42 DEG

7061054

7061138

$104,99 Unit Price incl. VAT

3

NUT JAM; LEFT

7547028

$4,19 Unit Price incl. VAT

4

SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]

*******

Not Available

5

BOOT CLAMP; SMALL

7080978

$4,19 Unit Price incl. VAT

6

PASSENGER SIDE BOOT RACK

5412013

$104,99 Unit Price incl. VAT

7

BOOT CLAMP; LARGE

7080979

$10,49 Unit Price incl. VAT

8

SHOULDER BOLT; 8-16 MM; 6 MM X 1.0 MM

7518786

$4,19 Unit Price incl. VAT

9

HEX FLANGE SCREW 10 MM X 1.50 MM X 35 MM

7518644

$9,44 Unit Price incl. VAT

10

WASHER-NEOPREME 28 OD X 20 ID

7556482

$7,34 Unit Price incl. VAT

11

WASHER-30MM ODX 21MM ID X 1.5

7556483

$7,34 Unit Price incl. VAT

12

STEERING SHAFT SPACER

5252796

$9,44 Unit Price incl. VAT

13

STEERING BEARING

3514686

$16,79 Unit Price incl. VAT

14

STEERING WHEEL; 14 IN.

1823623

$246,74 Unit Price incl. VAT

15

NUT-M16X2-6G

7547188

$10,49 Unit Price incl. VAT

16

STEERING WHEEL CAP

5436536

$62,99 Unit Price incl. VAT

17

PIVOT TUBE ASSEMBLY; BLACK

1017621

9999999

Not Available

18

FLAT WASHER

7558402

$1,56 Unit Price incl. VAT

19

STEERING SHAFT

1823727

$241,49 Unit Price incl. VAT

20

SCR-5/16-18X3.75 HXCP;GR5;LK-Y

7518895

$7,34 Unit Price incl. VAT

21

NUT-NY INS;M10X1.5;HEX;ZINC;YW

7547385

$2,09 Unit Price incl. VAT

22

NYLOK NUT

7546703

$2,09 Unit Price incl. VAT

23

DRIVER SIDE BOOT RACK

5412012

$115,49 Unit Price incl. VAT

24

BOLT 10 MM X 1.25 MM X 65 MM

7517909

$10,49 Unit Price incl. VAT

25

WASHER

7555919

$7,34 Unit Price incl. VAT

26

NYLOC NUT

7547333

$3,14 Unit Price incl. VAT

27

COTTER PIN

7661203

$2,09 Unit Price incl. VAT

28

STEERING GEAR BOX ASSEMBLY

1823632

$929,24 Unit Price incl. VAT

29

BOLT

7512325

$4,19 Unit Price incl. VAT

30

SHOULDER BOLT

7517607

$10,49 Unit Price incl. VAT

31

NYLOK NUT

7542451

$2,09 Unit Price incl. VAT

32

PEDAL PIVOT BUSHING

5431107

$16,79 Unit Price incl. VAT

33

OIL LOCKING SHOCK ASSEMBLY

7043810

$173,24 Unit Price incl. VAT

34

BOLT 5/16-18X3/4

7512371

$9,44 Unit Price incl. VAT

35

BOLT

7515382

$4,19 Unit Price incl. VAT

36

NYLOK NUT

7542324

$1,56 Unit Price incl. VAT

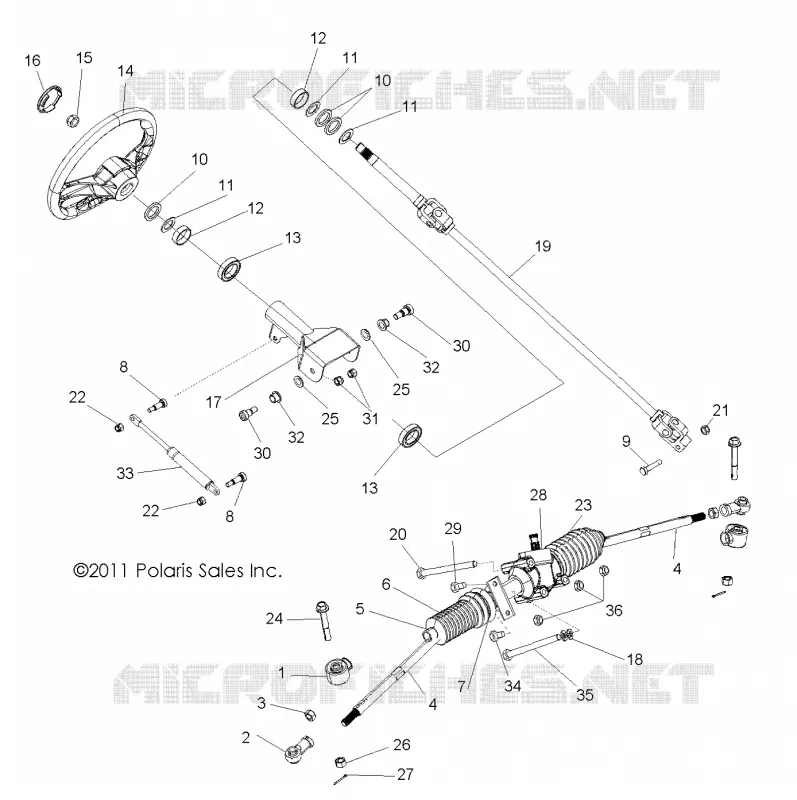

Find the detailed STEERING POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
