1
Engine displacement
autre
2
Year
1992
3
Trim
Euro Trail Boss 4x4 - S928139
4
Parts Catalog

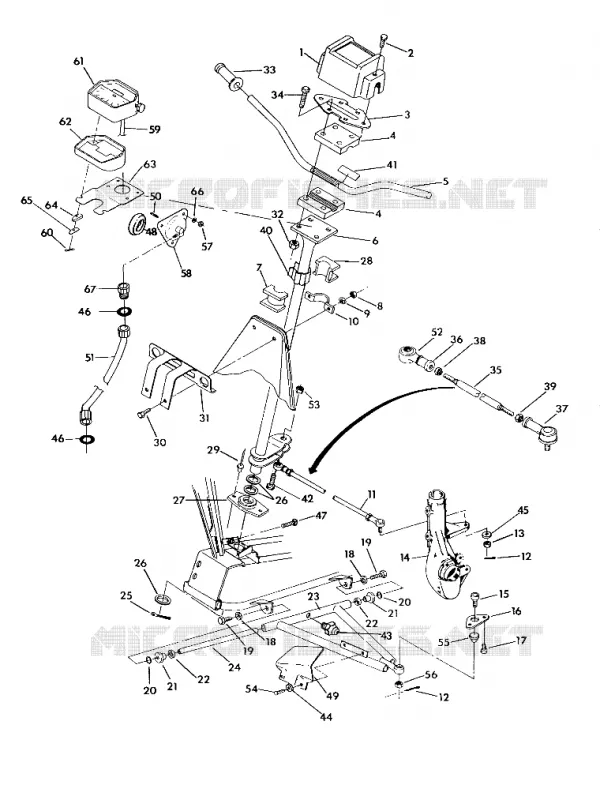

STEERING ASSEMBLY 350 4X4 / W928139 (4922832283013A)
5
Parts Diagram
Parts Catalog
DETAILS
by
CONTROL ASSEMBLY 350 4X4 / W928139 (4922832283015A)
STEERING ASSEMBLY 350 4X4 / W928139 (4922832283013A)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
44
45
46
47
48
1
1
2
2
3
3
4
4
4
4
5
5
6
6
7
7
8
8
9
9
10
10
11
11
12
12
12
12
13
13
14
14
14
14
14
14
14
14
15
15
16
16
17
17
18
18
18
18
19
19
19
19
20
20
20
20
21
21
21
21
22
22
22
22
23
23
23
23
23
23
23
23
24
24
25
25
26
26
26
26
27
27
28
28
29
29
30
30
31
31
32
32
33
33
34
34
35
35
36
36
37
37
38
38
39
39
40
40
41
41
42
42
43
43
44
44
45
45
46
46
46
46
47
47
48
48
49
49
49
49
49
49
49
49
50
50
51
51
52
52
53
53
54
54
55
55
56
56
58
58
35
35
60
60
61
61
61
61
62
62
63
63
64
64
65
65
66
66
67
67
1
1
2
2
3
3
4
4
4
4
5
5
6
6
7
7
8
8
9
9
10
10
11
11
12
12
12
12
13
13
14
14
14
14
14
14
14
14
15
15
16
16
17
17
18
18
18
18
19
19
19
19
20
20
20
20
21
21
21
21
22
22
22
22
23
23
23
23
23
23
23
23
24
24
25
25
26
26
26
26
27
27
28
28
29
29
30
30
31
31
32
32
33
33
34
34
35
35
36
36
37
37
38
38
39
39
40
40
41
41
42
42
43
43
44
44
45
45
46
46
46
46
47
47
48
48
49
49
49
49
49
49
49
49
50
50
51
51
52
52
53
53
54
54
55
55
56
56
58
58
35
35
60
60
61
61
61
61
62
62
63
63
64
64
65
65
66
66
67
67
1
WASHER; BAFFLE
1930662
9999999
Not Available
1
PAD; HANDLEBAR
5810379
9999999
Not Available
2
BAFFLE MASTER CYL.
1930673
9999999
Not Available
2
BOLT
7512286
7515197
$2,09 Unit Price incl. VAT
3
BOLT BRAKE LEVER
7512287
9999999
Not Available
3
MOUNT HDLBR. PAD
5220946
9999999
Not Available
4
DECALORIDE SWITCH
7072390
9999999
Not Available
4
HANDLEBAR BLOCK; MEDIUM GLOSS BLACK
5630187067
Not Available
5
DECAL THROTTLE(ENG.)
7072724
9999999
Not Available
5
TUBE HDLBR BLACK
5224316067
Not Available
6
CLAMP MASTER CYL.
5630342
9999999
Not Available
6
POST STEERING
1840106067
Not Available
7
BRKT;ORIDE SW.
5222318
5222475
Not Available
7
BUSHING STRG. UPPER
5430966
5433416
$16,79 Unit Price incl. VAT
8
NYLOK NUT
7542324
$1,56 Unit Price incl. VAT
8
BOLT SOCKET HEAD
7512290
$9,44 Unit Price incl. VAT
9
SW O RIDE REV.LIMIT.
4110083
9999999
Not Available
9
FLAT WASHER
7558402
$1,56 Unit Price incl. VAT
10
BRKT UP.STRG.BUSH BLK.
5220887067
Not Available
10
WASHER
7555708
9999999
Not Available
11
TIE ROD ASM. Substituted by 1822310
1822081
Not Available
11
COMPRESSION SPRING
7041203
9999999
Not Available
12
U-PACKING SEAL
5410164
9999999
Not Available
12
COTTER PIN
7661203
$2,09 Unit Price incl. VAT
13
NUT CASTLE(10)
7546904
9999999
Not Available
13
PISTON MASTER CYL.
5020599
9999999
Not Available
14
HUB STRUT ASM LH (Incl. 6 18 20 23 24)
1843033
Not Available
14
HUB STRUT ASM RH (Incl. 6 18 20 23 24)
1843034
Not Available
14
O-RING
5410163
$3,14 Unit Price incl. VAT
15
BALL JOINT
7080364
7061306
$52,49 Unit Price incl. VAT
15
OIL SEAL
3610022
9999999
Not Available
16
BALL JOINT BRACKET
5211121
$62,99 Unit Price incl. VAT
16
BUSHING BRAKE LEVER
5332931
9999999
Not Available
17
SOCKET BOLT
7512284
$2,09 Unit Price incl. VAT
17
LEVER BRAKE
5630387
9999999
Not Available
18
NUT
7542124
7542122
$2,09 Unit Price incl. VAT
18
SPRING LOCK WASHER
7552603
$1,56 Unit Price incl. VAT
19
SCREW
7511866
$9,44 Unit Price incl. VAT
19
BOLT(10)
7515458
7512492
$2,09 Unit Price incl. VAT
20
O RING
5410458
9999999
Not Available
20
BUSHING PK.BRAKE LEVER
5020545
9999999
Not Available
21
BUSHING A-ARM
3563604
9999999
Not Available
21
LEVER PARK.BRAKE
2050060
9999999
Not Available
22
SPRING PK.BRAKE
7041229
9999999
Not Available
22
WASHER
7555774
9999999
Not Available
23
HSG.;MASTER CYL.
5130772
9999999
Not Available
23
A FRAME LH
1580033067
Not Available
23
A FRAME RH
1580034067
Not Available
24
SHAFT A-ARM
5020529
9999999
Not Available
24
MASTER CYLINDER GASKET
5410527
9999999
Not Available
25
COVER MASTER CYL.
5630338
9999999
Not Available
25
COTTER PIN
7661404
$9,44 Unit Price incl. VAT
26
BUSHING
7555781
9999999
Not Available
26
SCREW W/WASHER
7512050
9999999
Not Available
27
BUSHING STRG. LOWER
5430895
9999999
Not Available
27
THROTTLE CONTROL ASM.
2010091
9999999
Not Available
28
BUSHING UPPER STRG.
5431138
5433415
$16,79 Unit Price incl. VAT
28
CABLE THROTTLE CONTROL
7080375
9999999
Not Available
29
LINE BRAKE UP. W/FTGS.
1930633
1930748
$167,99 Unit Price incl. VAT
29
RIVET; (MONOBOLT)
7661620
7661637
$2,09 Unit Price incl. VAT
30
SCREW
7512307
$7,34 Unit Price incl. VAT
30
LINE BRAKE LH.FRT W/FTGS.
1930631
9999999
Not Available
31
LINE BRAKE RH FRT.
1930634
9999999
Not Available
31
BRKT; IGN. PANEL
5220965067
Not Available
32
NYLOK NUT
7542122
$2,09 Unit Price incl. VAT
32
LINE;BRAKE;R.;W/FTGS.
1930632
9999999
Not Available
33
GRIP; HANDLEBAR
5431030
5433834-070
$52,49 Unit Price incl. VAT
33
FITTING TEE
7052044
Not Available
34
BOLT
7512265
9999999
Not Available
34
PAD GAS TANK [No Longer Available]
5850040
Not Available
35
TIE ROD
5020528
9999999
Not Available
35
CABLE TIE
7080138
$5,24 Unit Price incl. VAT
36
MASTER CYL.ASM.(ATV)
2050055
2050073
$456,74 Unit Price incl. VAT
36
ROD END; RH
7060149
9999999
Not Available
37
ROD END
7060147
9999999
Not Available
37
SCREW BUTTON HEAD
2010079
9999999
Not Available
38
NUT HEX RH(10)
7542401
$4,19 Unit Price incl. VAT
38
CAP
2010080
9999999
Not Available
39
PACKING THROTTLE
2010081
9999999
Not Available
39
NUT LH 10 MM.
7546902
9999999
Not Available
40
CLIP
7080278
9999999
Not Available
40
PLATE
2010075
9999999
Not Available
41
HOLDER
2010078
9999999
Not Available
41
DECAL O#RIDE SW.(4X4) Substituted by 7076273
7072827
Not Available
42
BOLT; HEX.
2010076
9999999
Not Available
42
BOLT
7515507
9999999
Not Available
43
FITTING LUBRICATION THREADED(1
7080433
$2,09 Unit Price incl. VAT
43
SCREW SEMS
2010077
9999999
Not Available
44
WASHER
7555792
$9,44 Unit Price incl. VAT
44
ROLLER BRAKE LEVER
5020598
9999999
Not Available
45
PINBRAKELEVER ROLLER
7661627
9999999
Not Available
45
FLAT WASHER
7555806
$1,56 Unit Price incl. VAT
46
RING RETAINING
7710425
9999999
Not Available
46
SEAL SPEEDO.CABLE
3280132
9999999
Not Available
47
SCREW SPEC.
5020601
9999999
Not Available
47
BOOT ORIDE SW.
7080379
9999999
Not Available
48
SWITCH ETC REPL.(2WD-4X6)
4110131
9999999
Not Available
48
SEAL ANGLE DRIVE
3280131
9999999
Not Available
49
SHIELD RH CV JOINT
5431149
9999999
Not Available
49
SHIELD LH CV JOINT
5431150
9999999
Not Available
50
KEY SQUARESPEEDO.
3280134
9999999
Not Available
51
CABLE; SPEEDOMETER
3280130
9999999
Not Available
52
ROD END SEAL BOOT
5410540
9999999
Not Available
53
NUT LOCK
7542403
9999999
Not Available
54
SCREW
7512017
9999999
Not Available
55
BOOT; RUBBER
5410548
5412658
$9,44 Unit Price incl. VAT
56
CASTLE NUT
7542438
$3,14 Unit Price incl. VAT
58
ADAPTER;DRIVE;(1:1.2);ATV
3280128
9999999
Not Available
59
CABLE TIE
7080138
$5,24 Unit Price incl. VAT
60
HAIRPIN COTTER
7660701
9999999
Not Available
61
SPEEDOMETER ATV MPH
3280129
9999999
Not Available
61
SPEEDO.(KPH) SCAND.ATV
3280135
9999999
Not Available
62
MOUNT SPEEDOMETER
5410546
9999999
Not Available
63
BRACKET SPEEDO
5222269067
Not Available
64
SPACER SPEEDO.MTG.
5810442
9999999
Not Available
65
PLATE MTG (SPEEDO)
5211189
9999999
Not Available
66
WASHER
7555725
9999999
Not Available
67
BUSHING SPEEDO.DRIVE
3280133
9999999
Not Available

Find the detailed STEERING ASSEMBLY 350 4X4 / W928139 (4922832283013A) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.

Other Parts for Euro Trail Boss 4x4 - S928139

BODY FRAME 350 4X4 / W928139 (4922832283001A)

BODY FRAME 350 4X4 / W928139 (4922832283001A)

for Euro Trail Boss 4x4 - S928139 from 1992

FRAME ASSEMBLY W/ RACKS 350 4X4 / W928139 (4922832283003A)

FRAME ASSEMBLY W/ RACKS 350 4X4 / W928139 (4922832283003A)

for Euro Trail Boss 4x4 - S928139 from 1992

FRONT DRIVE ASSEMBLY 350 4X4 / W928139 (4922832283010A)

FRONT DRIVE ASSEMBLY 350 4X4 / W928139 (4922832283010A)

for Euro Trail Boss 4x4 - S928139 from 1992

DETAILS

DETAILS

for Euro Trail Boss 4x4 - S928139 from 1992

DETAILS

DETAILS

for Euro Trail Boss 4x4 - S928139 from 1992

STEERING ASSEMBLY 350 4X4 / W928139 (4922832283013A)

STEERING ASSEMBLY 350 4X4 / W928139 (4922832283013A)

for Euro Trail Boss 4x4 - S928139 from 1992

CONTROL ASSEMBLY 350 4X4 / W928139 (4922832283015A)

CONTROL ASSEMBLY 350 4X4 / W928139 (4922832283015A)

for Euro Trail Boss 4x4 - S928139 from 1992

REAR WHEEL DRIVE ASSEMBLY 350 4X4 / W928139 (4922832283020A)

REAR WHEEL DRIVE ASSEMBLY 350 4X4 / W928139 (4922832283020A)

for Euro Trail Boss 4x4 - S928139 from 1992

SWING ARM WLD. / REAR SHOCK ASSEMBLY 350 4X4 / W928139 (4922832283021A)

SWING ARM WLD. / REAR SHOCK ASSEMBLY 350 4X4 / W928139 (4922832283021A)

for Euro Trail Boss 4x4 - S928139 from 1992

AIR BOX 350 4X4 / W928139 (4922832283023A)

AIR BOX 350 4X4 / W928139 (4922832283023A)

for Euro Trail Boss 4x4 - S928139 from 1992

CLUTCH COVER ASSEMBLY 350 4X4 / W928139 (4922832283024A)

CLUTCH COVER ASSEMBLY 350 4X4 / W928139 (4922832283024A)

for Euro Trail Boss 4x4 - S928139 from 1992

REAR BRAKE 350 4X4 / W928139 (4922832283029A)

REAR BRAKE 350 4X4 / W928139 (4922832283029A)

for Euro Trail Boss 4x4 - S928139 from 1992

FRONT BRAKE 350 4X4 / W928139 (4922832283030A)

FRONT BRAKE 350 4X4 / W928139 (4922832283030A)

for Euro Trail Boss 4x4 - S928139 from 1992

WIRING HARNESS 350 4X4 / W928139 (4922832283031A)

WIRING HARNESS 350 4X4 / W928139 (4922832283031A)

for Euro Trail Boss 4x4 - S928139 from 1992

GEARCASE ASSEMBLY 350 4X4 / W928139 (4922832283033A)

GEARCASE ASSEMBLY 350 4X4 / W928139 (4922832283033A)

for Euro Trail Boss 4x4 - S928139 from 1992

WATER PUMP ASSEMBLY 350 4X4 / W928139 (4922832283040A)

WATER PUMP ASSEMBLY 350 4X4 / W928139 (4922832283040A)

for Euro Trail Boss 4x4 - S928139 from 1992

CARBURETOR 350 4X4 / W928139 (4922832283041A)

CARBURETOR 350 4X4 / W928139 (4922832283041A)

for Euro Trail Boss 4x4 - S928139 from 1992

STARTING MOTOR ASSEMBLY 350 4X4 / W928139 (4922832283042A)

STARTING MOTOR ASSEMBLY 350 4X4 / W928139 (4922832283042A)

for Euro Trail Boss 4x4 - S928139 from 1992

MAGNETO ASSEMBLY 350 4X4 / W928139 (4922832283043A)

MAGNETO ASSEMBLY 350 4X4 / W928139 (4922832283043A)

for Euro Trail Boss 4x4 - S928139 from 1992

RECOIL STARTER ASSEMBLY 350 4X4 / W928139 (4922832283044A)

RECOIL STARTER ASSEMBLY 350 4X4 / W928139 (4922832283044A)

for Euro Trail Boss 4x4 - S928139 from 1992

SHIFT LINKAGE ASSEMBLY NORWEGIAN 350 4X4 (4922912291039A)

SHIFT LINKAGE ASSEMBLY NORWEGIAN 350 4X4 (4922912291039A)

for Euro Trail Boss 4x4 - S928139 from 1992

PARKING BRAKE NORWEGIAN 350 4X4 (4922912291051A)

PARKING BRAKE NORWEGIAN 350 4X4 (4922912291051A)

for Euro Trail Boss 4x4 - S928139 from 1992

CONTROL ASSEMBLY Swedish 35O 4X4 (4923732373017A)

CONTROL ASSEMBLY Swedish 35O 4X4 (4923732373017A)

for Euro Trail Boss 4x4 - S928139 from 1992

GEARCASE ASSEMBLY SWEDISH 350 4X4 (4923732373037A)

GEARCASE ASSEMBLY SWEDISH 350 4X4 (4923732373037A)

for Euro Trail Boss 4x4 - S928139 from 1992

ENGINE MOUNTS EXHAUST 350 4X4 / W928139 (4922832283005A)

ENGINE MOUNTS EXHAUST 350 4X4 / W928139 (4922832283005A)

for Euro Trail Boss 4x4 - S928139 from 1992

COOLING SYSTEM 350 4X4 / W928139 (4922832283007A)

COOLING SYSTEM 350 4X4 / W928139 (4922832283007A)

for Euro Trail Boss 4x4 - S928139 from 1992

HEADLIGHT ASSEMBLY 350 4X4 / W928139 (4922832283008A)

HEADLIGHT ASSEMBLY 350 4X4 / W928139 (4922832283008A)

for Euro Trail Boss 4x4 - S928139 from 1992

FUEL TANK ASSEMBLY 350 4X4 / W928139 (4922832283009A)

FUEL TANK ASSEMBLY 350 4X4 / W928139 (4922832283009A)

for Euro Trail Boss 4x4 - S928139 from 1992

CV JOINT 350 4X4 / W928139 (4922832283017A)

CV JOINT 350 4X4 / W928139 (4922832283017A)

for Euro Trail Boss 4x4 - S928139 from 1992

CV JOINT 350 4X4 / W928139 (4922832283017B)

CV JOINT 350 4X4 / W928139 (4922832283017B)

for Euro Trail Boss 4x4 - S928139 from 1992

STRUT ASSEMBLY 350 4X4 / W928139 (4922832283018A)

STRUT ASSEMBLY 350 4X4 / W928139 (4922832283018A)

for Euro Trail Boss 4x4 - S928139 from 1992

FRONT WHEEL ASSEMBLY 350 4X4 / W928139 (4922832283019A)

FRONT WHEEL ASSEMBLY 350 4X4 / W928139 (4922832283019A)

for Euro Trail Boss 4x4 - S928139 from 1992

DRIVE CLUTCH ASSEMBLY 350 4X4 / W928139 (4922832283025A)

DRIVE CLUTCH ASSEMBLY 350 4X4 / W928139 (4922832283025A)

for Euro Trail Boss 4x4 - S928139 from 1992

DRIVEN CLUTCH ASSEMBLY 350 4X4 / W928139 (4922832283026A)

DRIVEN CLUTCH ASSEMBLY 350 4X4 / W928139 (4922832283026A)

for Euro Trail Boss 4x4 - S928139 from 1992

RIGHT CHAIN COVER ASSEMBLY 350 4X4 / W928139 (4922832283027A)

RIGHT CHAIN COVER ASSEMBLY 350 4X4 / W928139 (4922832283027A)

for Euro Trail Boss 4x4 - S928139 from 1992

RH GEARCASE/BRAKEMOUNTING 350 4X4/W928139 (4922832283028A)

RH GEARCASE/BRAKEMOUNTING 350 4X4/W928139 (4922832283028A)

for Euro Trail Boss 4x4 - S928139 from 1992

SHIFT LINKAGE ASSEMBLY 350 4X4 / W928139 (4922832283035A)

SHIFT LINKAGE ASSEMBLY 350 4X4 / W928139 (4922832283035A)

for Euro Trail Boss 4x4 - S928139 from 1992

CRANKCASE AND CYLINDER 350 4X4 / W928139 (4922832283037A)

CRANKCASE AND CYLINDER 350 4X4 / W928139 (4922832283037A)

for Euro Trail Boss 4x4 - S928139 from 1992

CRANKSHAFT AND PISTON 350 4X4/W928139 (4922832283038A)

CRANKSHAFT AND PISTON 350 4X4/W928139 (4922832283038A)

for Euro Trail Boss 4x4 - S928139 from 1992

OIL PUMP ASSEMBLY 350 4X4 / W928139 (4922832283039A)

OIL PUMP ASSEMBLY 350 4X4 / W928139 (4922832283039A)

for Euro Trail Boss 4x4 - S928139 from 1992

FAN MOTOR 350 4X4 / W928139 (4922832283045A)

FAN MOTOR 350 4X4 / W928139 (4922832283045A)

for Euro Trail Boss 4x4 - S928139 from 1992

FRAME ASSEMBLY W/RACKS NORWEGIAN 350 4X4 (4922912291003A)

FRAME ASSEMBLY W/RACKS NORWEGIAN 350 4X4 (4922912291003A)

for Euro Trail Boss 4x4 - S928139 from 1992

CONTROL ASSEMBLY Norwegian 35O 4X4 (4922912291017A)

CONTROL ASSEMBLY Norwegian 35O 4X4 (4922912291017A)

for Euro Trail Boss 4x4 - S928139 from 1992

GEARCASE ASSEMBLY NORWEGIAN 350 4X4 (4922912291037A)

GEARCASE ASSEMBLY NORWEGIAN 350 4X4 (4922912291037A)

for Euro Trail Boss 4x4 - S928139 from 1992

FRAME ASSEMBLY W/RACKS SWEDISH 350 4X4 (4923732373003A)

FRAME ASSEMBLY W/RACKS SWEDISH 350 4X4 (4923732373003A)

for Euro Trail Boss 4x4 - S928139 from 1992

SHIFT LINKAGE ASSEMBLY SWEDISH 350 4X4 (4923732373039A)

SHIFT LINKAGE ASSEMBLY SWEDISH 350 4X4 (4923732373039A)

for Euro Trail Boss 4x4 - S928139 from 1992

PARKING BRAKE SWEDISH 350 4X4 (4923732373051A)

PARKING BRAKE SWEDISH 350 4X4 (4923732373051A)

for Euro Trail Boss 4x4 - S928139 from 1992

POLARIS Euro Trail Boss 4x4 - S928139 1992

Euro Trail Boss 4x4 - S928139

Euro Trail Boss 4x4 - S928139

Model : Euro Trail Boss 4x4

Engine capacity : autre

Year : 1992

New and OEM parts
International Shipping
Official price POLARIS
A team of experts at your service
Secure Payment
By your side since 2001
Customer Reviews
4.2 /5
1764 Reviews
View all reviews
Spare parts catalogue for all brands
