FRONT STORAGE AND BUMPER MOUNTING for POLARIS SPORTSMAN 450 - A07MH46AA/AZ from 2007

FRONT STORAGE AND BUMPER MOUNTING

1

SCREW

7515399

9999999

Not Available

2

RIGHT SUPPORT RACK; MEDIUM GLOSS BLACK

1014592067

Not Available

2

SUPPORT RACK; LEFT; MEDIUM GLOSS BLACK

1014591067

Not Available

3

BOLT-5/16-18X1-3/4 HXFLNG GR5

7518341

$9,44 Unit Price incl. VAT

4

PLUG; FRAME

5810467

9999999

Not Available

5

FLANGE NUT

7542343

$9,44 Unit Price incl. VAT

6

WELD-BRUSHGUARD BLK

1015033067

Not Available

7

RADIATOR COVER; FRONT

5413189

9999999

Not Available

8

HINGE PIN; FRONT

5134576

9999999

Not Available

9

TURN LATCH; RIGHT; 1/4

7081422

9999999

Not Available

9

LATCH-1/4 TURN;DETENT;RH

7081242

9999999

Not Available

9

DETENT LATCH; 1/4 TURN; LEFT

7081241

9999999

Not Available

9

LATCH-1/4 TURN;DETENT;LH

7081421

$13,64 Unit Price incl. VAT

10

SCREW

7512076

$2,09 Unit Price incl. VAT

11

LATCH-WIRE

5334257

9999999

Not Available

12

RADIATOR SHIELD; SIDE; LEFT

5434314

9999999

Not Available

12

RADIATOR SHIELD; RIGHT

5434315

9999999

Not Available

13

TUFLOK RIVET

7661855

$2,09 Unit Price incl. VAT

14

RUBBER GROMMET; MOUNT; 25 IN.

5412504

$7,34 Unit Price incl. VAT

15

RADIATOR COVER; MESH

5435046

9999999

Not Available

16

BRUSH GUARD GRILL; MEDIUM GLOSS BLACK

5247507067

Not Available

17

SCR-#8X1 PN-PH H/L-Y

7518046

9999999

Not Available

18

BUMPER PANEL; FRONT; GLOSS BLACK

5435357070

Not Available

19

SCR-5/16-18X3/4 HX/W-TAP/R-M

7518383

$7,34 Unit Price incl. VAT

20

BOLT-5/16-18X2.25 FLG TAP/R-M

7518382

9999999

Not Available

21

WASHER-.327X.875X.090 FL-M

7556341

$3,14 Unit Price incl. VAT

22

ASM-FRONT BUMPER BLK

2633520070

Not Available

22

BUMPER FRONT BLK.

2633271070

Not Available

23

ASM-LOWER BOX;FRONT

2633377

2203484

$577,49 Unit Price incl. VAT

24

COMPARTMENT PLUG

5412981

5418084

$6,29 Unit Price incl. VAT

25

FRONT STORAGE BOX CHANNEL; FLAT BLACK

5247653418

Not Available

26

WASHER-.325X1.20X.090 FL-Y

7556175

$9,44 Unit Price incl. VAT

27

SCREW

7517208

$3,66 Unit Price incl. VAT

28

SEAL

5521693

9999999

Not Available

29

LID AND BUMPER SEAL

5521706

9999999

Not Available

30

FRONT SERVICE COVER ASSEMBLY

2633162

$293,99 Unit Price incl. VAT

31

NYLOK NUT

7542122

$2,09 Unit Price incl. VAT

32

SCR-1/4-20X1.25 TR/TX-M-GR.5

7518427

9999999

Not Available

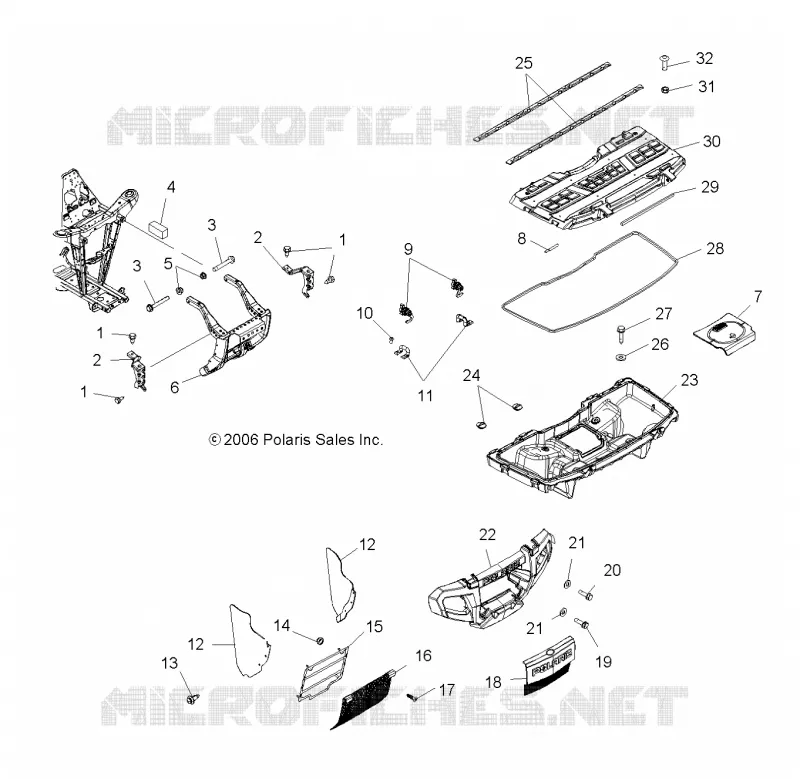

Find the detailed FRONT STORAGE AND BUMPER MOUNTING POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
