1
Engine displacement
600
2
Year
2017
3
Trim
600 INDY / SP
4
Parts Catalog
ENGINE, AIR INTAKE SYSTEM
5
Parts Diagram
Parts Catalog
DRIVE TRAIN, CLUTCH, SECONDARY
by
CRANKCASE
ENGINE, AIR INTAKE SYSTEM
1
1
2
3
4
5
6
7
8
9
10
11
12
13
1
15
16
1
SCR-10X 5/8 TX PN PLST-243
7518577
$4,19 Unit Price incl. VAT
1
INTAKE TUBE ASSEMBLY
1204587
9999999
Not Available
2
AIRBOX SEAL; FOAM
5813504
$16,79 Unit Price incl. VAT
3
BARRIER-AIRBOX REAR TOP
5813546
9999999
Not Available
4
AIRBOX; UPPER; LE
5439043
9999999
Not Available
5
INTAKE TUBE
5438303
$27,29 Unit Price incl. VAT
6
INTAKE TWO TUBES PLATE
5813641
9999999
Not Available
7
BARRIER-AIRBOX BACK
5813544
9999999
Not Available
8
CLIP
5242044
$17,84 Unit Price incl. VAT
9
BARRIER-AIRBOX LH
5813547
9999999
Not Available
10
CLAMP NARROW BAND
7080909
$14,69 Unit Price incl. VAT
11
BOOT-THROTTLE BODY 56MM 70DURO
5413741
9999999
Not Available
12
AIR SILENCER ASSEMBLY
1204440
$167,99 Unit Price incl. VAT
13
BARRIER-AIRBOX RH
5813655
9999999
Not Available
14
SCR-10X 5/8 TX PN PLST-243
7518577
$4,19 Unit Price incl. VAT
15
BARRIER-AIRBOX FRONT TOP
5813721
9999999
Not Available
16
ROSEBUD CLIP
4020139
$9,44 Unit Price incl. VAT

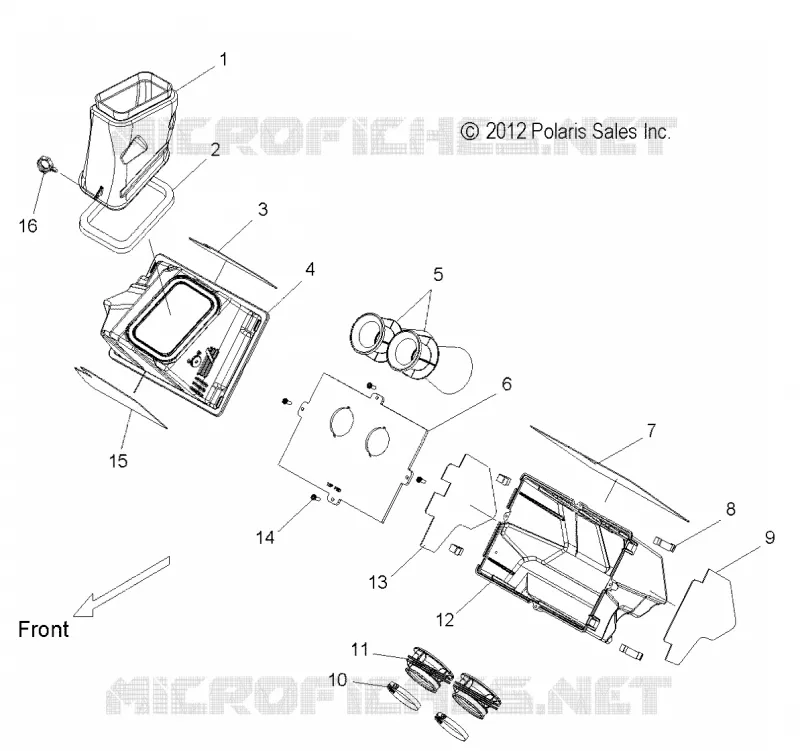

Find the detailed ENGINE, AIR INTAKE SYSTEM POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
