1
Engine displacement
570
2
Year
2023
3
Trim
RANGER SP 570 CREW
4
Parts Catalog
BODY, BOX MOUNTING
5
Parts Diagram
Parts Catalog
BED BOX
by
BUMPER
BODY, BOX MOUNTING
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
25
26
27
27
27
28
29
30
31
32
33
33
35
35
36
1
WELD-BOX SUPPORT;SHORT;BLK
1026404329
Not Available
2
BRKT-TAILGATE UPRIGHT;RH;M.BLK
5273930458
Not Available
3
SHIELD-BOX CARGO
5270826
$272,99 Unit Price incl. VAT
4
BRKT-TAILGATE UPRIGHT;LH;M.BLK
5274128458
Not Available
5
BRKT-TAILGATE SUPPORT;BLK
5272227329
Not Available
6
BRKT-TIE DOWN
5271482
$12,59 Unit Price incl. VAT
7
BOX BUMPER
5414343
$10,49 Unit Price incl. VAT
8
BUMPER-RUBBER TAILGATE
5416544
$6,29 Unit Price incl. VAT
9
BUMPER-STOP LOCATE
5417757
$23,09 Unit Price incl. VAT
10
BOX BUSHING; LATCH
5434226
$7,34 Unit Price incl. VAT
11
LATCH-TAILGATE HOOK
5459101
$7,34 Unit Price incl. VAT
12
ROLLER-CAM LATCH
5458307
$10,49 Unit Price incl. VAT
13
CAST-TAILGATE SUPPORT
5639302
$52,49 Unit Price incl. VAT
14
SPRING
7041687
$12,59 Unit Price incl. VAT
15
SINGLE LOBE DUMP BOX SHOCK
7044675
7046079
$104,99 Unit Price incl. VAT
16
HEX FLANGE BOLT; 8 MM X 1.25 MM X 20 MM
7518555
$4,19 Unit Price incl. VAT
17
SCR-M6X1X16 TR/TX-M
7518936
$7,34 Unit Price incl. VAT
18
HEX FLANGE SCREW 10 MM X 1.25 MM X 80 MM
7519363
7528444
$4,19 Unit Price incl. VAT
19
BOLT
7519650
$7,34 Unit Price incl. VAT
20
SCR-TXTH-M6X1.0X45 RIE
7519722
$3,14 Unit Price incl. VAT
21
SCR-HXFL-M8X1.25X85 10.9 ZFB
752133285
Not Available
22
SCR-TXTH-M6X1.0X20 RIE;SHDR
7520730
$9,44 Unit Price incl. VAT
23
SCR-HXFL-M6X1.0X30 10.9 ZFB
752133130
Not Available
24
NUT-HXFL-M8X1.25 8 ZTB NYL
7548028
$5,24 Unit Price incl. VAT
25
NYLOC OLIVE NUT; 8 MM X 1.25 MM
7547332
$7,34 Unit Price incl. VAT
26
NYLOC NUT
7547333
$3,14 Unit Price incl. VAT
27
NUT-M6X1.0 FLG-NYLOC-OLIVE D
7547339
$2,09 Unit Price incl. VAT
28
WASHER
7556045
$16,79 Unit Price incl. VAT
29
RIVET
7621460
$2,09 Unit Price incl. VAT
30
HITCH PIN CLIP; .148 X 3 1/16
7661067
$4,19 Unit Price incl. VAT
31
SCR-HXFL-M8X1.25X45 10.9 ZFB
752133245
Not Available
32
BRKT-PLATE CAM ECOAT
5271383329
Not Available
33
BKT-SPACER BLK
5271384329
Not Available
35
WSHR-7.1X35.3X9.7 ZTB
7558770
$9,44 Unit Price incl. VAT
36
WELD-BOX LATCH;BLK
1026407458
Not Available

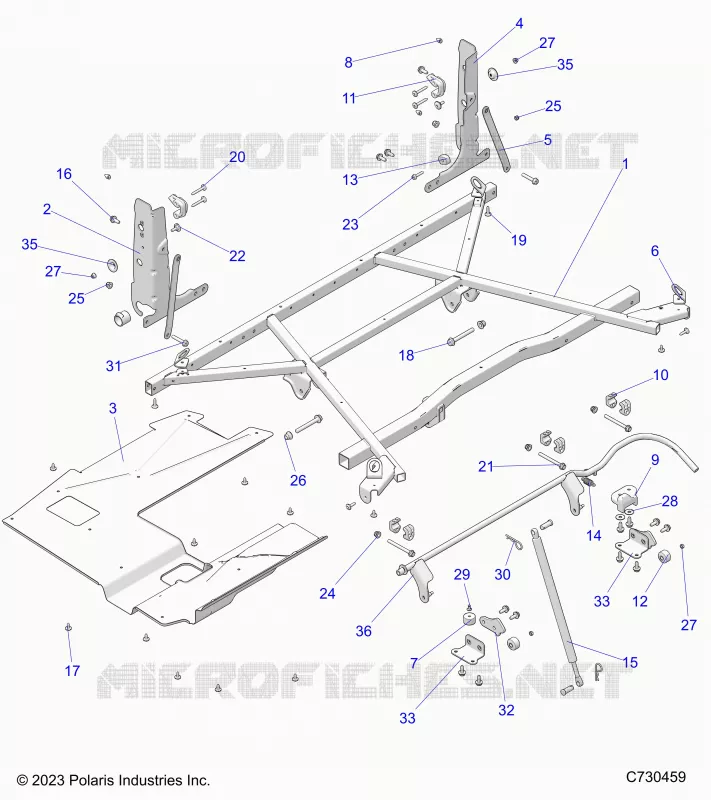

Find the detailed BODY, BOX MOUNTING POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
