1
Engine displacement
800
2
Year
2020
3
Trim
800 RUSH PRO-S
4
Parts Catalog
WIRE HARNESS
5
Parts Diagram
Parts Catalog
BATTERY AND CABLES
by
CRANKCASE
WIRE HARNESS
1
2
3
4
5
5
5
5
6
6
6
6
7
7
7
8
8
9
9
9
10
10
11
12
13
14
15
16
17
18
19
20
20
21
22
23
1
MAIN HARNESS; STD
2414416
9999999
Not Available
2
DIAGNOSTIC COVER WITH CLIP
4012170
4083556
$15,00 Unit Price incl. VAT
3
CAPACITOR-22 000 MICRO F
4015986
$136,49 Unit Price incl. VAT
4
FILTER CAPACITOR
4011441
$194,24 Unit Price incl. VAT
5
COVER-FUSEHOLDER
4012260
$19,94 Unit Price incl. VAT
5
FUSE-2AMP ATM BLADE STYLE MINI
4010752
$10,49 Unit Price incl. VAT
6
MICRO RELAY
4011998
$99,74 Unit Price incl. VAT
7
DIODE-6 AMP
2410000
$73,49 Unit Price incl. VAT
8
HARNESS COVER
2687630
$26,24 Unit Price incl. VAT
8
HARNESS COVER; LARGE
2687631
$47,24 Unit Price incl. VAT
9
TIE CABLE; 14 IN
7080761
$5,24 Unit Price incl. VAT
9
CABLE TIE
7080138
$5,24 Unit Price incl. VAT
9
CABLE TIE; 11 IN
7080492
$5,24 Unit Price incl. VAT
10
ROUTING CLIP
7081496
$9,44 Unit Price incl. VAT
11
STRAP-CABLE TIEW/EDGECLIP3-6MM
7081824
$26,24 Unit Price incl. VAT
12
HOOD HARNESS
2413200
$293,99 Unit Price incl. VAT
13
HOOD HARNESS
2413401
$330,74 Unit Price incl. VAT
14
JUMPER-TAILLIGHT ACC BRKOUT
2414312
$89,24 Unit Price incl. VAT
15
HARNESS-USB MFD RZN
2412818
$99,74 Unit Price incl. VAT
16
E-START HARNESS
2414828
$209,99 Unit Price incl. VAT
17
SEALED CIRCUT BREAKER; 20 AMP
2410881
$141,74 Unit Price incl. VAT
18
ELECTRONIC OIL PUMP JUMPER
2412793
$104,99 Unit Price incl. VAT
19
CAPACITOR-66 000 MICRO F
4015987
$136,49 Unit Price incl. VAT
20
CLAMP-HAYCO#3357 7/16CABLE BLK
7082471
9999999
Not Available
20
RIVET-4.8MM DIA-1.5-6.0GRIP(4)
7662251
$3,66 Unit Price incl. VAT
21
SCR-TXTH-M5X0.8X25 T40 ZPB
7520280
$6,29 Unit Price incl. VAT
22
CLIP-EDGE 1-3MM THICKNESS
7082401
$13,64 Unit Price incl. VAT
23
FUSE 10 AMP
2434016
$10,49 Unit Price incl. VAT

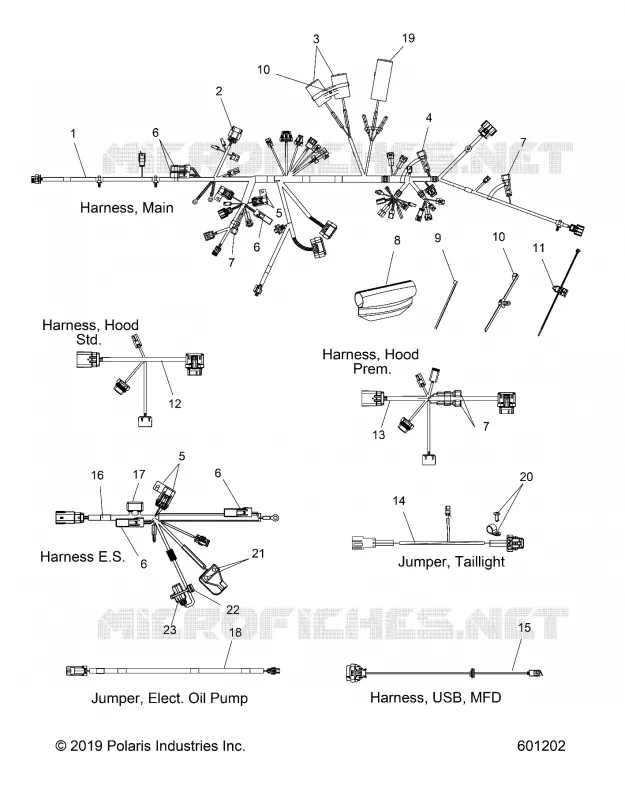

Find the detailed WIRE HARNESS POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
