1
Engine displacement
650
2
Year
2023
3
Trim
650 INDY VR1 137
4
Parts Catalog
CHASSIS, CLUTCH GUARD, FOOTRESTS, AND RUNNINGBOARDS
5
Parts Diagram
Parts Catalog
REFERENCES, OWNERS MANUAL, TOOLS, BELT HOLDER
by
CHASSIS, CHASSIS ASM. AND OVER STRUCTURE
CHASSIS, CLUTCH GUARD, FOOTRESTS, AND RUNNINGBOARDS
1
2
2
3
4
4
4
4
4
4
4
4
4
4
5
5
6
6
6
6
6
7
7
8
8
8
8
8
9
9
9
10
10
11
12
12
12
12
12
13
13
13
13
13
14
15
16
17
18
19
1
CLOSEOFF-FOOTREST RH
5272699
$157,49 Unit Price incl. VAT
2
RIVET 4.8 MM
7661973
$2,09 Unit Price incl. VAT
3
ASM-CONSOLE SUPPORT
1027963
1028623
$62,99 Unit Price incl. VAT
4
RIVET
7661637
$2,09 Unit Price incl. VAT
5
U CLIP; 6.0 MM X 1.0 MM
7547366
$9,44 Unit Price incl. VAT
6
SUPPORT-FOOTREST RH MACH LFTLM
5143267801
Not Available
6
SUPPORT-FOOTREST RH MACH BLK
5143267067
Not Available
6
SUPPORT-FOOTREST RH MACH PBLUE
5143267751
Not Available
6
SUPPORT-FOOTREST RH MACH ORGB
5143267647
Not Available
6
SUPPORT-FOOTREST RH MACH RED
5143267293
Not Available
7
SCR-TXPH-M6X1.0X25 P80 ZC
7521292
$4,19 Unit Price incl. VAT
8
ASM-RUNNINGBOARD 137 RH BLK
1027427067
Not Available
8
ASM-RUNNINGBOARD 137 RH POLBLU
1027427751
Not Available
8
ASM-RUNNINGBOARD 137 RH LFTDLM
1027427801
Not Available
8
ASM-RUNNINGBOARD 137 RH RED
1027427293
Not Available
8
ASM-RUNNINGBOARD 137 RH ORG
1027427647
Not Available
9
HEX FLANGE NUT; 6 MM X 1.0 MM
7547453
$7,34 Unit Price incl. VAT
10
WASHER
7556064
$9,44 Unit Price incl. VAT
11
ASM-CLUTCH GUARD SUPPORT
1025155
$73,49 Unit Price incl. VAT
12
ASM-RUNNINGBOARD 137 LH LFTDLM
1027426801
Not Available
12
ASM-RUNNINGBOARD 137 LH POLBLU
1027426751
Not Available
12
ASM-RUNNINGBOARD 137 LH BLK
1027426067
Not Available
12
ASM-RUNNINGBOARD 137 LH RED
1027426293
Not Available
12
ASM-RUNNINGBOARD 137 LH ORG
1027426647
Not Available
13
SUPPORT-FOOTREST LH MACH PBLUE
5143266751
Not Available
13
SUPPORT-FOOTREST LH MACH ORGB
5143266647
Not Available
13
SUPPORT-FOOTREST LH MACH RED
5143266293
Not Available
13
SUPPORT-FOOTREST LH MACH BLK
5143266067
Not Available
13
SUPPORT-FOOTREST LH MACH LFTLM
5143266801
Not Available
14
CLOSEOFF-FOOTREST LH
5269374
5274617
$157,49 Unit Price incl. VAT
15
BOLT-CARR M6X1.0X20 8.8 ZOD
7518994
$6,29 Unit Price incl. VAT
16
ASM-GUARD CLUTCH
1025167
1029233
$125,99 Unit Price incl. VAT
17
ASM-BRKT OIL BOTTLE FRONT
1025803
1029233
$125,99 Unit Price incl. VAT
18
ASM-BRKT OIL BOTTLE REAR
1025804
1029233
$125,99 Unit Price incl. VAT
19
PLUG-FOOTREST HOLE COVER
5418418
$15,74 Unit Price incl. VAT

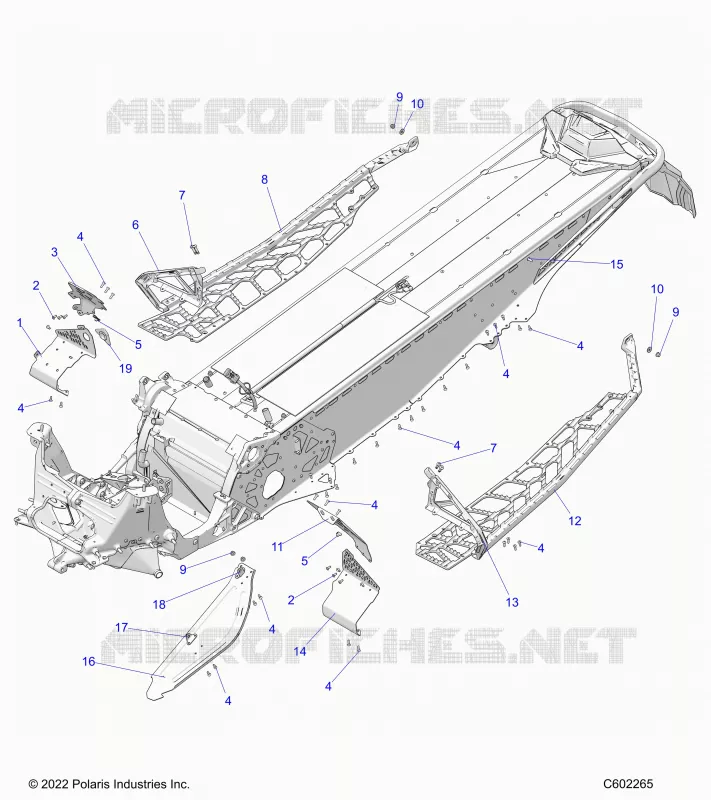

Find the detailed CHASSIS, CLUTCH GUARD, FOOTRESTS, AND RUNNINGBOARDS POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
