1
Engine displacement
570
2
Year
2018
3
Trim
SPORTSMAN 570 EPS TRACTOR SP
4
Parts Catalog
REAR SUSPENSION
5
Parts Diagram
Parts Catalog
STEERING, CONTROLS, THROTTLE ASM. AND CABLE
by
TOOL KIT
REAR SUSPENSION
1
2
3
3
3
4
4
5
5
6
6
7
7
8
8
8
8
9
10
11
11
11
11
12
13
14
15
16
17
18
18
19
19
20
20
21
22
22
23
24
24
25
26
26
27
27
27
28
29
30
1
WHEEL CARRIER BEARING; MACHINED
5135563
$121,79 Unit Price incl. VAT
2
BEARING BUSHING CARRIER; 7/16
5632291
$41,99 Unit Price incl. VAT
3
BUSHING CONTROL; LOWER; BLACK
5438902
$8,39 Unit Price incl. VAT
4
WASHER
7555740
$3,14 Unit Price incl. VAT
5
LOCK WASHER
7552614
$3,14 Unit Price incl. VAT
6
BOLT 7/16 X 14 X 2.75 GRADE 5
7517873
$4,19 Unit Price incl. VAT
7
SCREW
7515415
9999999
Not Available
8
NYLOCK NUT
7542439
$2,09 Unit Price incl. VAT
9
REAR SHOCK
7043100
$167,99 Unit Price incl. VAT
10
CAM ADJUSTING SPRING STEEL
5253768
$68,24 Unit Price incl. VAT
11
HD BUSHING W/ SEAL ASSEMBLY(4)
1543326
$24,14 Unit Price incl. VAT
12
SPRING-100# 11.3 FL M.BLK
7044717458
Not Available
13
RETAINER SPRING; STEEL
5251753
$19,94 Unit Price incl. VAT
14
BOLT-3/8-16X7 HEX FLANGE GR5
7518365
$13,64 Unit Price incl. VAT
15
CONTROL ARM BRACKET PIVOT; BLACK
5254267329
Not Available
16
SCREW
7517632
$10,49 Unit Price incl. VAT
17
SHORT A-ARM SHAFT
5020826
$23,09 Unit Price incl. VAT
18
WELD-UCA S REAR RH M.BLK
1023360458
Not Available
18
WELD-UCA S REAR LH M.BLK
1023359458
Not Available
19
SEALED PIVOT CAP ASSEMBLY; 10 MM
1543611
$10,49 Unit Price incl. VAT
20
SCR-3/8-24X1 3/4HXGR5P30Y
7520340
7521149
$6,29 Unit Price incl. VAT
21
C BORE A-ARM SHAFT
5139929
$52,49 Unit Price incl. VAT
22
CONTROL ARM WELD; LOWER; LEFT; MT BLK
1015888458
Not Available
22
WELD CONTROL; LOWER; RIGHT; MATTE BLACK
1015889458
Not Available
23
SCREW
7512084
$2,09 Unit Price incl. VAT
24
SHIELD-CV REAR BASIC BLK RH
5435009070
Not Available
24
BASIC CV SHIELD; REAR; LEFT; GLOSS BLACK
5435008070
Not Available
25
FITTING LUBRICATION THREADED(1
7080433
$2,09 Unit Price incl. VAT
26
WASHER
7556153
$3,66 Unit Price incl. VAT
27
BOLT
7515472
$4,19 Unit Price incl. VAT
28
FLANGED NUT; 3/8-16
7547180
$4,19 Unit Price incl. VAT
29
SHAFT-PIVOT 54MM M10
5141387
$19,94 Unit Price incl. VAT
30
STANDARD SUSPENSION BUSHING; 10 MM
5452233
$5,24 Unit Price incl. VAT

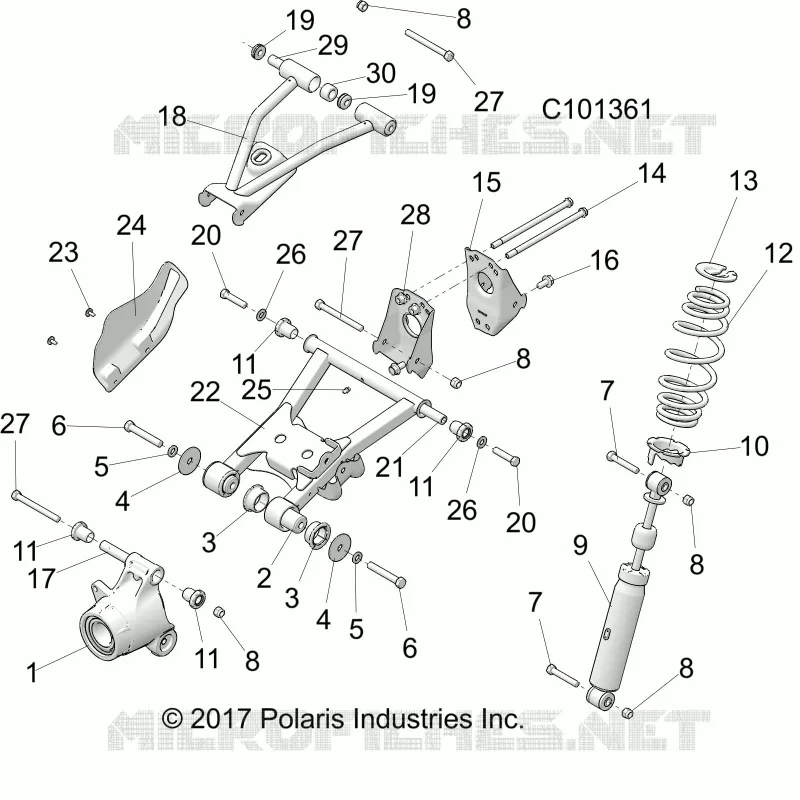

Find the detailed REAR SUSPENSION POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.

Other Parts for SPORTSMAN 570 EPS TRACTOR SP

DECALS

DECALS

for SPORTSMAN 570 EPS TRACTOR SP from 2018

FRONT CAB AND SIDE PANELS

FRONT CAB AND SIDE PANELS

for SPORTSMAN 570 EPS TRACTOR SP from 2018

REAR BODYWORK CAB, SEAT AND FOOTWELLS

REAR BODYWORK CAB, SEAT AND FOOTWELLS

for SPORTSMAN 570 EPS TRACTOR SP from 2018

BODY, RIGHT HAND SIDE PANEL HEAT SHIELD AND HARDWARE 1 UP

BODY, RIGHT HAND SIDE PANEL HEAT SHIELD AND HARDWARE 1 UP

for SPORTSMAN 570 EPS TRACTOR SP from 2018

FRONT BRAKE BRAKE LINES

FRONT BRAKE BRAKE LINES

for SPORTSMAN 570 EPS TRACTOR SP from 2018

BRAKES, REAR BRAKE LINES

BRAKES, REAR BRAKE LINES

for SPORTSMAN 570 EPS TRACTOR SP from 2018

DRIVE TRAIN, FRONT GEARCASE MOUNTING

DRIVE TRAIN, FRONT GEARCASE MOUNTING

for SPORTSMAN 570 EPS TRACTOR SP from 2018

DRIVE TRAIN, GEAR SELECTOR

DRIVE TRAIN, GEAR SELECTOR

for SPORTSMAN 570 EPS TRACTOR SP from 2018

DRIVE TRAIN, SECONDARY CLUTCH

DRIVE TRAIN, SECONDARY CLUTCH

for SPORTSMAN 570 EPS TRACTOR SP from 2018

ELECTRICAL, BULBS

ELECTRICAL, BULBS

for SPORTSMAN 570 EPS TRACTOR SP from 2018

ELECTRICAL, HARNESS

ELECTRICAL, HARNESS

for SPORTSMAN 570 EPS TRACTOR SP from 2018

ELECTRICAL, TAILLAMPS

ELECTRICAL, TAILLAMPS

for SPORTSMAN 570 EPS TRACTOR SP from 2018

CAM CHAIN AND SPROCKET

CAM CHAIN AND SPROCKET

for SPORTSMAN 570 EPS TRACTOR SP from 2018

LONG BLOCK

LONG BLOCK

for SPORTSMAN 570 EPS TRACTOR SP from 2018

ENGINE, OIL FILTER AND DIPSTICK

ENGINE, OIL FILTER AND DIPSTICK

for SPORTSMAN 570 EPS TRACTOR SP from 2018

ENGINE, THROTTLE BODY AND FUEL RAIL

ENGINE, THROTTLE BODY AND FUEL RAIL

for SPORTSMAN 570 EPS TRACTOR SP from 2018

ENGINE, WATERPUMP IMPELLER AND COVER

ENGINE, WATERPUMP IMPELLER AND COVER

for SPORTSMAN 570 EPS TRACTOR SP from 2018

STEERING, CONTROLS, THROTTLE ASM. AND CABLE

STEERING, CONTROLS, THROTTLE ASM. AND CABLE

for SPORTSMAN 570 EPS TRACTOR SP from 2018

REAR SUSPENSION

REAR SUSPENSION

for SPORTSMAN 570 EPS TRACTOR SP from 2018

TOOL KIT

TOOL KIT

for SPORTSMAN 570 EPS TRACTOR SP from 2018

FUEL TANK ASM.

FUEL TANK ASM.

for SPORTSMAN 570 EPS TRACTOR SP from 2018

HEADLIGHT POD

HEADLIGHT POD

for SPORTSMAN 570 EPS TRACTOR SP from 2018

MIRRORSS

MIRRORSS

for SPORTSMAN 570 EPS TRACTOR SP from 2018

CHASSIS, FRAME

CHASSIS, FRAME

for SPORTSMAN 570 EPS TRACTOR SP from 2018

CHASSIS, HITCH

CHASSIS, HITCH

for SPORTSMAN 570 EPS TRACTOR SP from 2018

CONTROLS, THROTTLE ASSEMBLY, THROTTLE LEVER KIT

CONTROLS, THROTTLE ASSEMBLY, THROTTLE LEVER KIT

for SPORTSMAN 570 EPS TRACTOR SP from 2018

DRIVE TRAIN, FRONT DRIVE SHAFT

DRIVE TRAIN, FRONT DRIVE SHAFT

for SPORTSMAN 570 EPS TRACTOR SP from 2018

ELECTRICAL, HEADLIGHTS

ELECTRICAL, HEADLIGHTS

for SPORTSMAN 570 EPS TRACTOR SP from 2018

ELECTRICAL, HORN AND LICENSE PLATE LIGHT

ELECTRICAL, HORN AND LICENSE PLATE LIGHT

for SPORTSMAN 570 EPS TRACTOR SP from 2018

ELECTRICAL, IGNITION COIL, WIRE AND SPARK PLUG

ELECTRICAL, IGNITION COIL, WIRE AND SPARK PLUG

for SPORTSMAN 570 EPS TRACTOR SP from 2018

ELECTRICAL, SWITCHES, SENSORS AND ECM

ELECTRICAL, SWITCHES, SENSORS AND ECM

for SPORTSMAN 570 EPS TRACTOR SP from 2018

OIL PUMP

OIL PUMP

for SPORTSMAN 570 EPS TRACTOR SP from 2018

STARTER DRIVE

STARTER DRIVE

for SPORTSMAN 570 EPS TRACTOR SP from 2018

ENGINE, STATOR COVER AND FLYWHEEL

ENGINE, STATOR COVER AND FLYWHEEL

for SPORTSMAN 570 EPS TRACTOR SP from 2018

BODY, CLUTCH COVER

BODY, CLUTCH COVER

for SPORTSMAN 570 EPS TRACTOR SP from 2018

FRONT BUMPER AND MOUNTING

FRONT BUMPER AND MOUNTING

for SPORTSMAN 570 EPS TRACTOR SP from 2018

REAR BODYWORK RACK AND HAND GRIPS

REAR BODYWORK RACK AND HAND GRIPS

for SPORTSMAN 570 EPS TRACTOR SP from 2018

BODY, STORAGE BOX, REAR

BODY, STORAGE BOX, REAR

for SPORTSMAN 570 EPS TRACTOR SP from 2018

FRONT BRAKE CALIPER MOUNTING

FRONT BRAKE CALIPER MOUNTING

for SPORTSMAN 570 EPS TRACTOR SP from 2018

BRAKES, VALVE SYSTEM

BRAKES, VALVE SYSTEM

for SPORTSMAN 570 EPS TRACTOR SP from 2018

DRIVE TRAIN, FRONT GEARCASE

DRIVE TRAIN, FRONT GEARCASE

for SPORTSMAN 570 EPS TRACTOR SP from 2018

DRIVE TRAIN, FRONT PROP SHAFT

DRIVE TRAIN, FRONT PROP SHAFT

for SPORTSMAN 570 EPS TRACTOR SP from 2018

ELECTRICAL, BATTERY

ELECTRICAL, BATTERY

for SPORTSMAN 570 EPS TRACTOR SP from 2018

ELECTRICAL, GAUGES AND INDICATORS

ELECTRICAL, GAUGES AND INDICATORS

for SPORTSMAN 570 EPS TRACTOR SP from 2018

ENGINE, AIR INTAKE SYSTEM

ENGINE, AIR INTAKE SYSTEM

for SPORTSMAN 570 EPS TRACTOR SP from 2018

ENGINE, COOLING SYSTEM

ENGINE, COOLING SYSTEM

for SPORTSMAN 570 EPS TRACTOR SP from 2018

EXHAUST

EXHAUST

for SPORTSMAN 570 EPS TRACTOR SP from 2018

ENGINE, MOUNTING

ENGINE, MOUNTING

for SPORTSMAN 570 EPS TRACTOR SP from 2018

ENGINE, VALVE COVER

ENGINE, VALVE COVER

for SPORTSMAN 570 EPS TRACTOR SP from 2018

REFERENCE, OWNERS MANUAL

REFERENCE, OWNERS MANUAL

for SPORTSMAN 570 EPS TRACTOR SP from 2018

SUSPENSION, TORSION BAR

SUSPENSION, TORSION BAR

for SPORTSMAN 570 EPS TRACTOR SP from 2018

WHEELS, FRONT TIRE AND BRAKE DISC

WHEELS, FRONT TIRE AND BRAKE DISC

for SPORTSMAN 570 EPS TRACTOR SP from 2018

THERMOSTAT AND COVER

THERMOSTAT AND COVER

for SPORTSMAN 570 EPS TRACTOR SP from 2018

WHEELS, REAR TIRE AND BRAKE DISC

WHEELS, REAR TIRE AND BRAKE DISC

for SPORTSMAN 570 EPS TRACTOR SP from 2018

STORAGE, FRONT

STORAGE, FRONT

for SPORTSMAN 570 EPS TRACTOR SP from 2018

BRAKES, BRAKE FRONT BRAKE CALIPER

BRAKES, BRAKE FRONT BRAKE CALIPER

for SPORTSMAN 570 EPS TRACTOR SP from 2018

BRAKES, BRAKE REAR CALIPER

BRAKES, BRAKE REAR CALIPER

for SPORTSMAN 570 EPS TRACTOR SP from 2018

BRAKES, BRAKE PEDAL AND MASTER CYLINDER

BRAKES, BRAKE PEDAL AND MASTER CYLINDER

for SPORTSMAN 570 EPS TRACTOR SP from 2018

FRONT BRAKE BRAKE LEVER AND MASTER CYLINDER

FRONT BRAKE BRAKE LEVER AND MASTER CYLINDER

for SPORTSMAN 570 EPS TRACTOR SP from 2018

DRIVE TRAIN, MAIN GEARCASE

DRIVE TRAIN, MAIN GEARCASE

for SPORTSMAN 570 EPS TRACTOR SP from 2018

DRIVE TRAIN, MAIN GEARCASE MOUNTING

DRIVE TRAIN, MAIN GEARCASE MOUNTING

for SPORTSMAN 570 EPS TRACTOR SP from 2018

DRIVE TRAIN, PRIMARY CLUTCH

DRIVE TRAIN, PRIMARY CLUTCH

for SPORTSMAN 570 EPS TRACTOR SP from 2018

DRIVE TRAIN, REAR DRIVE SHAFT

DRIVE TRAIN, REAR DRIVE SHAFT

for SPORTSMAN 570 EPS TRACTOR SP from 2018

CRANKCASE

CRANKCASE

for SPORTSMAN 570 EPS TRACTOR SP from 2018

ENGINE, CRANKSHAFT, PISTON AND BALANCE SHAFT

ENGINE, CRANKSHAFT, PISTON AND BALANCE SHAFT

for SPORTSMAN 570 EPS TRACTOR SP from 2018

CYLINDER

CYLINDER

for SPORTSMAN 570 EPS TRACTOR SP from 2018

ENGINE, CYLINDER HEAD, CAMS AND VALVES

ENGINE, CYLINDER HEAD, CAMS AND VALVES

for SPORTSMAN 570 EPS TRACTOR SP from 2018

POWER STEERING EPS

POWER STEERING EPS

for SPORTSMAN 570 EPS TRACTOR SP from 2018

STEERING, HANDLEBAR CONTROLS

STEERING, HANDLEBAR CONTROLS

for SPORTSMAN 570 EPS TRACTOR SP from 2018

FRONT SUSPENSION

FRONT SUSPENSION

for SPORTSMAN 570 EPS TRACTOR SP from 2018

SUSPENSION, FRONT SHOCK

SUSPENSION, FRONT SHOCK

for SPORTSMAN 570 EPS TRACTOR SP from 2018

BODYWORK

BODYWORK

for SPORTSMAN 570 EPS TRACTOR SP from 2018

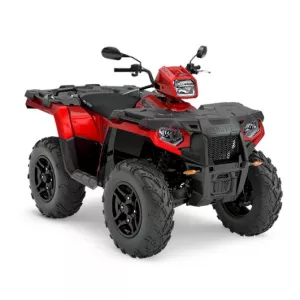

POLARIS SPORTSMAN 570 EPS TRACTOR SP 2018
