1
Engine displacement
800
2
Year
2019
3
Trim
800 SWITCHBACK PRO-S SC SELECT
4
Parts Catalog
REAR SUSPENSION AND TRACK
5
Parts Diagram
Parts Catalog
SWAY BAR
by
DRIVE TRAIN, CHAINCASE
REAR SUSPENSION AND TRACK
1
1
1
2
2
2
2
2
2
3
3
3
4
5
5
5
5
5
6
7
7
7
7
7
7
8
9
10
11
12
12
13
14
15
16
17
18
19
20
20
21
22
1
HEX FLANGE SCREW; 10 MM X 1.5 MM 35 MM
7518957
$6,29 Unit Price incl. VAT
2
HEX FLANGE SCREW; 10 MM X 1.5 MM X 40
7519216
$9,44 Unit Price incl. VAT
3
WASHER
7556153
$3,66 Unit Price incl. VAT
4
NYLOC NUT
7547333
$3,14 Unit Price incl. VAT
5
CLIP-TRACK FLAT 012-0107 (10
5251273
$18,89 Unit Price incl. VAT
5
LONG GUIDE TRACK CLIP
5251274
$13,64 Unit Price incl. VAT
5
TRACK-15X137 1.25 RIPSAW II
5414654
$1 125,59 Unit Price incl. VAT
5
TRACK-15X137 1.5 STORM 150
5416618
$1 102,49 Unit Price incl. VAT
5
COBRA TRACK; 137 IN X 1.352 IN
5413661
$1 171,79 Unit Price incl. VAT
6
SPRING WASHER; .406 X 1.25 X .125
7556490
$9,44 Unit Price incl. VAT
7
BEARING-.7874X1.6535X.4724 NTN
3514384
3515142
$34,64 Unit Price incl. VAT
7
SUSPENSION RAIL IDLER WHEEL 6.38 IN.
1590512
$72,96 Unit Price incl. VAT
7
RETAINING RING
7710444
$15,74 Unit Price incl. VAT
8
SPACER; IDLER
5432535
$20,99 Unit Price incl. VAT
9
IDLER SPACER; LONG
5333285
$20,99 Unit Price incl. VAT
10
SHAFT-IDLER M10X1.5THDX336 LG
5136745
$62,99 Unit Price incl. VAT
11
BUSHING
7555918
$3,14 Unit Price incl. VAT
12
CROSS SHAFT; MACHINED
5139172
$47,24 Unit Price incl. VAT
13
HEX FLANGE SCREW 10MM X 1.25MM X 250MM
7519327
$36,74 Unit Price incl. VAT
14
SPACER-FTA
5450572
9999999
Not Available
15
WASHER-30MM ODX 21MM ID X 1.5
7556483
$7,34 Unit Price incl. VAT
16
SHAFT-FTA LWT LOWER
5142500
$52,49 Unit Price incl. VAT
17
WSHR-10.4X28.58X2.4 ZOD
7556563
$6,29 Unit Price incl. VAT
18
WSHR-.719X1.250X.065-Y
7556210
$7,34 Unit Price incl. VAT
19
WASHER 10.5 X 24 X 1.2446
7556545
$6,29 Unit Price incl. VAT
20
SHOCK CENTERING LIGHTWEIGHT SPACER
5450477
$15,74 Unit Price incl. VAT
21
SHAFT 17.45 X 214.77
5137312
$52,49 Unit Price incl. VAT
22
SFT-M10X1.5IDX17.47ODX220.1 LG
5136572
$52,49 Unit Price incl. VAT

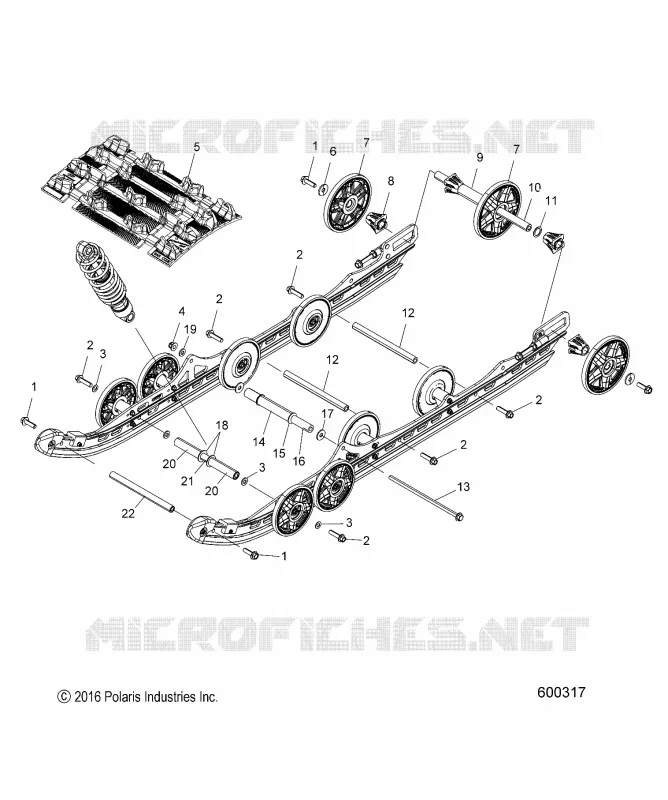

Find the detailed REAR SUSPENSION AND TRACK POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
