1
Engine displacement
700
2
Year
1996
3
Trim
SL 700 - B964066
4
Parts Catalog
FRONT STORAGE COMPARTMENT SL 700 B964066 AND INTL. SL 700 I964066 (4935633563A008)
5
Parts Diagram
Parts Catalog
DECALS SL 700 B964066 AND INTL. SL 700 I964066 (4935633563A007)
by
FUEL TANK SL 700 B964066 AND INTL. SL 700 I964066 (4935633563A009)
FRONT STORAGE COMPARTMENT SL 700 B964066 AND INTL. SL 700 I964066 (4935633563A008)
1
PIN; GROOVED; S.S.
7661630
9999999
Not Available
2
CUSHION; VIBRATION
5810570
9999999
Not Available
3
WASHER WEAR
5431426
Not Available
4
SPRING;COMPRESSION
7041275
9999999
Not Available
5
KNOB DOOR COMP LSR BLUE
5431383217
Not Available
6
DOOR COMPART LSR.BLUE
5431324217
Not Available
7
WASHER; LOCK; S.S.
7555838
9999999
Not Available
8
BOLT; S.S.(10)
7515121
9999999
Not Available
9
HINGE ASM;COMPARTMENT
2635012
9999999
Not Available
10
BOLT; S.S.
7515365
9999999
Not Available
11
WASHER; FLAT; S.S.
7555831
9999999
Not Available
12
NUT HEX S.S.(10)
7542335
Not Available
13
CAP FIRE EXT. YELLOW
5431398053
Not Available
14
PAD;FOAM;FIRE EXT.
5810799
9999999
Not Available
15
LID BCKT FR.STORAGE
5431489
9999999
Not Available
16
SEALFR.STORAGE BKT.
5521252
9999999
Not Available
17
WASHER; FLAT; S.S.(10)
7555839
9999999
Not Available
18
BOLT
7515127
9999999
Not Available
19
BUCKET;FR.STORAGE
5431394
9999999
Not Available
20
CLIP
5240187
9999999
Not Available
21
BOX TOOL
5431508
9999999
Not Available
22
HOOK; D;SST/SS;(10)
5224472
9999999
Not Available
23
STRAP
5430621
9999999
Not Available
24
RIVET (10)
7621478
9999999
Not Available
25
BOLT(10)
7515130
9999999
Not Available
26
RETAINER DOOR SUPPORT
5222782
9999999
Not Available
27
SUPPORT DOOR COMPART.
5224471
9999999
Not Available
28
SPRING;DOOR SUPPORT
7042038
9999999
Not Available
29
SCREW(10)
7512049
9999999
Not Available
30
WASHER; FLAT; S.S.
7555837
9999999
Not Available
31
BAFFLE AIR INTAKE
5431546
9999999
Not Available

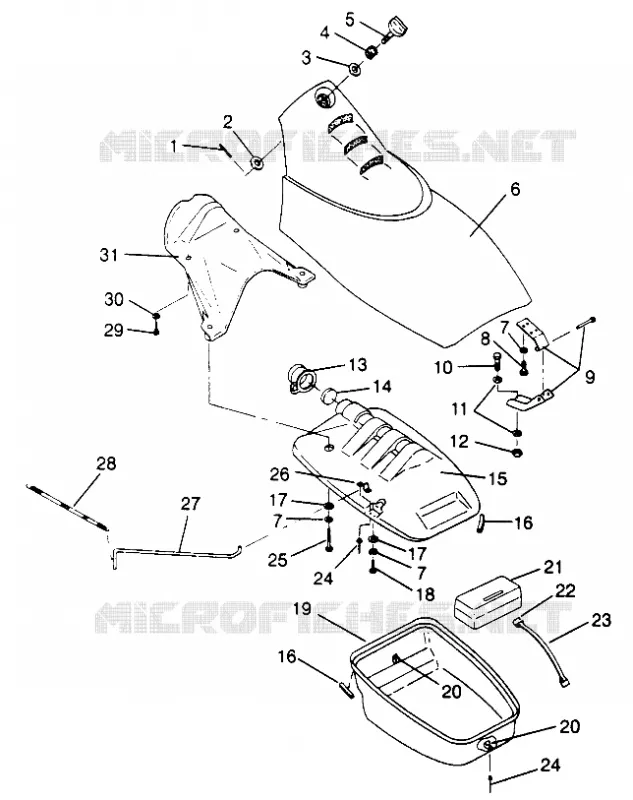

Find the detailed FRONT STORAGE COMPARTMENT SL 700 B964066 AND INTL. SL 700 I964066 (4935633563A008) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
