1
Engine displacement
700
2
Year
1996
3
Trim
SL 700 - B964066
4
Parts Catalog
DECALS SL 700 B964066 AND INTL. SL 700 I964066 (4935633563A007)
5
Parts Diagram
Parts Catalog
DRAIN SL 700 B964066 AND INTL. SL 700 I964066 (4935633563C010)
by
FRONT STORAGE COMPARTMENT SL 700 B964066 AND INTL. SL 700 I964066 (4935633563A008)
DECALS SL 700 B964066 AND INTL. SL 700 I964066 (4935633563A007)
1
DECAL LH COMP.DOOR
7075459
9999999
Not Available
2
DECAL LH LION HEAD
7075461
9999999
Not Available
3
LABEL U.S.A.
7073024
9999999
Not Available
4
DECAL LH SIDE WALL
7075463
9999999
Not Available
5
DECAL RH SL 700
7075466
9999999
Not Available
6
DECAL R.SAFETY/WARN.
7073415
Not Available
7
DECALCAPSIZE CAUTION
7073865
9999999
Not Available
8
DECAL LH RUBRAIL BTM.
7075469
9999999
Not Available
9
DECAL LH RUBRAIL TOP
7075467
9999999
Not Available
10
DECAL RH LION HEAD
7075462
9999999
Not Available
11
DECAL;FIRE EXTINGUISHER
7073467
9999999
Not Available
12
DECAL RH COMP.DOOR
7075460
9999999
Not Available
13
DECAL WARNING REF.
7073466
Not Available
14
DECAL FUEL INLET
7075458
9999999
Not Available
15
DECAL RH RUBRAIL TOP
7075468
9999999
Not Available
16
DECAL RH RUBRAIL BTM.
7075470
9999999
Not Available
17
DECAL LH #SL 700#
7075465
Not Available
18
DECAL RH SIDE WALL
7075464
9999999
Not Available
19
DECAL;FUEL SHUTOFF
7074639
9999999
Not Available
20
DECAL DASH WARN.(SL650)
7074913
Not Available
20
DECAL DASH FOGGER(SL700)
7075742
9999999
Not Available

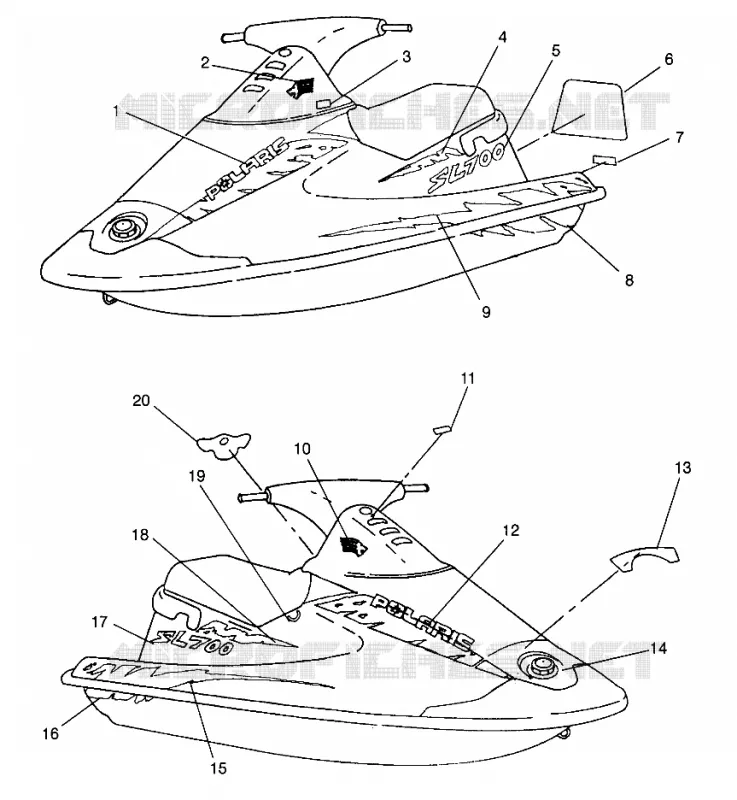

Find the detailed DECALS SL 700 B964066 AND INTL. SL 700 I964066 (4935633563A007) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
