1
Engine displacement
1000
2
Year
2016
3
Trim
GENERAL 1000 EPS
4
Parts Catalog
FRONT SUSPENSION CONTROL ARMS
5
Parts Diagram
Parts Catalog
STEERING
by
FRONT SUSPENSION HUB
FRONT SUSPENSION CONTROL ARMS
1
1
2
2
3
4
5
6
7
8
9
9
10
10
11
12
13
1
CONTROL ARM WELD; FRONT; LOWER; LEFT
1021416133
Not Available
1
WELD-CTRL ARM;LWR;FRT;LH;60;BL
1021416458
Not Available
2
WELD-CTRL ARM;LWR;FRT;RH;60;BL
1021417458
Not Available
2
CONTROL ARM WELD; FRONT; LOWER; RIGHT
1021417133
Not Available
3
SEALED PIVOT CAP ASSEMBLY; 10 MM
1543611
$10,49 Unit Price incl. VAT
4
SHORT PIVOT SHAFT
5139966
5144658
$10,49 Unit Price incl. VAT
5
STANDARD SUSPENSION BUSHING; 10 MM
5452233
$5,24 Unit Price incl. VAT
6
SCREW M10 X 1.25-6G
7519043
$17,84 Unit Price incl. VAT
7
NYLOC NUT
7547333
$3,14 Unit Price incl. VAT
8
WASHER
7556153
$3,66 Unit Price incl. VAT
9
CONTROL ARM WELD FRT UPR LEFT 60 BR WHT
1021418133
Not Available
9
CONTROL ARM WELD UPR FRT LEFT 60 MT BLK
1021418458
Not Available
10
CONTROL ARM WELD FRT UPR RIGHT 60 MT BLK
1021419458
Not Available
10
CONTROL ARM WELD FRT UPR RIGHT BR WHT
1021419133
Not Available
11
PIVOT TUBE; 29.2 MM
5138276
9999999
Not Available
12
CONTROL BUSHING ARM; IGUS
5450095
$4,19 Unit Price incl. VAT
13
HEX FLANGE SCREW 10 MM X 1.25 MM X 55 MM
7519285
$4,19 Unit Price incl. VAT

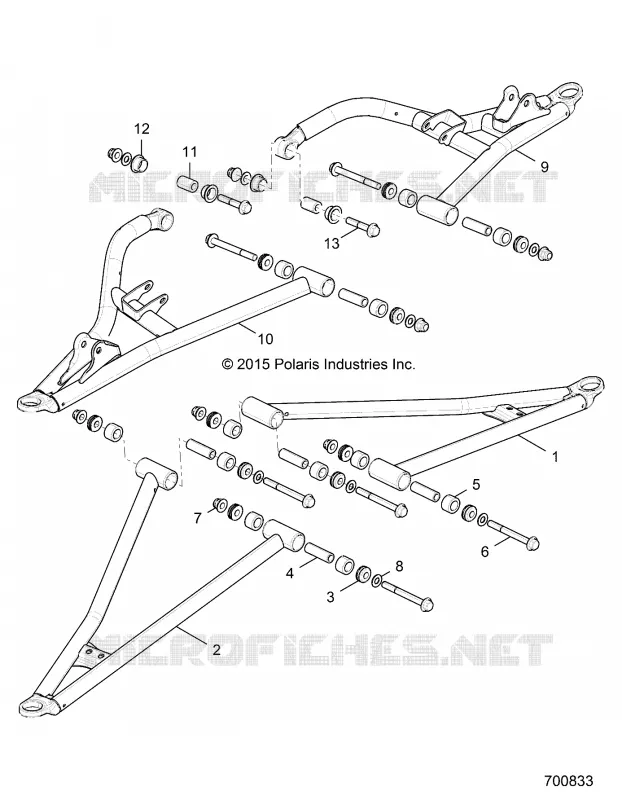

Find the detailed FRONT SUSPENSION CONTROL ARMS POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
