1
Engine displacement
500
2
Year
2003
3
Trim
SPORTSMAN 6X6 - A03CL50AA
4
Parts Catalog
GEARCASE MOUNTING
5
Parts Diagram
Parts Catalog
REAR SWING ARM SHOCK
by
ELECTRICAL
GEARCASE MOUNTING
1
2
3
3
3
4
5
6
6
6
6
7
7
8
9
10
11
11
11
12
1
SCREW
7517632
$10,49 Unit Price incl. VAT
2
BRKT X MISSION MT BLK
5242456067
Not Available
3
NUT FLANGE
7542423
$7,34 Unit Price incl. VAT
4
CABLE TIE
7080138
$5,24 Unit Price incl. VAT
5
Line Vent
8360009700
Not Available
6
FLAT WASHER
7555806
$1,56 Unit Price incl. VAT
7
SCREW
7512492
$2,09 Unit Price incl. VAT
8
SCREW
7517646
$13,64 Unit Price incl. VAT
9
SPROCKET; 12 TOOTH
3221044
$83,99 Unit Price incl. VAT
10
SNAP RING
7710434
$7,34 Unit Price incl. VAT
11
SHIM; .030
5211517
9999999
Not Available
11
SHIM
5211065
9999999
Not Available
11
SPACER; .020
5210764
9999999
Not Available
12
SCREW
7517640
9999999
Not Available

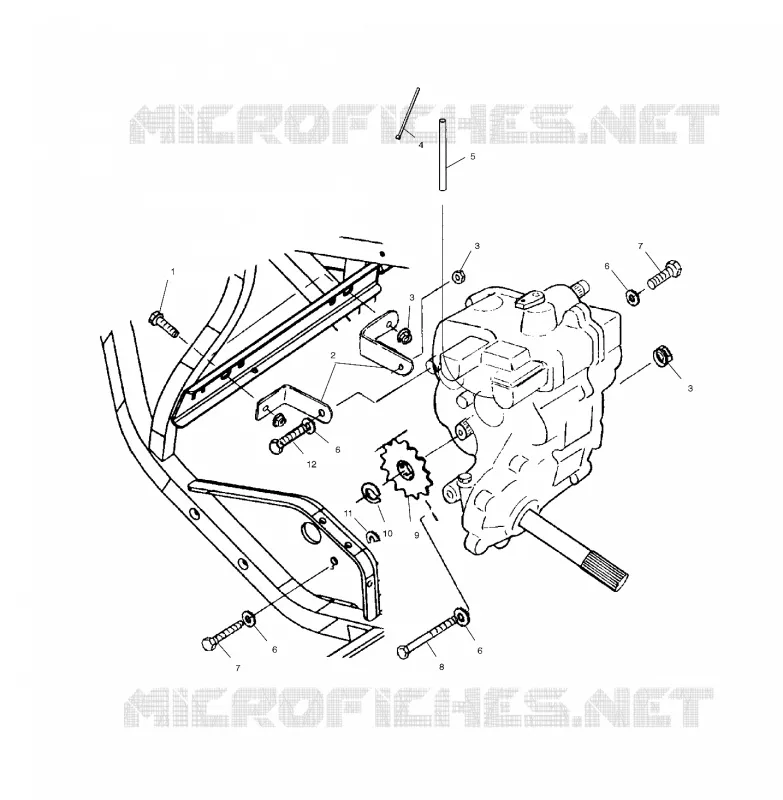

Find the detailed GEARCASE MOUNTING POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
