Engine displacement
500
2
Year
2001
3
Trim
SCRAMBLER 500 2X4 - A01BA50AB
4
Parts Catalog
ENGINE MOUNTING
5
Parts Diagram
Parts Catalog
OIL TANK
by
FUEL TANK
ENGINE MOUNTING
1
NUT
7547108
$9,44 Unit Price incl. VAT
2
WASHER
7555823
$7,34 Unit Price incl. VAT
3
CABLE GND-ENGINE
4010132
9999999
Not Available
4
BOLT
7512315
$9,44 Unit Price incl. VAT
5
MOUNT RUBBER TOP
3110044
3024012
$83,99 Unit Price incl. VAT
6
BRKT ENG.MT TOP BLK
5242674067
Not Available
7
SPRING LOCK WASHER
7552901
$2,09 Unit Price incl. VAT
8
BOLT
7512315
$9,44 Unit Price incl. VAT
9
HOSE CLAMP
7080003
$2,09 Unit Price incl. VAT
10
FUEL LINE; 600 CM
8450040600
Not Available
11
FUEL LINE; 1/4 ID
84500031525
Not Available
12
SCREW AND WASHER
3084205
9999999
Not Available
13
MOUNT; RUBBER
3110032
9999999
Not Available
14
BRKT CARB.MOUNT BLK.
5242258067
Not Available
15
WASHER
7552605
9999999
Not Available
16
HEX NUT
7542105
$7,34 Unit Price incl. VAT
17
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
18
LINE FUEL 1/8 ID 600 CM.
8360009600
Not Available
19
SHEATH/FOIL LAM 58CM.
845008058
Not Available
20
MOUNT ENGINE REAR 500 BLK
1013222067
Not Available
21
NUT-3/8-16 FLG LOCK-Y
7547089
9999999
Not Available
22
MOUNT RUBBER FRONT
3110046
9999999
Not Available
23
FLAT WASHER
7555815
$7,34 Unit Price incl. VAT
24
CLUTCH INTAKE BOOT
5410421
9999999
Not Available
25
NARROW BAND CLAMP
7080511
$9,44 Unit Price incl. VAT
26
BUSHING
5430261
$13,64 Unit Price incl. VAT
27
WASHER
5210748
$7,34 Unit Price incl. VAT
28
WASHER LOCK
7575202
$9,44 Unit Price incl. VAT
29
BOLT
7512566
9999999
Not Available
30
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
31
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
32
MOUNT FR.ENGINE BLK.
1040688067
Not Available
33
SCREW
7515398
9999999
Not Available
34
NYLOK NUT
7542324
$1,56 Unit Price incl. VAT
35
MOUNT MOTOR
3110067
9999999
Not Available
36
HOSE CLAMP
7080474
$13,64 Unit Price incl. VAT
37
SPRING LOCK WASHER
7552603
$1,56 Unit Price incl. VAT
38
BOLT
7515438
$9,44 Unit Price incl. VAT
39
CLAMP HOSE 1.25 WORM DRIVE
7080696
$10,49 Unit Price incl. VAT
40
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
41
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
42
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
43
MANIFOLD BLK.
1260994029
Not Available
44
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
45
ENG.EH50PLE-04
3085822
9990000
Not Available
46
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available

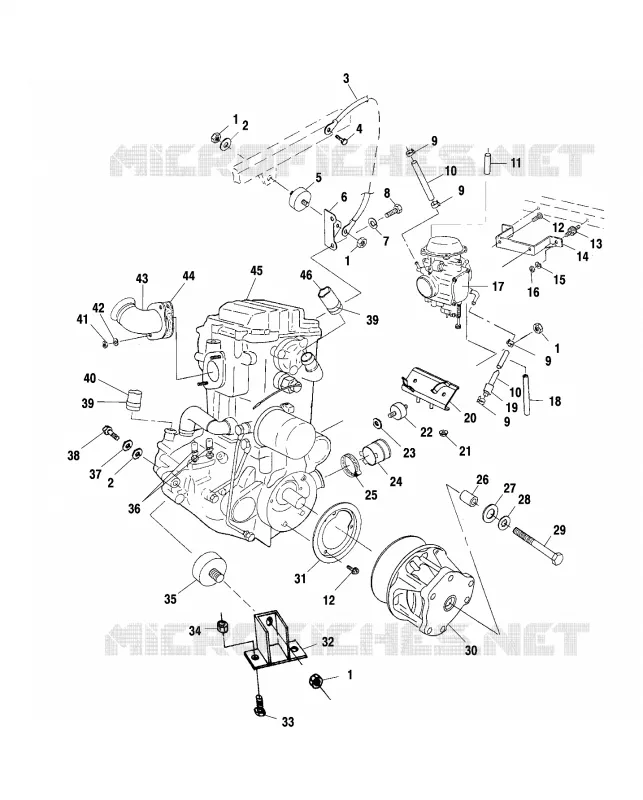

Find the detailed ENGINE MOUNTING POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
