REAR SUSPENSION for POLARIS SPORTSMAN 850 WV - A14YN8EAJ/EAT from 2014

REAR SUSPENSION

1

HEX HEAD FLANGE BOLT 10MM X 1.5MM X140MM

7518467

$10,49 Unit Price incl. VAT

2

HEX FLANGE NUT; 10 MM X 1.5 MM

7547313

$2,09 Unit Price incl. VAT

3

STANDARD BUSHING; ORV

5439874

$4,19 Unit Price incl. VAT

4

ARM CONTROL; FRONT; LOWER; LEFT; MT BLK

1019810458

Not Available

4

WELD-CNTRLARM LWR RR RH LT BLK

1018218458

Not Available

5

FITTING LUBRICATION THREADED(1

7080433

$2,09 Unit Price incl. VAT

6

A-ARM SHAFT

5137346

$31,49 Unit Price incl. VAT

7

SCR-M10X1.5X90 HX FLG ZOD

7519016

$11,54 Unit Price incl. VAT

8

CONTROL ARM; REAR; LOWER; LEFT; BLACK

1018846458

Not Available

8

CONTROL ARM; REAR; LOWER; RIGHT; BLACK

1018847458

Not Available

9

HEX HEAD FLANGE BOLT; 1.5 MM X 130 MM

7518675

$10,49 Unit Price incl. VAT

10

PIVOT SHAFT; 104.9 MM

5137590

$16,79 Unit Price incl. VAT

11

LOWER CONTROL ARM A ARM SHAFT

5136473

5145086

$68,24 Unit Price incl. VAT

12

CONTROL ARM BUSHING; LOWER; .75 IN

5437651

$12,59 Unit Price incl. VAT

13

PIVOT SHAFT; 210.27 MM; ZINC YELLOW

5137594

$16,79 Unit Price incl. VAT

14

A-ARM BUSHING; LONG; 102.36 MM

5436973

$9,44 Unit Price incl. VAT

15

HEX FLANGE SCREW 10 MM X 1.5 MM X 250 MM

7519198

$41,99 Unit Price incl. VAT

16

STANDARD BUSHING; ORV

5439874

$4,19 Unit Price incl. VAT

17

ZERK FITTING

7080510

$10,49 Unit Price incl. VAT

18

BRACE-LCA FRONT BLK

5257067067

Not Available

19

BRACE-LCA REAR BLK

5257068067

Not Available

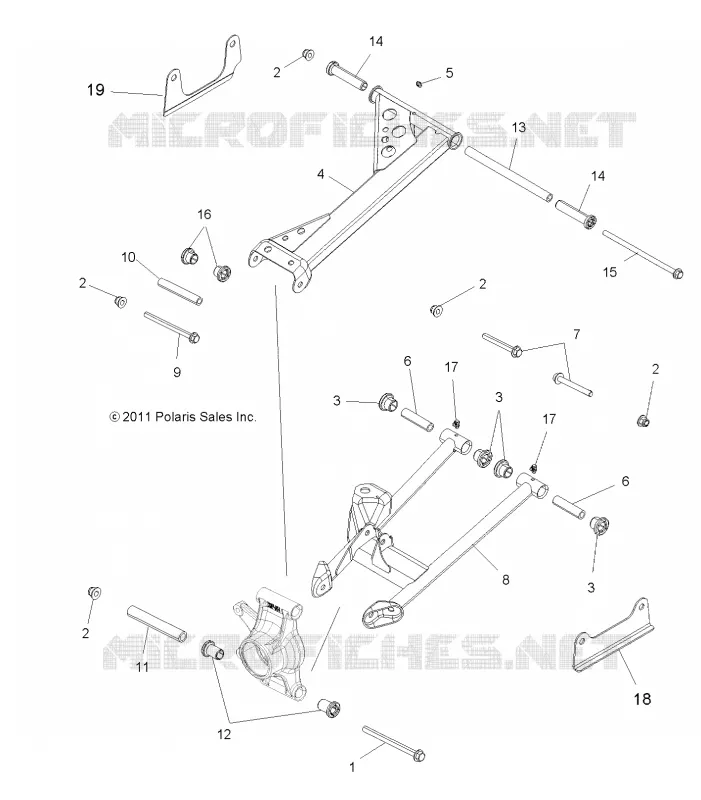

Find the detailed REAR SUSPENSION POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
