Engine displacement
500
2
Year
2002
3
Trim
ATV PRO 500 4X4 PPS - C02CD50AC
4
Parts Catalog
ENGINE MOUNTING
5
Parts Diagram
Parts Catalog
REAR RACK MOUNTING
by
FUEL TANK AND CARBURETOR MOUNTING
ENGINE MOUNTING
1
2
3
3
3
3
3
3
4
4
4
4
5
6
7
8
8
9
10
11
12
13
14
15
16
17
18
18
19
19
20
21
22
23
23
24
25
26
27
28
29
29
30
31
32
33
34
35
36
37
37
38
39
40
40
41
42
43
44
45
46
1
1
2
3
4
5
6
6
7
7
8
8
8
8
8
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
1
ASM. PUMP FUEL
3085275
2520227
$146,99 Unit Price incl. VAT
2
NYLOK NUT
7546601
$2,09 Unit Price incl. VAT
3
HOSE CLAMP
7080003
$2,09 Unit Price incl. VAT
4
FUEL LINE; 600 CM
8450040600
Not Available
5
SCREW
3130535
$13,64 Unit Price incl. VAT
6
COVER
3130511
$83,99 Unit Price incl. VAT
7
O-RING
3130512
9999999
Not Available
8
FUEL LINE; 1/4 ID
84500031525
Not Available
9
FITTING TEE
7052075
$17,84 Unit Price incl. VAT
10
LINE FUEL 1/8 ID 600 CM.
8360009600
Not Available
11
SMALL IN-LINE FILTER
2530009
$12,59 Unit Price incl. VAT
12
ENG.(S.B.)EH50PLE-01
3085556
9990000
Not Available
13
GUIDE CABLE
3130543
$62,99 Unit Price incl. VAT
14
1/4 TURN THROTTLE CABLE
7080967
$104,99 Unit Price incl. VAT
15
O-RING
5410193
$7,34 Unit Price incl. VAT
16
MOUNT ENGINE TOP BLK
5242936067
Not Available
17
CABLE GND-ENGINE
4010132
9999999
Not Available
18
SPRING LOCK WASHER
7552901
$2,09 Unit Price incl. VAT
19
BOLT
7512315
$9,44 Unit Price incl. VAT
20
WASHER
7555823
$7,34 Unit Price incl. VAT
21
SPACER-MOTOR MNT TOP
5132007
9999999
Not Available
22
MOUNT-RUBBER TOP 60 DURO
3021045
9999999
Not Available
23
NUT
7547108
$9,44 Unit Price incl. VAT
24
FLANGE NUT
3083649
9999999
Not Available
25
CABLE BATT/ENG. BLK.
4010095
9999999
Not Available
26
CABLE; SOL/STARTER
4010093
$89,24 Unit Price incl. VAT
27
CLUTCH INTAKE BOOT
5410421
9999999
Not Available
28
NARROW BAND CLAMP
7080511
$9,44 Unit Price incl. VAT
29
FLAT WASHER
7555815
$7,34 Unit Price incl. VAT
30
MOUNT RUBBER REAR 60 DURO
3021119
9999999
Not Available
31
COIL ASMIGNITION
3084690
9999999
Not Available
32
CDI-SYSTEM
3086982
9999999
Not Available
33
SOLENOID
3085521
4011335
$115,49 Unit Price incl. VAT
34
SCREW AND WASHER
3084205
9999999
Not Available
35
BOLT AND WASHER ASSEMBLY
3082038
9999999
Not Available
36
FRICTION CHOKE CABLE; 40 IN
7081008
$152,24 Unit Price incl. VAT
37
SCREW
7515417
9999999
Not Available
38
MOUNT RUBBER TOP
3110044
3024012
$83,99 Unit Price incl. VAT
39
MOUNT LOW.FR.ENGINE BLK.
5242818067
Not Available
40
LOCK WASHER
3080530
9999999
Not Available
41
NUT
3080285
9999999
Not Available
42
MANIFOLD BLK
1260978029
Not Available
43
EXHAUST GASKET ASSEMBLY
3085075
9999999
Not Available
44
SHEATH-FOIL LAMINATED;5/8X18CM
845008018
Not Available
45
RIVET 3/16 X .402
7621432
$2,09 Unit Price incl. VAT
46
CLAMP CABLE
7080499
$10,49 Unit Price incl. VAT

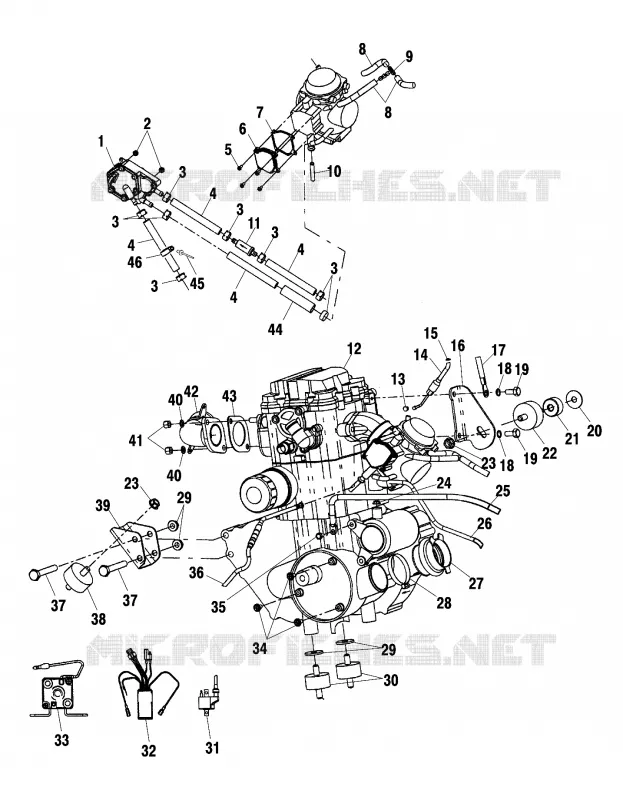

Find the detailed ENGINE MOUNTING POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
