1
Engine displacement
500
2
Year
2013
3
Trim
SPORTSMAN FOREST TRACTOR 500 - A13MN50ET/EX
4
Parts Catalog
WHEELS, REAR TIRE AND BRAKE DISC
5
Parts Diagram
Parts Catalog
REAR SUSPENSION
by
DRIVE TRAIN, MAIN GEARCASE
WHEELS, REAR TIRE AND BRAKE DISC
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
1
1
1
1
1
1
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
9
9
10
11
12
13
14
14
15
15
1
TIRE-RR 25X12.5-12 BCLAW EMARK
5413112
9999999
Not Available
2
REAR RIM; GS BLK
1520457067
Not Available
3
HUB DUST COVER
5413427
$52,49 Unit Price incl. VAT
4
CASTLE NUT; 18 MM X 1.5 MM
7547337
$3,66 Unit Price incl. VAT
5
COTTER PIN
7661404
$9,44 Unit Price incl. VAT
6
CONE WASHER
7555796
$14,69 Unit Price incl. VAT
7
REAR WHEEL HUB ASSEMBLY MACHINED
5135113
5143629
$157,49 Unit Price incl. VAT
8
PRESS FIT STUD
7518378
$3,14 Unit Price incl. VAT
9
RETAINING RING
7710440
$18,89 Unit Price incl. VAT
10
WHEEL BEARING; 40 MM X 74 MM X 40 MM
3514635
$73,49 Unit Price incl. VAT
11
WHEEL CARRIER BEARING; MACHINED
5135563
$121,79 Unit Price incl. VAT
12
BOLT-3/8-16X3/4-HX/CP/LK-GR5-Y
7518903
$7,34 Unit Price incl. VAT
13
REAR BRAKE DISC 8.625 IN.
5248250
$141,74 Unit Price incl. VAT
14
RIM VALVE
1525017
$12,59 Unit Price incl. VAT
15
FLANGE NUT
7547237
$4,19 Unit Price incl. VAT

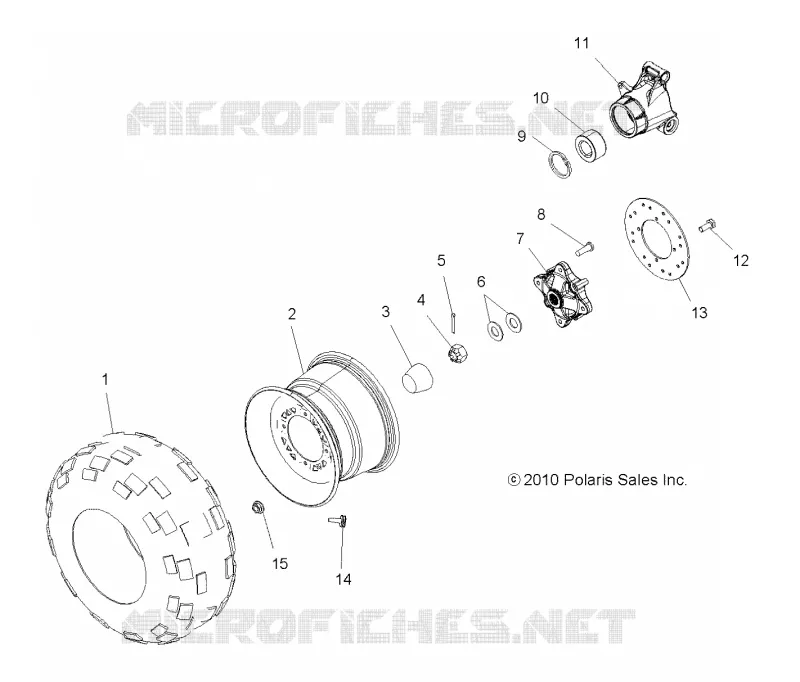

Find the detailed WHEELS, REAR TIRE AND BRAKE DISC POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
