1
Engine displacement
500
2
Year
2013
3
Trim
SPORTSMAN FOREST TRACTOR 500 - A13MN50ET/EX
4
Parts Catalog
FRONT BRAKE CALIPER
5
Parts Diagram
Parts Catalog
BODYWORK
by
REAR BRAKE CALIPER
FRONT BRAKE CALIPER
-
-
1
2
3
4
5
6
7
8
9
10
11
11
12
-
BRAKE CALIPER; FRONT; LEFT; 1.19 MM
1911540
$488,24 Unit Price incl. VAT
-
BRAKE CALIPER; FRONT; RIGHT; 1.19 MM
1911541
$488,24 Unit Price incl. VAT
1
PISTON AND SEAL KIT
1930665
$104,99 Unit Price incl. VAT
2
BRAKE BOOT KIT; FRONT
1930642
$20,99 Unit Price incl. VAT
3
FRONT BRAKE PAD KIT ASSEMBLY
2202412
$98,16 Unit Price incl. VAT
4
SQUARE MOLDED RING; .103 X .134
5410780
$19,94 Unit Price incl. VAT
5
SQUARE MOLDED RING; .094
5410779
$19,94 Unit Price incl. VAT
6
PISTON-BRAKE LONG
5132294
1930665
$104,99 Unit Price incl. VAT
7
SCR-M10X1.0X8 SOC SET-OD
7518863
$17,84 Unit Price incl. VAT
8
CALIPER MOUNT ASSEMBLY
1910513
$99,74 Unit Price incl. VAT
9
PIN BUSHING BOOT
5412505
$6,29 Unit Price incl. VAT
10
SCR-M7X1.0 BLEEDER OLIVE D
7081343
$10,49 Unit Price incl. VAT
11
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
12
PIN SEAL BOOT
5412506
$6,29 Unit Price incl. VAT

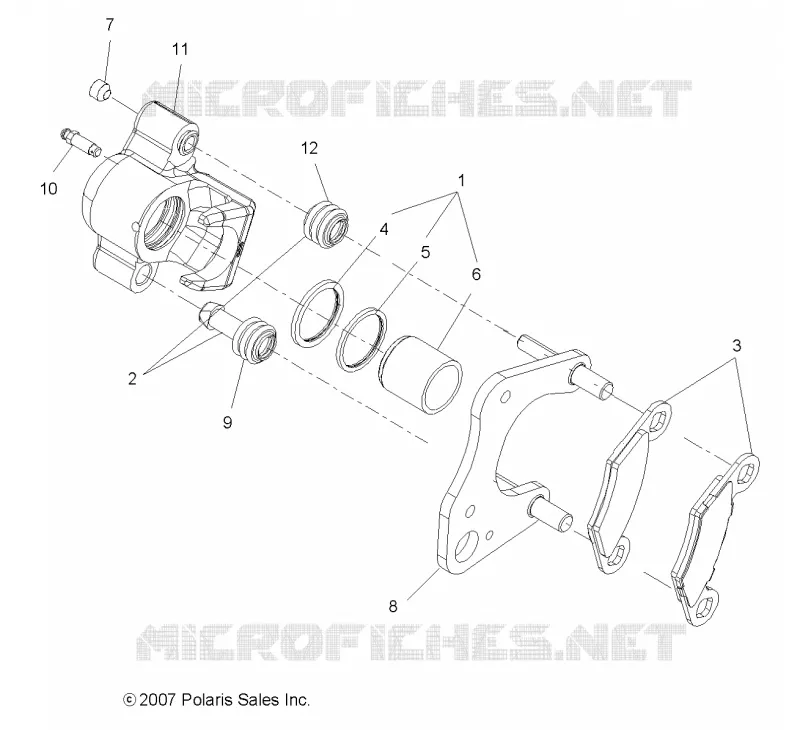

Find the detailed FRONT BRAKE CALIPER POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
