1
Engine displacement
700
2
Year
2002
3
Trim
INT'L VIRAGE - W025197I
4
Parts Catalog
PROPULSION
5
Parts Diagram
Parts Catalog
FUEL SYSTEM
by
REVERSE
PROPULSION
1
1
2
3
3
3
4
5
6
6
7
8
9
10
10
11
12
13
14
15
16
17
18
19
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
1
1
2
3
3
3
4
5
6
6
7
8
9
10
10
11
12
13
14
15
16
17
18
19
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
1
2
3
4
5
5
6
6
6
7
8
9
10
11
12
13
14
15
16
17
17
17
17
17
17
18
18
19
19
19
19
20
20
21
22
22
23
24
25
25
1
NUT HEX S.S.(10)
7542455
9999999
Not Available
2
BRKT STEERING CABLE NUT
5244556
9999999
Not Available
3
STUD MOUNT PUMP 1.38 INT.
5132355
9999999
Not Available
4
SEAL WATER PIPE
5411107
9999999
Not Available
5
HSG PUMP W/O RING INT STUD
5131573
9999999
Not Available
6
O RING;(10)
5410735
9999999
Not Available
7
PIPE WATER ENG.(X-PUMP)
5432269
9999999
Not Available
8
STATOR PUMP
5130983
9999999
Not Available
9
SPACER
5010294
9999999
Not Available
10
BEARING
3514008
9999999
Not Available
11
SEAL BRG STATOR
3610043
9999999
Not Available
12
SPACER IMPELLER
5010295
9999999
Not Available
13
IMPELLER NUJET 4.7
5132372
9999999
Not Available
14
SEAL
5411644
9999999
Not Available
15
EXTENSION PUMP
5131196
9999999
Not Available
16
SCREW(10)
7522019
9999999
Not Available
17
ANODE-ZINC
5630598
9999999
Not Available
18
STUD MOUNT PUMP LONG INT.
5132111
9999999
Not Available
19
WASHER FLAT S.S.(10)
7555853
9999999
Not Available
20
WASHER
7555966
$4,15 Unit Price incl. VAT
21
WASHER; LOCK; S.S.
7552607
9999999
Not Available
22
NUT HEX S.S.
7542454
9999999
Not Available
23
O-RING PUMP HSG/HULL
5410652
9999999
Not Available
24
O-RING(10)
5410817
9999999
Not Available
25
SEALTAILCONE
5811984
9999999
Not Available
26
SCREEN ENG.INLET
5431523
9999999
Not Available
27
NOZZLE STEERING
5130999
9999999
Not Available
28
BOLT S.S.
7515366
9999999
Not Available
29
COLLAR
5130938
9999999
Not Available
30
WASHER LOCK S.S.
7552610
9999999
Not Available
31
WASHER FLAT S.S.(10)
7555835
9999999
Not Available
32
BRG STRG.NOZZLE
5431518
9999999
Not Available
33
BOLT
7515389
9999999
Not Available
34
NOZZLE STAT. 0X4 WEDGE
5131569
9999999
Not Available
35
WEDGE PUMP 0X4 MOLDED
5432841
9999999
Not Available
36
SCREW
7512064
9999999
Not Available
37
CONE PUMP
5431519
9999999
Not Available
38
O-RING(10)
5410819
9999999
Not Available
39
SHAFT-STUB
5132674
9999999
Not Available
40
O-RING(10)
5410818
9999999
Not Available

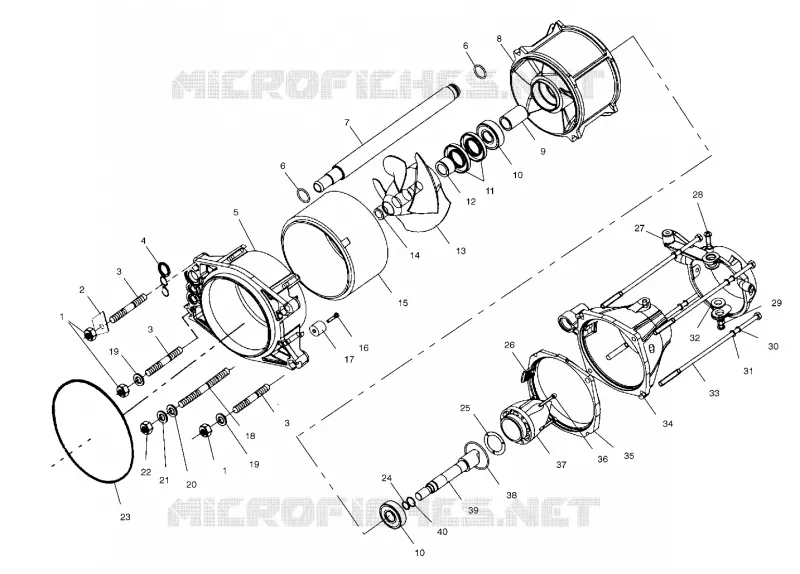

Find the detailed PROPULSION POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
