REAR TORQUE ARM (M-10) for POLARIS 700 CLASSIC from 2006

REAR TORQUE ARM (M-10)

1

BOLT

7515485

9999999

Not Available

2

WASHER .385 X 88 X .075

7556242

$4,19 Unit Price incl. VAT

3

WELD-CARRIER WHEEL BRKTBLK

1542219067

Not Available

4

BEARING

3514303

$20,99 Unit Price incl. VAT

4

RETAINING RING

7718407

$9,44 Unit Price incl. VAT

4

CARRIER WHEEL ASSEMBLY

1590343

$141,74 Unit Price incl. VAT

5

WASHER .391X1.25X.105-M

7556157

9999999

Not Available

6

NYLOK NUT

7542451

$2,09 Unit Price incl. VAT

7

NYLOK NUT

7547263

$6,29 Unit Price incl. VAT

8

SCREW

7515415

9999999

Not Available

9

SLEEVE .385 X .560 X 1.24

5333905

$27,29 Unit Price incl. VAT

10

CAP-SHOCK ENDM10TOP

5436400

9999999

Not Available

11

SHOCK-R/T M-10

7043190

9990000

Not Available

12

CAP-SHOCK ENDM10BOTTOM

5436401

9999999

Not Available

13

SHAFT; LOWER

5133093

9999999

Not Available

14

LUBRICATION FITTING

7080424

$9,44 Unit Price incl. VAT

15

SHAFT-RTA M10 UPPER

5135277

9999999

Not Available

16

RTA M10 BLK

1542124067

Not Available

17

RETAINER-SPRING M10 RTS UPPER

5134921

9999999

Not Available

18

SPRING-COM .375R 5.20 273# BLK

7042207067

Not Available

19

BUSHING-OVERLOAD M10 RTS

5436109

9999999

Not Available

20

RETAINER-SPR M10 RTS MID .25

5135077

9999999

Not Available

21

SPRING-COM .394R 5.46 629# BLK

7042206067

Not Available

22

SPRING-COM .515R 6.40 715# BLK

7042208067

Not Available

23

RETAINER-SPRING M10 RTS LOWER

5134780

9999999

Not Available

24

COLLAR-SPRING SLOTTED

5133778

9999999

Not Available

25

COVER-SPRING NYLON M10 RTS

2683659

9999999

Not Available

26

CLAMP-HOSE 1-2DIA 5/16 WIDE SS

7081261

9999999

Not Available

27

PAD-RUBBER ADHESIVE 3/8X1-5/8

5812812

9999999

Not Available

28

DECAL-M-10 FOX RES

7173566

9999999

Not Available

29

FLAT WASHER

7555984

$4,19 Unit Price incl. VAT

30

LOCK WASHER

7552614

$3,14 Unit Price incl. VAT

31

SCR-7/16-14X2.00 HXCP-P80-GR5Y

7518261

$7,34 Unit Price incl. VAT

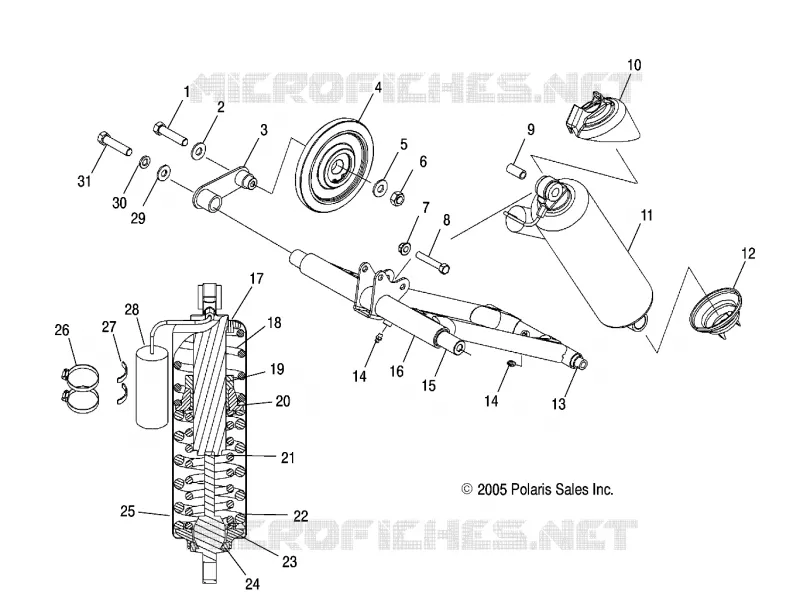

Find the detailed REAR TORQUE ARM (M-10) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
