1
Engine displacement
850
2
Year
2016
3
Trim
SPORTSMAN 850 HIGH LIFTER
4
Parts Catalog
DRIVE TRAIN, PROP SHAFT, REAR
5
Parts Diagram
Parts Catalog
DRIVE TRAIN, GEAR SELECTOR
by
DRIVE TRAIN, REAR GEARCASE INTERNALS
DRIVE TRAIN, PROP SHAFT, REAR
1
2
2
3
4
5
5
5
5
6
7
8
8
9
10
10
11
12
12
13
14
15
16
17
17
18
19
20
21
22
22
23
24
24
24
24
25
26
27
28
29
30
31
31
32
32
33
34
35
36
37
1
2
3
4
5
5
5
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
1
2
3
4
5
5
6
1
FLANGED SCREW
7515304
9999999
Not Available
1
REAR DRIVE SHAFT
1332493
$398,99 Unit Price incl. VAT
2
WASHER
7555716
$3,14 Unit Price incl. VAT
2
YOKE-FLANGEDN101QF-PNT
1332679
1332493
$398,99 Unit Price incl. VAT
3
BUSHING
5010192
$12,59 Unit Price incl. VAT
3
BAR SHAFT
1332680
9999999
Not Available
4
YOKE-N101QE-PNT
1332681
9999999
Not Available
4
DAMPENER
5410241
5412508
$9,44 Unit Price incl. VAT
5
BRKT LH SUPPORT RACK
5220899067
Not Available
5
NON-GREASE CROSS AND BEARING KIT
2202015
$101,84 Unit Price incl. VAT
5
BRKT RH SUPPORT RACK
5220901067
Not Available
6
BOLT M8 X 1.25 X 20
7519211
$4,19 Unit Price incl. VAT
6
SUPPORT FENDER; REAR; MEDIUM GLOSS BLACK
5220902067
Not Available
7
WASHER RUBBER
5410436
9999999
Not Available
8
NYLOK NUT
7542324
$1,56 Unit Price incl. VAT
9
FRAME SQUARE (ATV) [No Longer Available]
1040270067
Not Available
10
FLAT WASHER
7558402
$1,56 Unit Price incl. VAT
11
BOLT
7512329
$7,34 Unit Price incl. VAT
12
CAP; BUMPER; 4 WHL.
5430823
9999999
Not Available
13
DECAL F.SUSP.
7073455
Not Available
14
BUMPER FRONT
2670124067
Not Available
15
SCREW
7512399
9999999
Not Available
16
BRKT LOW F.BUMPER
2670126067
Not Available
17
BOLT
7512232
$2,09 Unit Price incl. VAT
18
GUARD ROCK
5211257067
Not Available
19
RIVET (10)
7661825
9999999
Not Available
20
TRIM FOOTREST
5431484
9999999
Not Available
21
FOOTPAD LH (ATV)
1040274
9999999
Not Available
22
RIVET; (MONOBOLT)
7661620
7661637
$2,09 Unit Price incl. VAT
23
PLUG RUBBER-HOLE .5DIA
5410012
9999999
Not Available
24
WASHER
7555827
$7,34 Unit Price incl. VAT
25
PIN; COTTER
7661103
9999999
Not Available
26
ROD;BRAKE LINKAGE
5224394
5224446
Not Available
27
SPRING
7042029
$10,49 Unit Price incl. VAT
28
PEDAL; BRAKE
1910045067
Not Available
29
PIN SPIRAL
7661416
9999999
Not Available
30
PEDAL FOOT
5130715067
Not Available
31
THRUST WASHER
7558702
$3,14 Unit Price incl. VAT
32
PEDAL PIVOT BUSHING
5431107
$16,79 Unit Price incl. VAT
33
COTTER PIN
7661401
$1,56 Unit Price incl. VAT
34
PLUG; FRAME
5810467
9999999
Not Available
35
REFLECTOR ASSEMBLY; RED
2670133
9999999
Not Available
36
GUARD CLUTCH OUTER
5222860067
Not Available
37
GUARD CLUTCH INNER
5211359067
Not Available

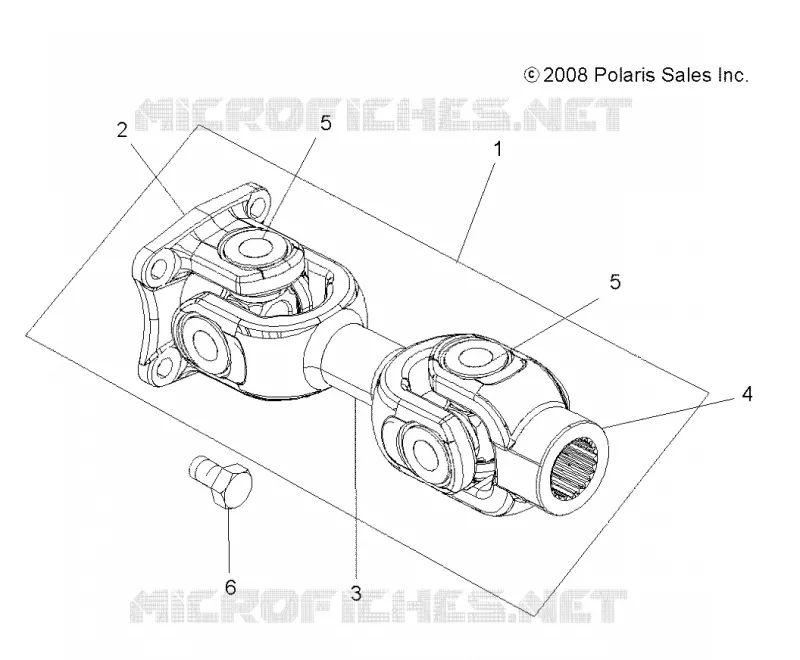

Find the detailed DRIVE TRAIN, PROP SHAFT, REAR POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
