Engine displacement
900
2
Year
2013
3
Trim
RZR 4 XP JAGGED X - R13XT9EAL
4
Parts Catalog
CRANKCASE
5
Parts Diagram
Parts Catalog
COOLING, WATERPUMP
by
ENGINE, CRANKSHAFT AND PISTON
CRANKCASE
1
2
3
3
3
4
5
6
7
8
8
9
9
10
11
12
13
14
15
1
1
KIT-CRANKCASE 1204591
2204941
9999999
Not Available
2
SCR-M8X1.25X50 HX/FL-Y
7517793
$10,49 Unit Price incl. VAT
3
PLUG-3/8 NPT;HX/SOC W/SEALANT
7052413
$8,39 Unit Price incl. VAT
4
PLUG-HEX SOCKET;1/4X18;SEALANT
7518835
$10,49 Unit Price incl. VAT
5
SUMP COVER
5137873
5143719
$204,74 Unit Price incl. VAT
6
PIN-DOWEL M6X10
5136879
5132835
$4,19 Unit Price incl. VAT
7
SOCKET PLUG; 12 MM X 1.5 MM
7052306
$31,49 Unit Price incl. VAT
8
HEX FLANGE SCREW; 6 MM X 35 MM
7518578
$7,34 Unit Price incl. VAT
9
SCR-M10X1.25X115MM HXFL 10.9
7519141
7521267
$25,19 Unit Price incl. VAT
10
SCREW
7519154
$13,64 Unit Price incl. VAT
11
SCREW
7519186
$10,49 Unit Price incl. VAT
12
SCREW
7519297
$7,34 Unit Price incl. VAT
13
COPPER WASHER
5812232
7556937
$6,29 Unit Price incl. VAT
14
SEAL FLANGE LUBE VITON
3610176
$57,74 Unit Price incl. VAT
15
DIVERTER-OIL DRAIN
5438214
5452616
$47,24 Unit Price incl. VAT

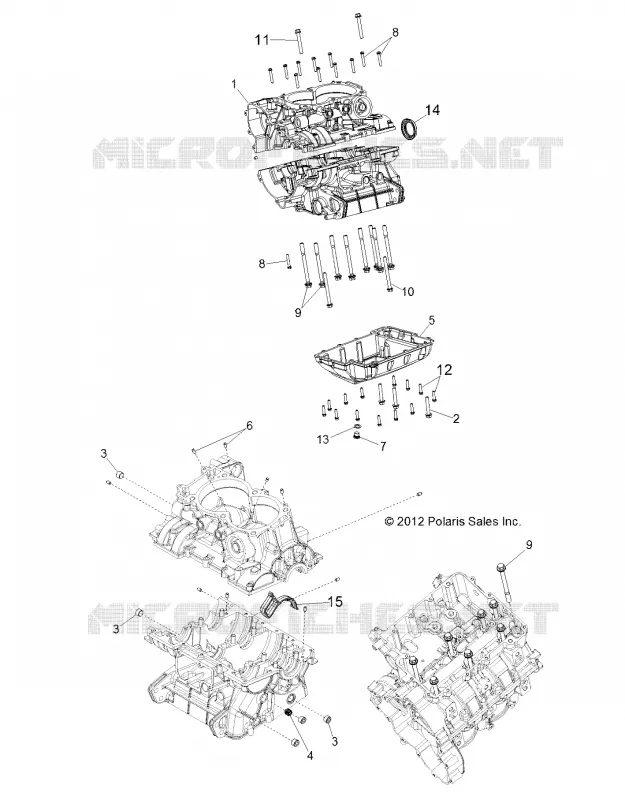

Find the detailed CRANKCASE POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
